51 22 180 Removing and installing/replacing cover on outside handle, left or right

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

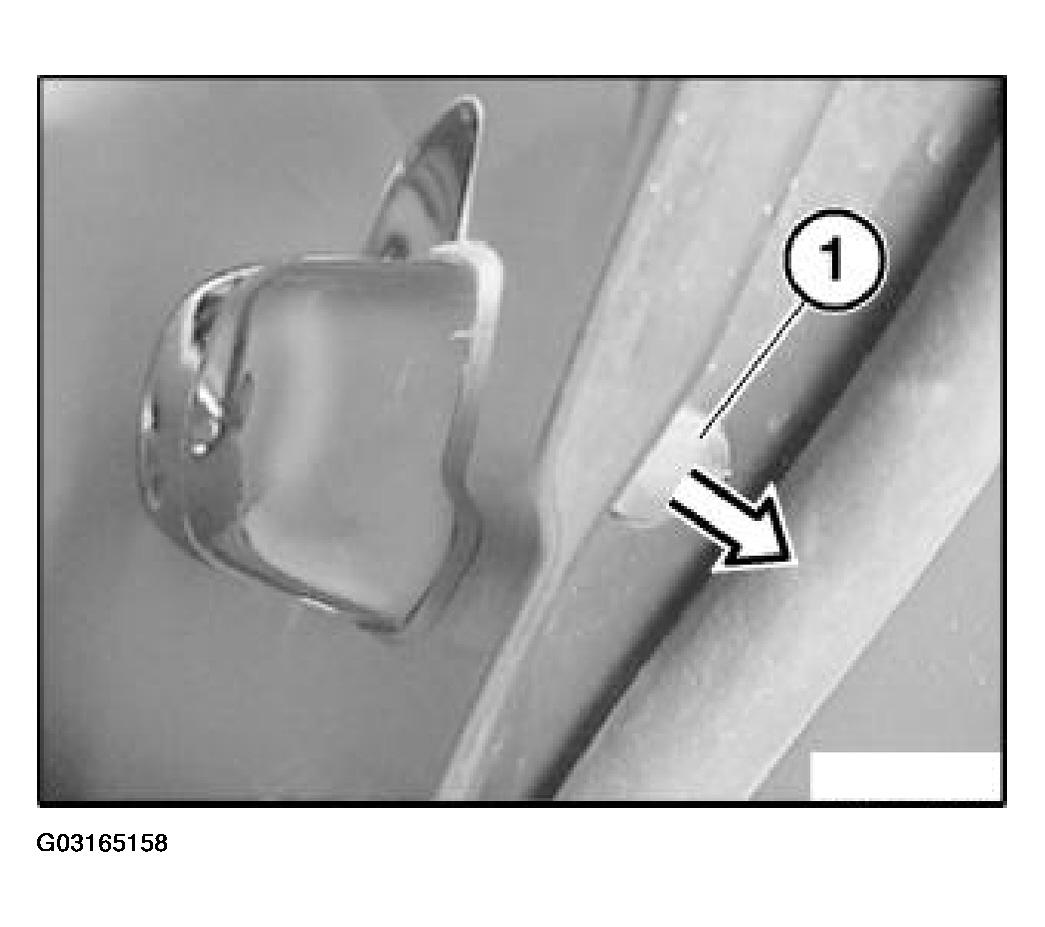

Lever out cap (1).

Fig 1: Levering Out Cap

Courtesy of BMW OF NORTH AMERICA, INC.

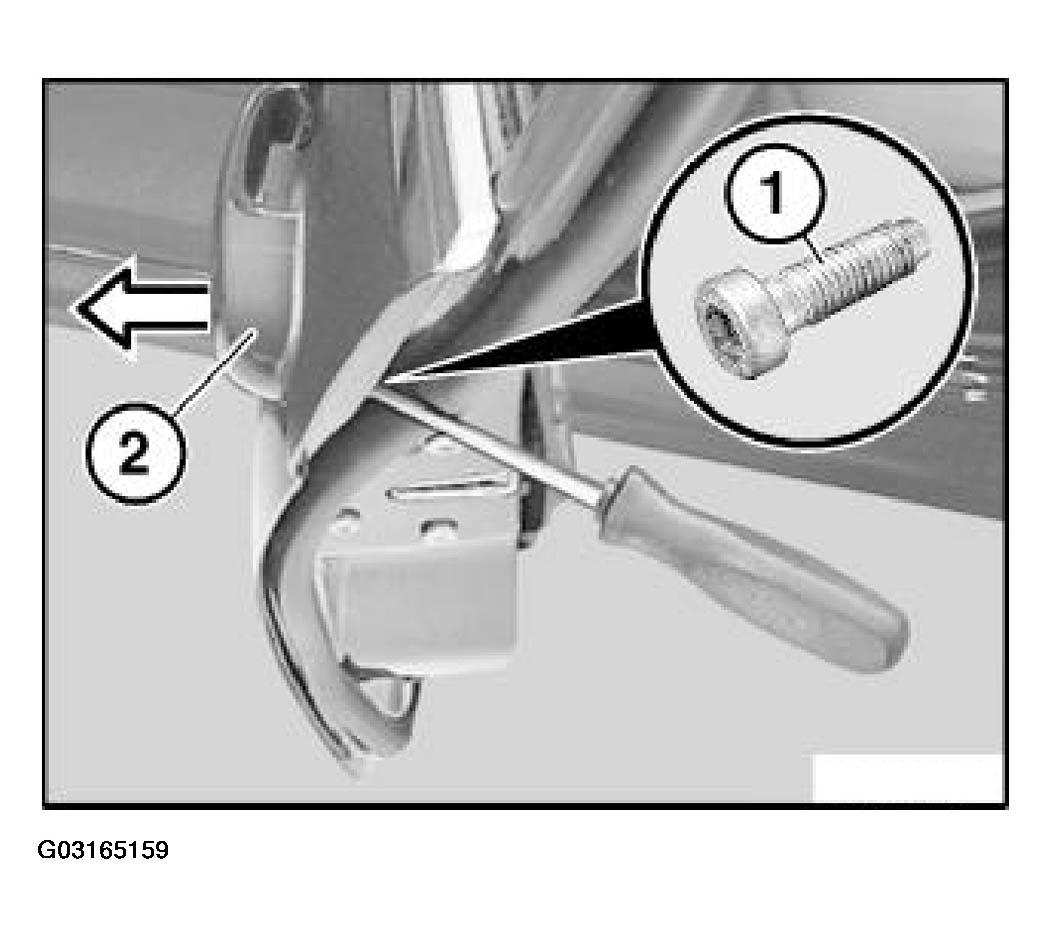

Unscrew bolt (1).

Detach cover (2).

Fig 2: Detaching Cover

Courtesy of BMW OF NORTH AMERICA, INC.

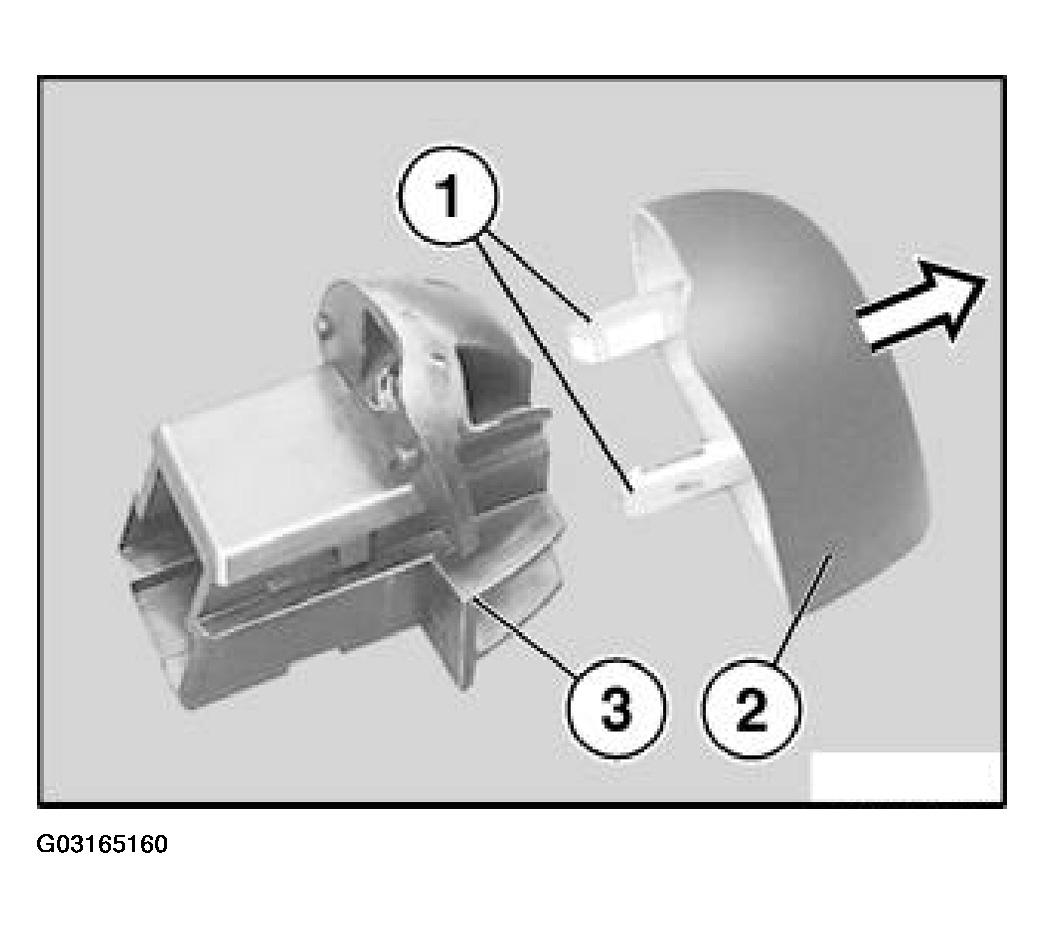

Lever out catches (1) and detach cover (2) from filler element (3).

Fig 3: Detaching Cover From Filler Element

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on cover (2) must not be damaged.
