51 12 825 Removing and installing/replacing guide for bumper at rear middle (from 09.01)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Release all screws (1).

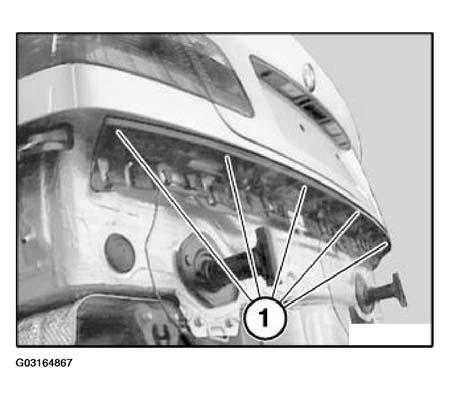

Fig 1: Releasing All Screws (1)

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, unhook wiring harness for PDC sensors from guide.

Remove guide.
