51 16 080 Removing and installing or replacing sun visor and left or right counter support

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Lift out sun visor (1).

Version without interior light package:

Unfasten screws (2) and remove sun visor 1.

Version with interior light package:

Release screws (2) if necessary, pull out lighting cable a little, disconnect plug connection and remove sun visor (1).

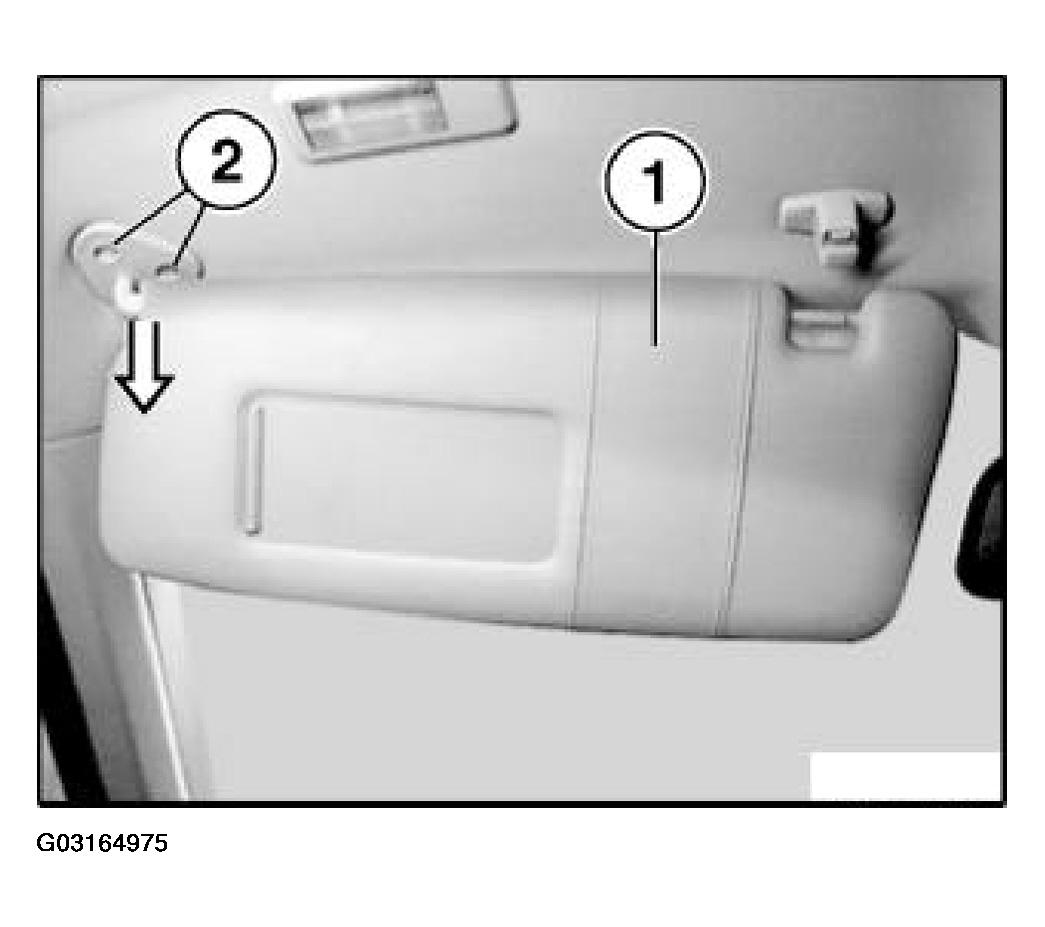

Fig 1: Unfastening Screws And Removing Sun Visor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Perform function check on lighting.

Lift out inserts (1).

Release screws (2) and remove counter support (3).

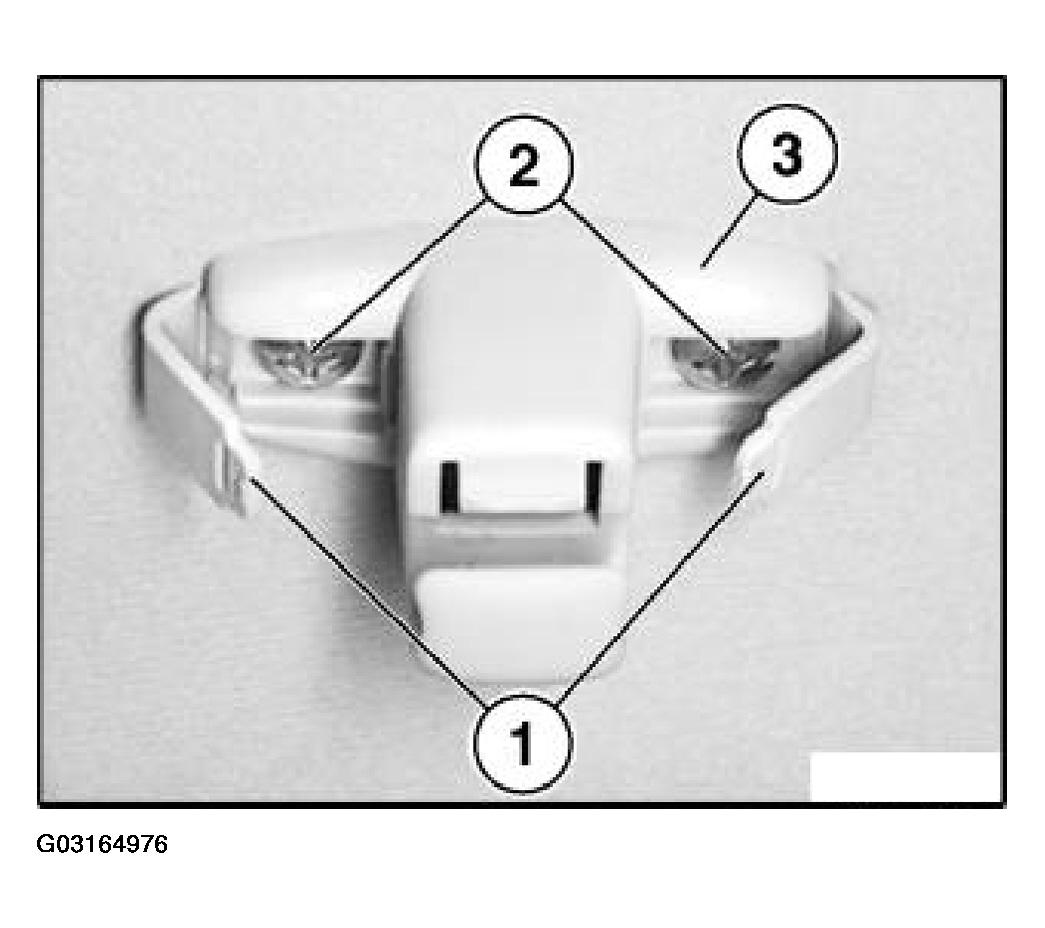

Fig 2: Lifting Out Inserts And Releasing Screws (2) And Remove Counter Support (3)

Courtesy of BMW OF NORTH AMERICA, INC.
