51 16 026 Replacing mirror glass for rear-view mirror (on front door)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Make sure car has room temperature to prevent the clips from breaking off.

Tilt mirror glass.

Remove cement between mirror glass and edge of housing (risk of damage).

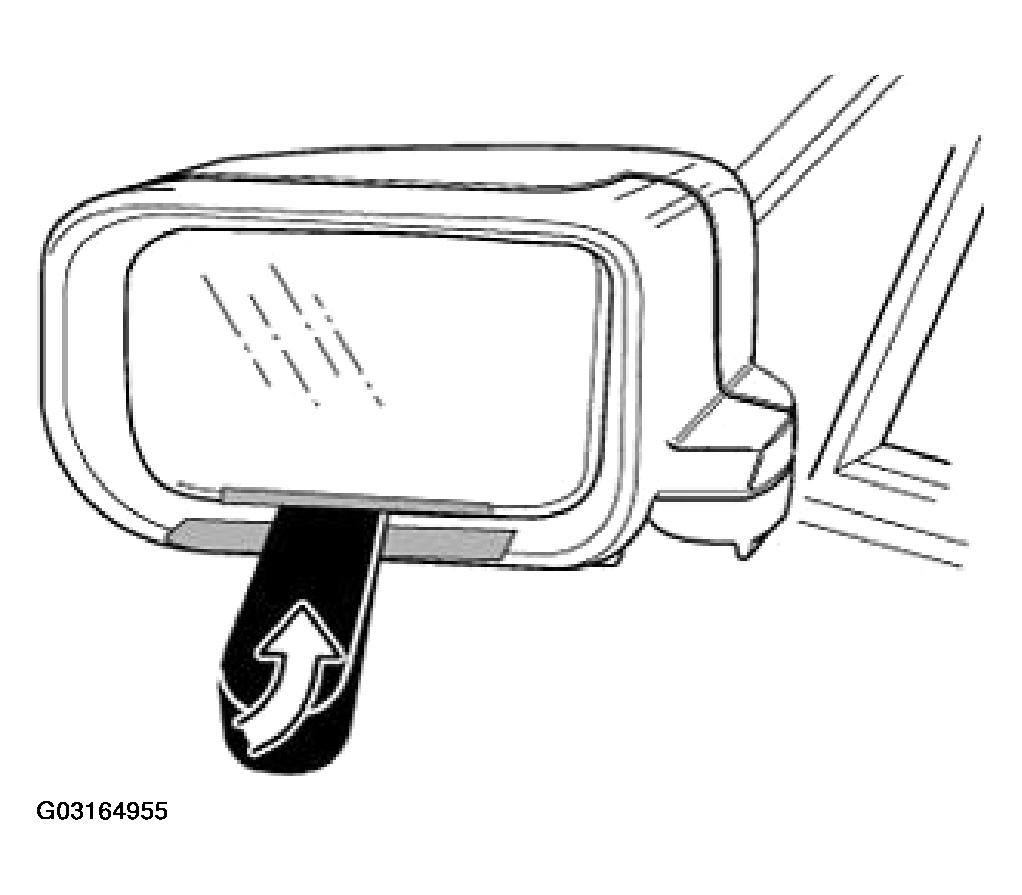

Fig 1: Removing Cement Between Mirror Glass And Edge Of Housing (Risk Of Damage)

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip mirror glass using a wooden wedge.

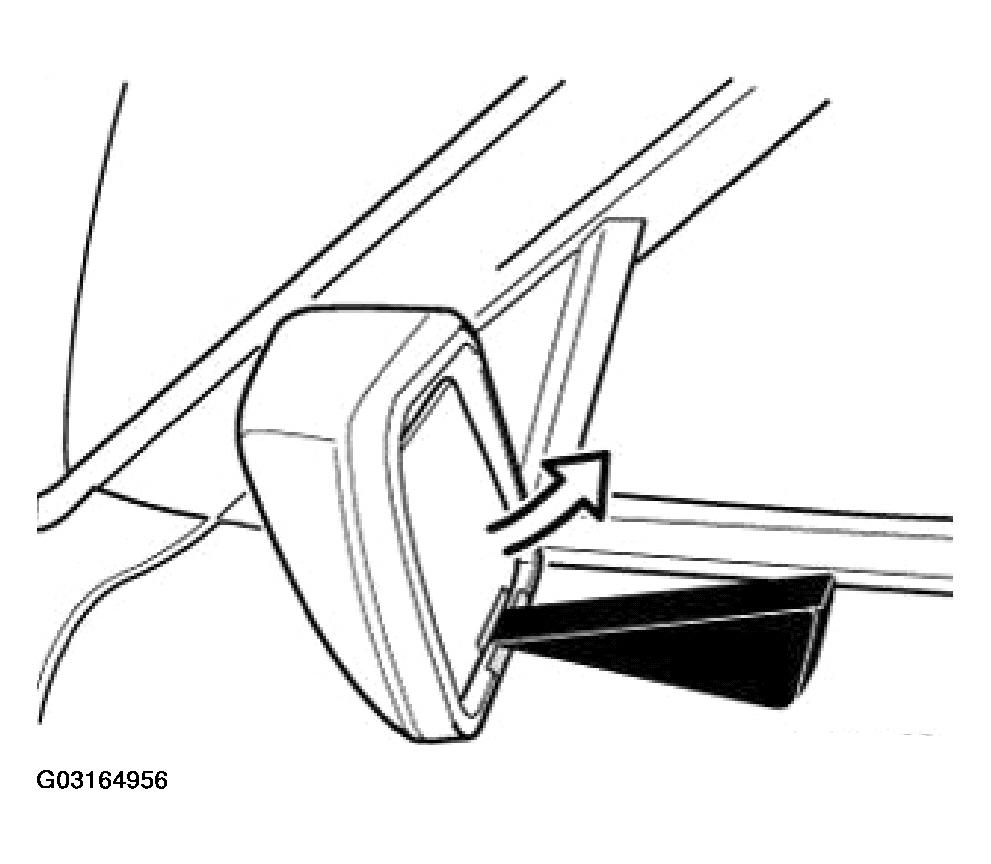

Fig 2: Uncliping Mirror Glass Using Wooden Wedge

Courtesy of BMW OF NORTH AMERICA, INC.

If applicable, remove connector (mirror glass heating) and remove mirror glass.

Installation:

Install mirror glass that clips are seated on tabs and clip on glass.

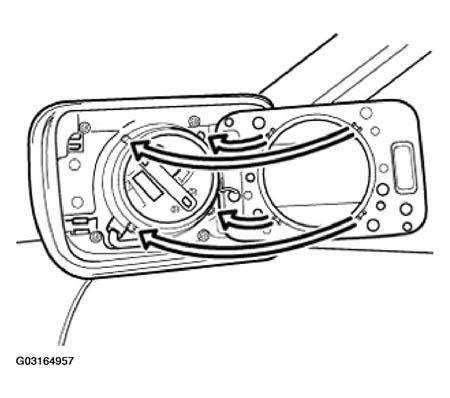

Fig 3: Installing Mirror Glass
Courtesy of BMW OF NORTH AMERICA, INC.
Ensure correct engagement.
Check function.
