51 16 000 Removing and installing/replacing rear-view mirror on left or right front door

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Partly remove cover (anti-trapping protection) at front from inside of door window frame,

refer to 51 32 160 REMOVING AND INSTALLING/REPLACING COVER (ANTI-TRAPPING PROTECTION) ON DOOR WINDOW FRAME, LEFT OR RIGHT, INSIDE .

Version with loudspeaker:

Unfasten plug connection (1).

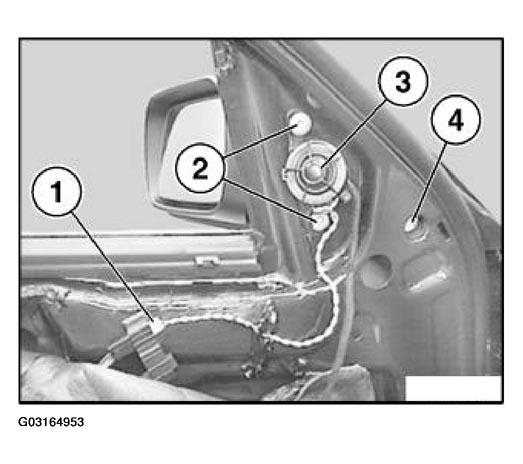

Fig 1: Unfastening Plug Connection (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) and remove speaker (3).

Fig 2: Releasing Screws And Removing Speaker

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) and (4).

Installation:

Tightening Torque, refer to 51 16 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 325I, CI & XI - E46
Check function

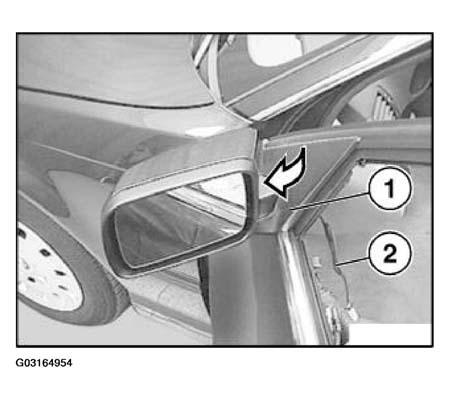

Remove rearview mirror (1) and feed out cable (2).
