51 31 015 Repairing damage to windscreens caused by pitting (stone chips) (clear and tinted laminated safety glass)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

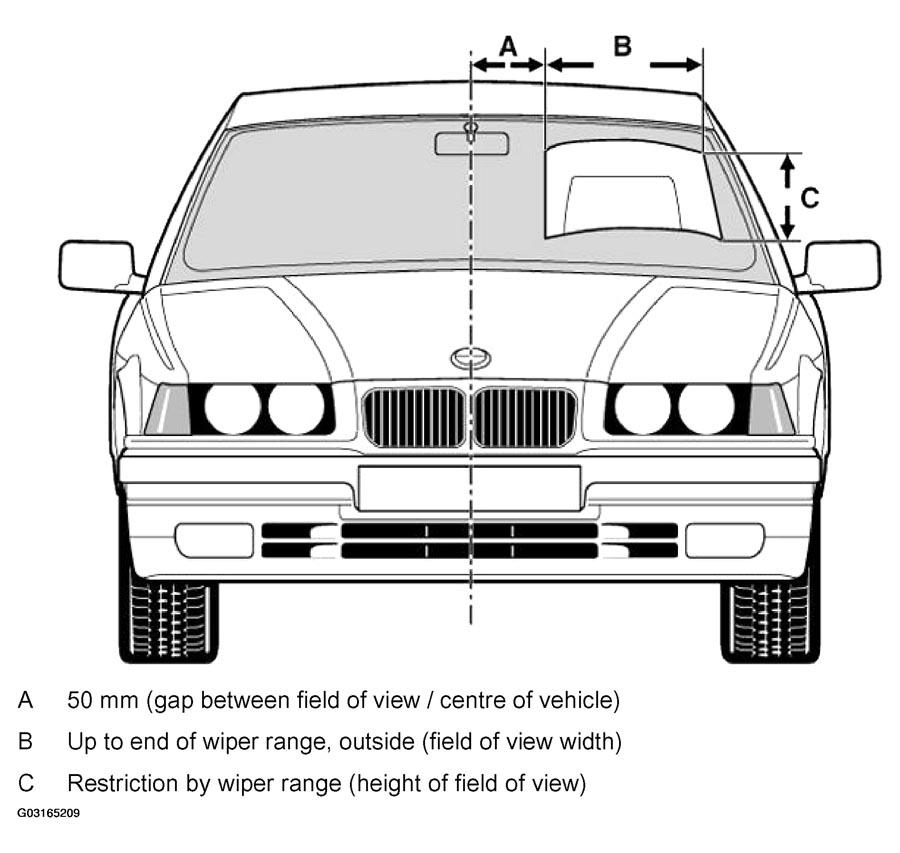

Field of vision (no repairs acceptable):

50 mm (gap between field of view / centre of vehicle)
Up to end of wiper range, outside (field of view width)
Restriction by wiper range (height of field of view)

Fig 1: Identifying Field Of Vision (No Repairs Acceptable)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Repairs must only be carried out outside of the field of vision (refer to Fig 1).

If the stone chip damage is outside the field of vision, refer to 51 31... REMOVING WINDSCREEN WITH "ROLL OUT 2000" .
