51 21 300 Removing and installing or replacing window cavity cover strip on outside of left or right front door

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

NOTE: For special tools, refer to BODY EQUIPMENT - SPECIAL TOOLS - 3-SERIES (M54/E46) .

00 9 311

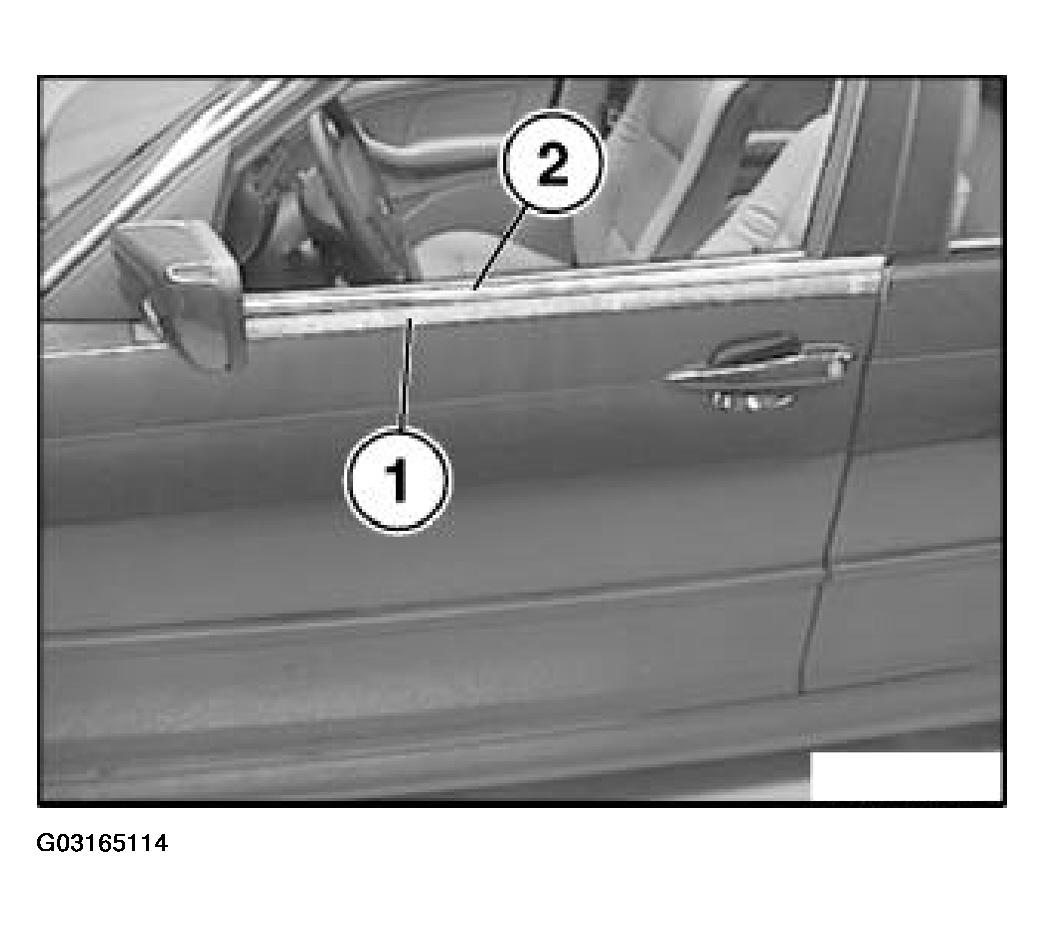

Attach adhesive tape (1) underneath window cavity cover strip (2) (risk of damage).

Fig 1: Attaching Adhesive Tape Underneath Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

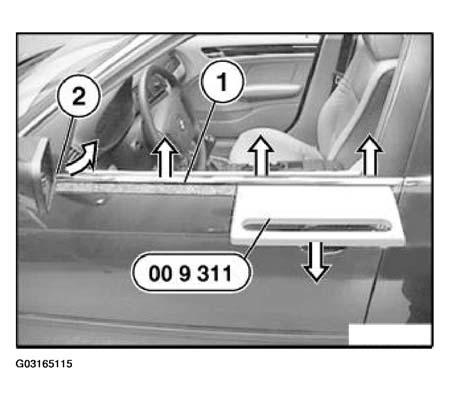

Carry out disassembly with special tool 00 93 11.

Lever out window cavity cover strip (1) starting at rear towards front and pull out under rearview mirror (2).

Fig 2: Removing Window Cavity Cover Strip Starting At Rear Towards Front And Pull Out Under Rearview Mirror

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Coat window cavity cover strip with water prior to installation.
