51 21 200 Removing and installing/replacing outside handle and lock actuator on left or right front door (up to 09/00)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove door lock on front door. See 51 21 090 Removing and installing/replacing door lock in left or right front door (up to 09/00)

Remove outside handle on front door. See 51 21 170 Removing and installing/replacing outside handle on left or right front door (up to 09/00)

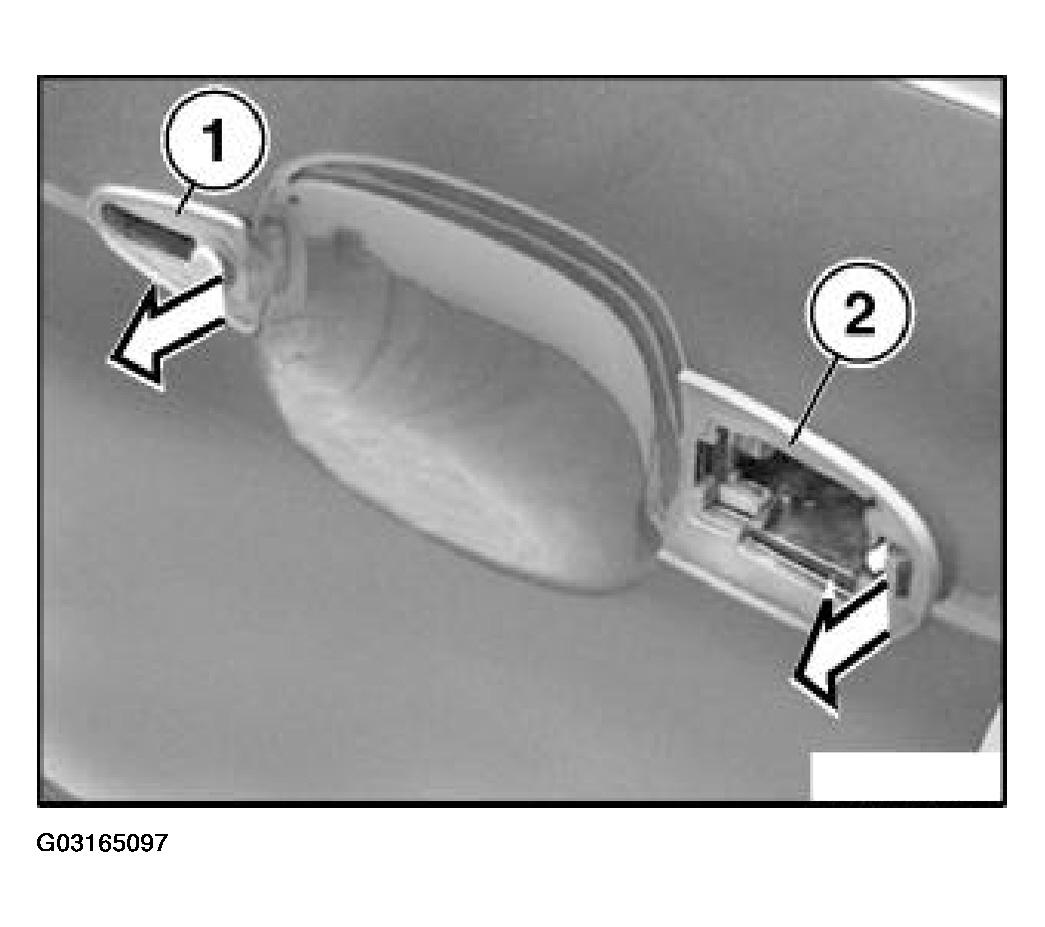

Remove seals (1) and (2) for outside handle.

Fig 1: Removing Seals And For Outside Handle

Courtesy of BMW OF NORTH AMERICA, INC.

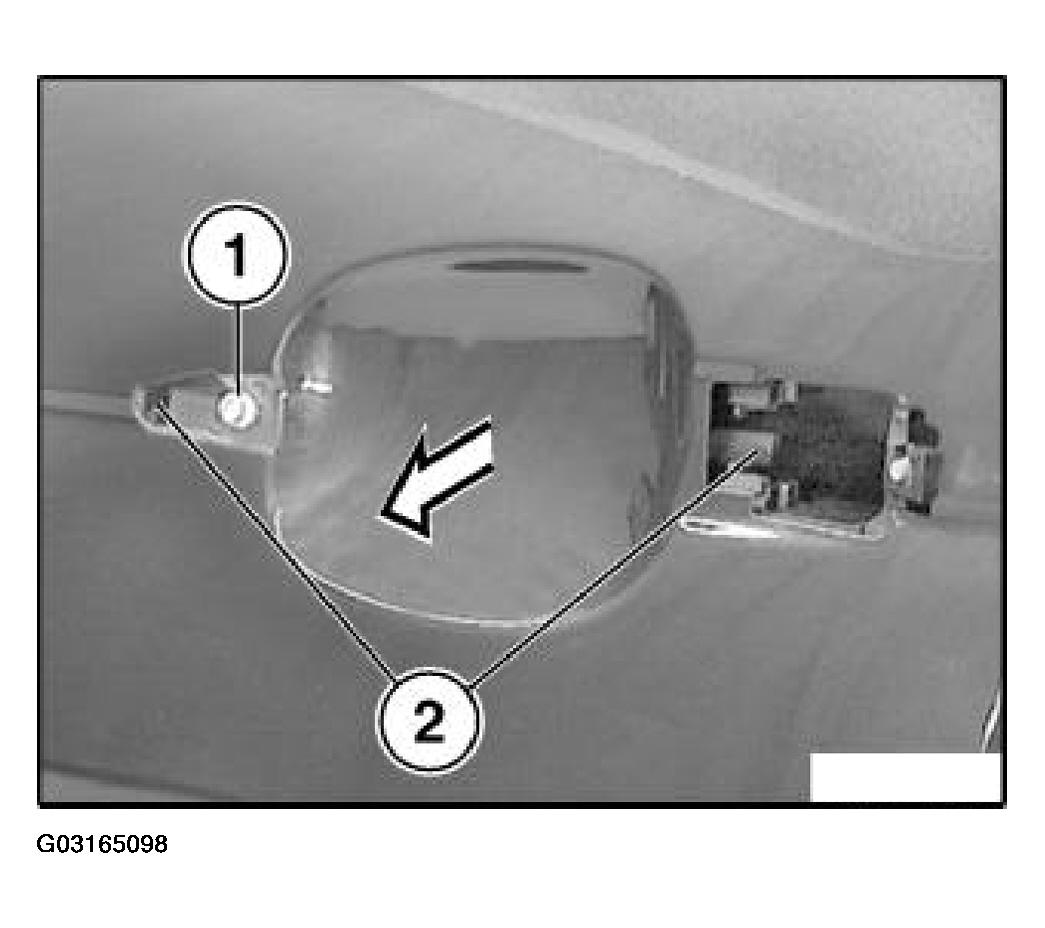

Loosen bolt (1).

Lever out lock actuator (2) towards front and remove to inner door plate.

Fig 2: Levering Out Lock Actuator

Courtesy of BMW OF NORTH AMERICA, INC.

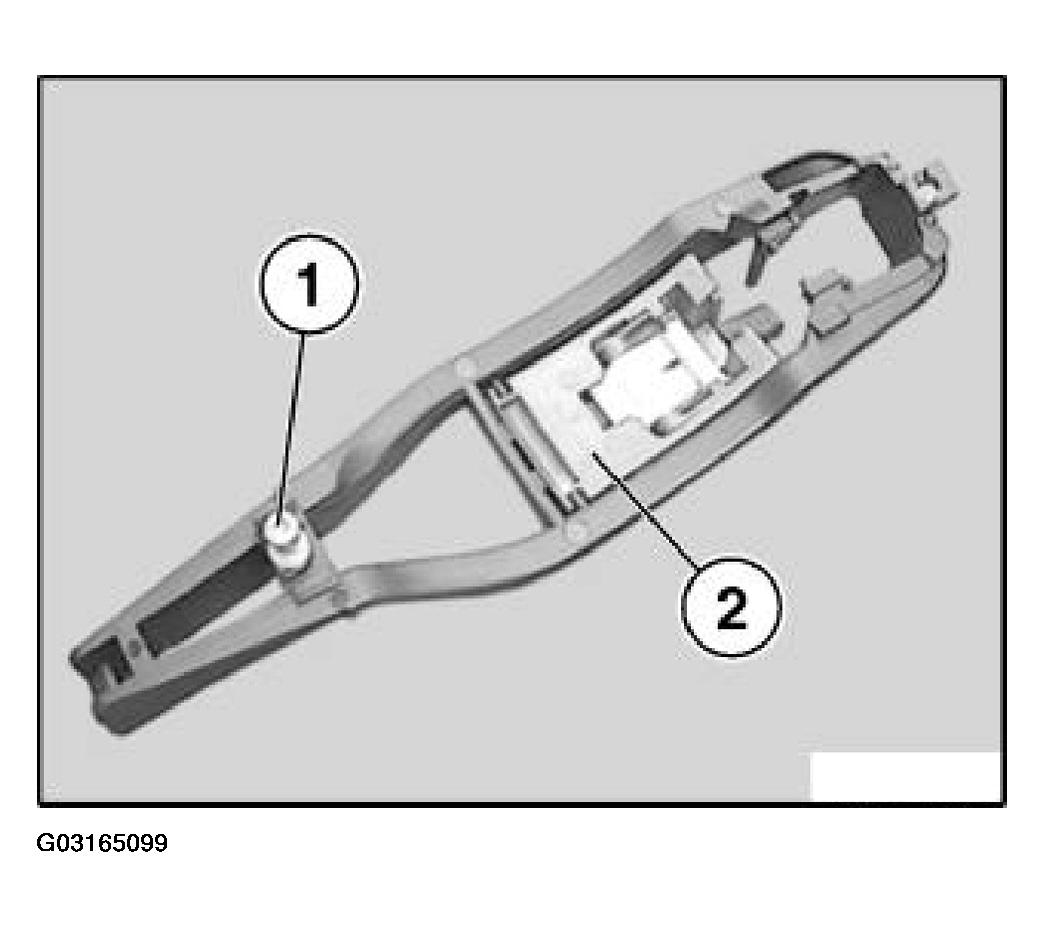

If necessary, replace screw (1) on lock actuator (2).

Fig 3: Replacing Screw On Lock Actuator

Courtesy of BMW OF NORTH AMERICA, INC.
