51 21 003 Replacing door detent (lock striker), front left or right

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

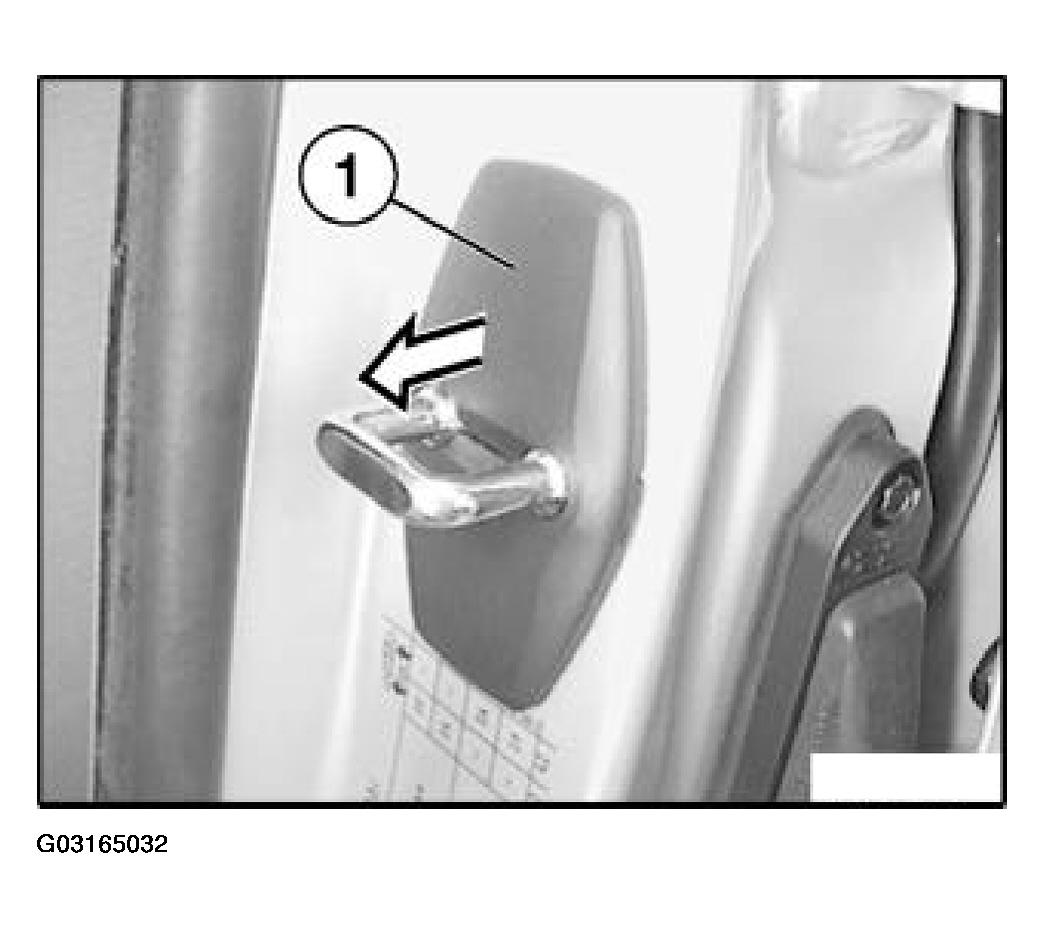

Lift off cover (1).

Fig 1: Lifting Off Cover

Courtesy of BMW OF NORTH AMERICA, INC.

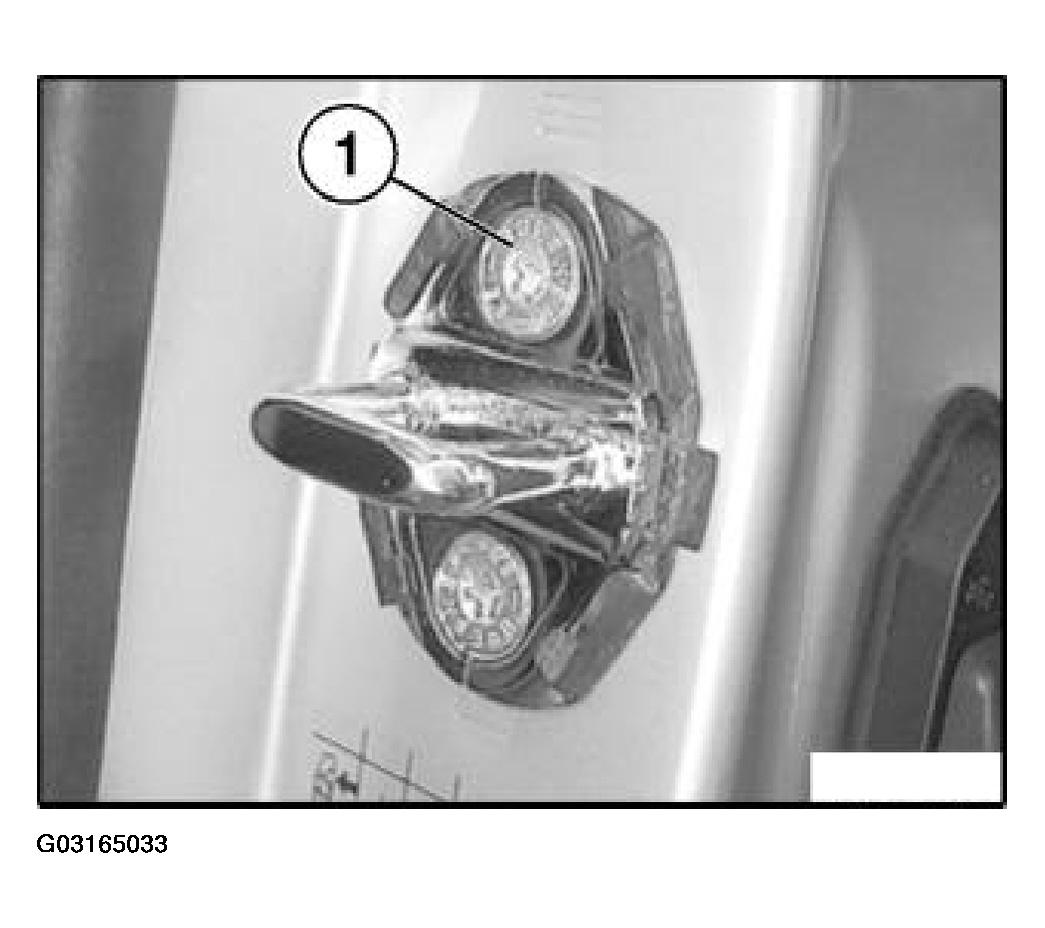

Unscrew bolt (1).

NOTE: Screw in threaded pin so that thread plate does not drop into door pillar.

Fig 2: Unscrewing Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

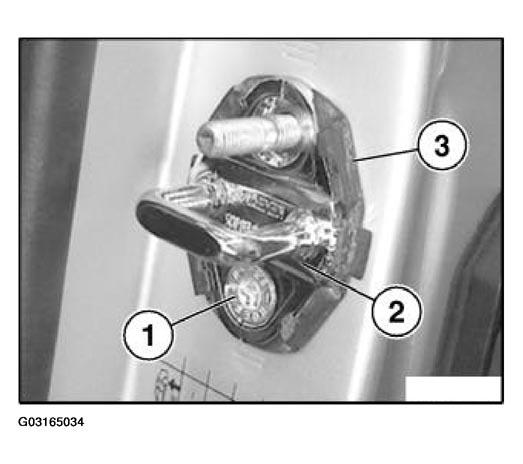

Release screw (1) and remove lock striker (2) with seal (3).

Fig 3: Releasing Screw And Removing Lock Striker With Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Adjust lock striker (2).
