51 11 701 Replacing bracket for front left or right bumper (saloon/sedan and touring up to 9/01)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front bumper. See 51 11 001 Replacing front bumper (up to 9/01)

If necessary, mark position of bracket (2) on body.

Unfasten screws (1) and remove bracket (2).

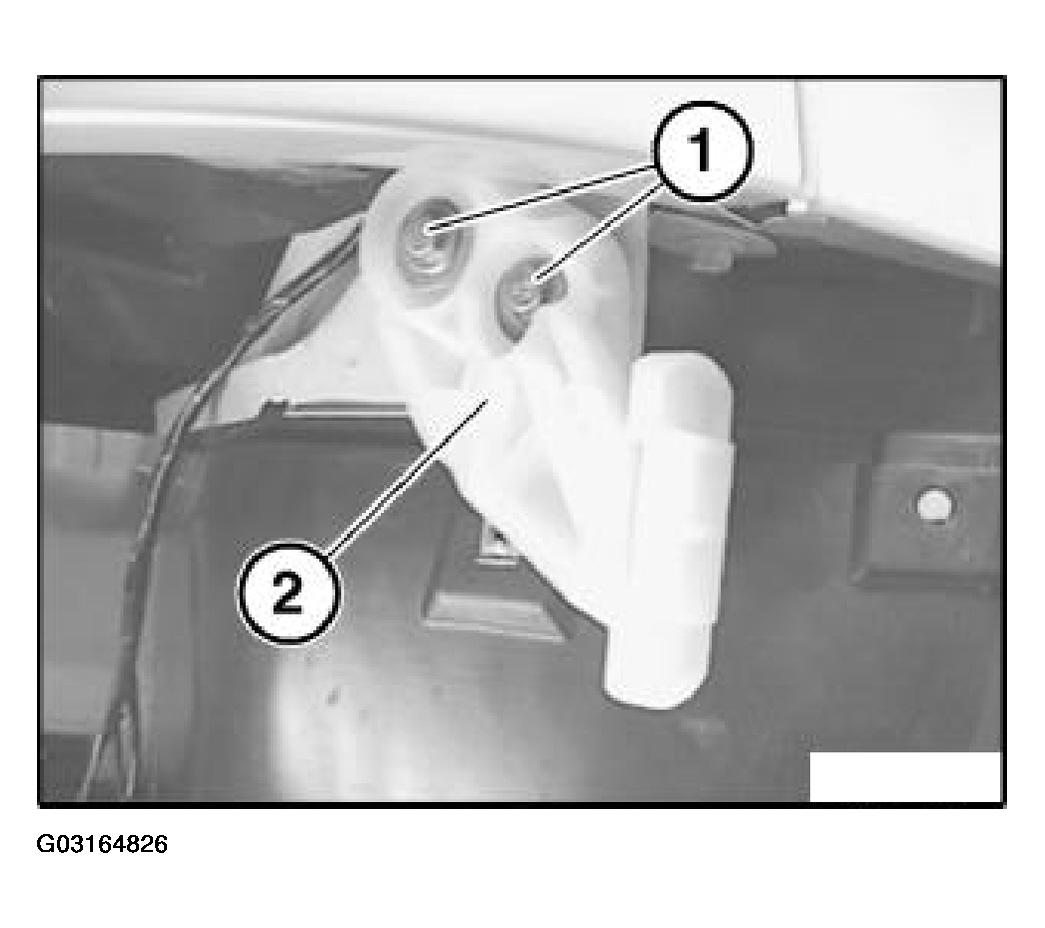

Fig 1: Unfastening Screws And Remove Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Ideal adjustment:

Gap (A) should be uniform along the full length between bumper and aperture in body.

Dimension (A) = 5 +/- 1 mm

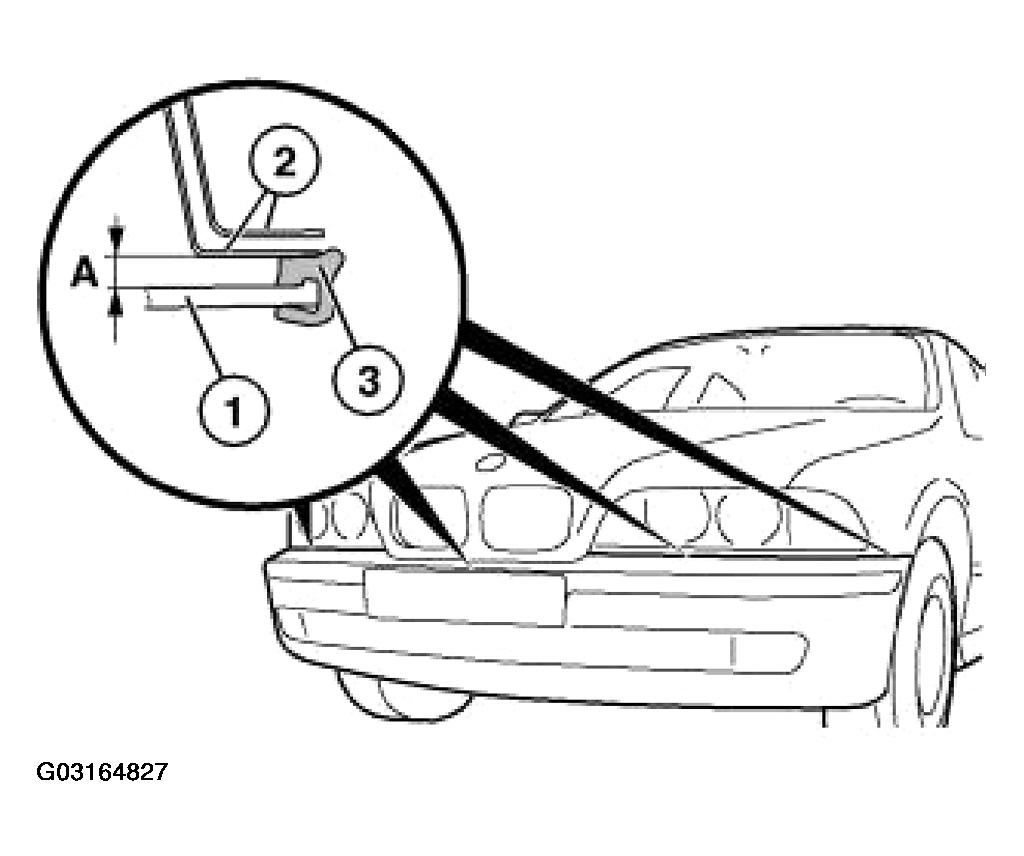

Fig 2: Measuring Dimension (A)

Courtesy of BMW OF NORTH AMERICA, INC.
