51 11 701 Replacing bracket for front left or right bumper (saloon/sedan and touring from 10/01)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove bumper. See 51 11 000 Removing and installing complete front bumper (from 10/01)

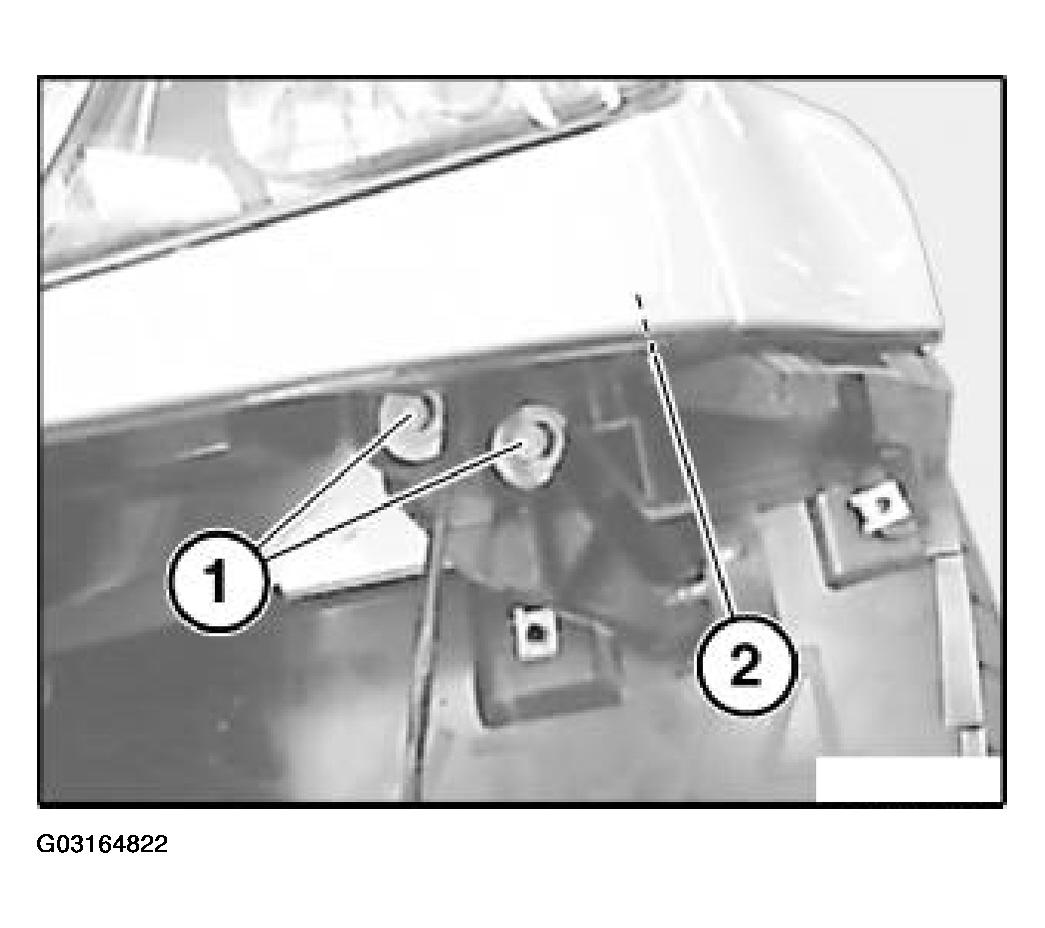

Loosen screws (1).

Pull bracket forwards out of T-guide (2).

Fig 1: Pulling Bracket Forwards Out Of T-Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

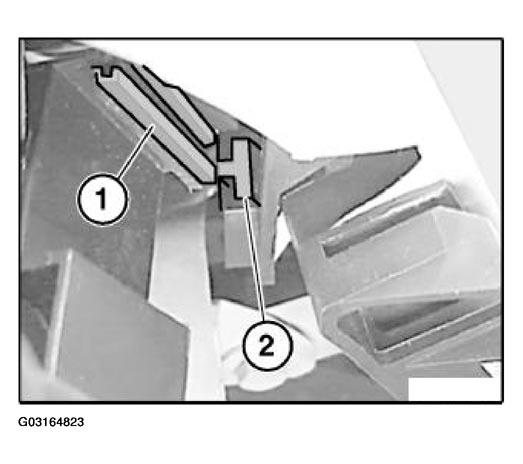

Feed inner bracket (1) into T-guide (2).

Fig 2: Feeding Inner Bracket Into T-Guide

Courtesy of BMW OF NORTH AMERICA, INC.

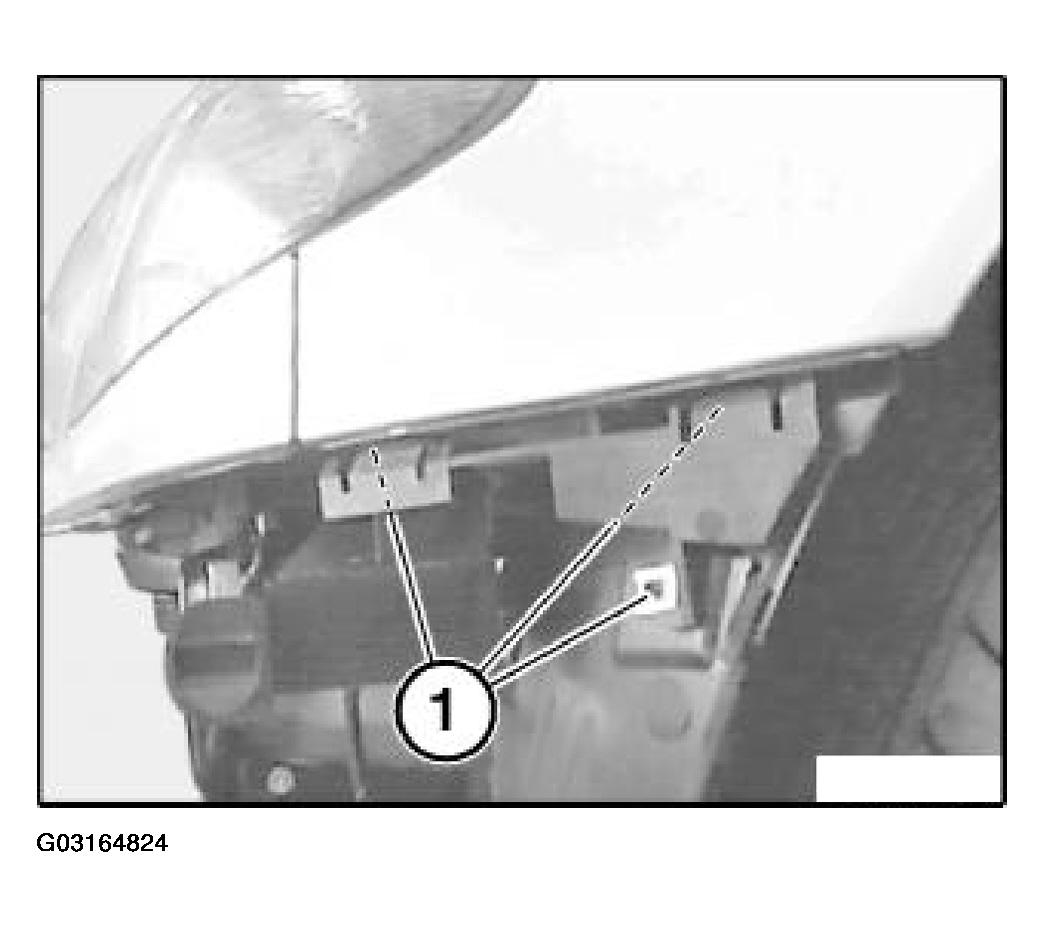

Loosen screws (1).

Detach bracket to middle from metal fold (gently pull downwards if necessary).

Fig 3: Removing Bracket To Middle From Metal Fold

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

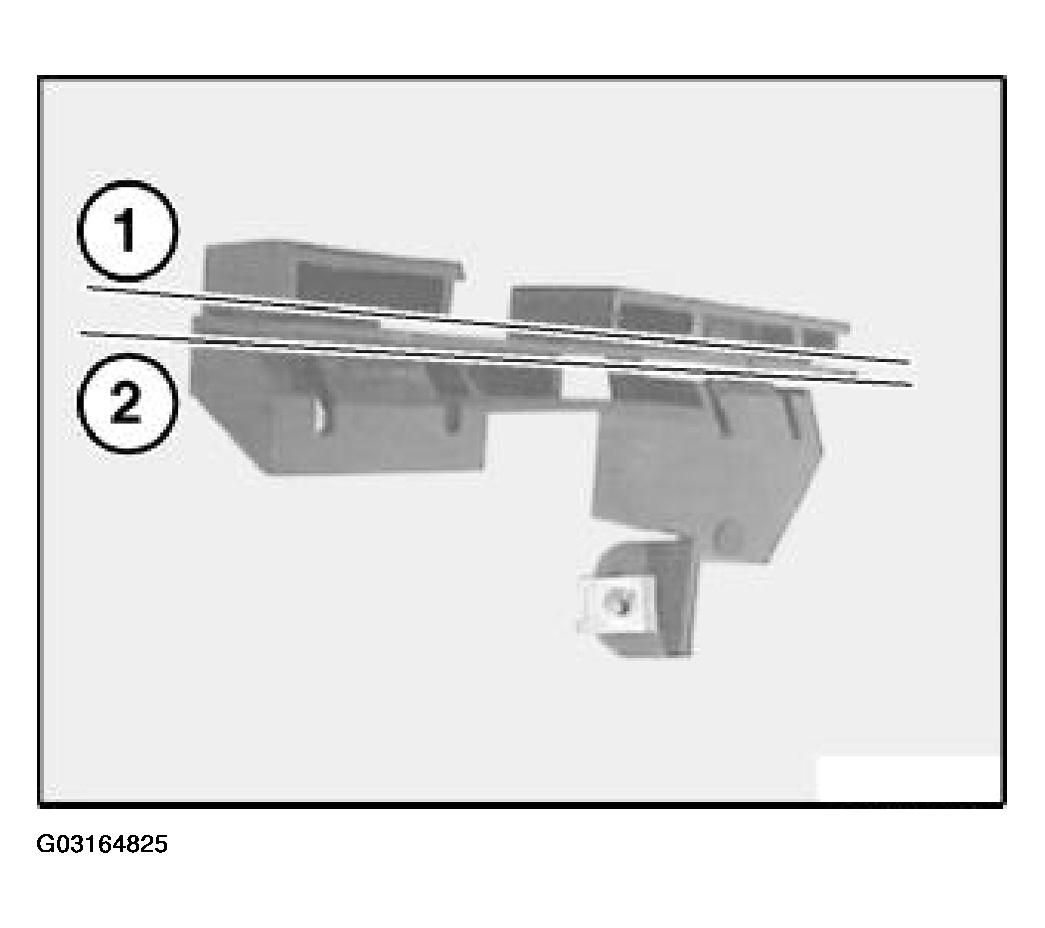

Level for placing on metal fold
Level for subsequent clipping in of bumper

Fig 4: Identifying Level For Placing On Metal Fold And Level For Subsequent Clipping In Of Bumper
Courtesy of BMW OF NORTH AMERICA, INC.
