51 47 072 Removing and installing/replacing finishing strip on entrance, rear left or right

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

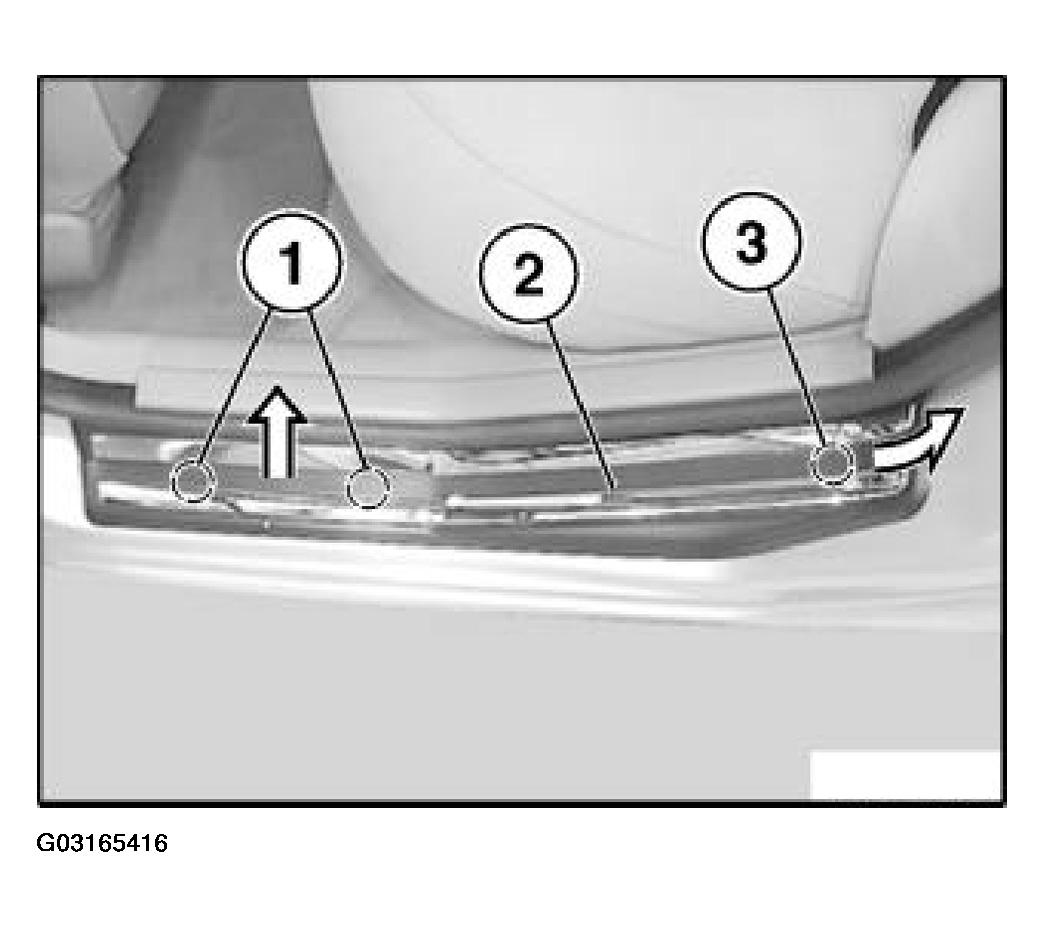

Lever out clips (1) towards top with special tool 00 9 318 (universal wedge).

Carefully remove finishing strip (2) towards rear/top from clip (3).

Fig 1: Removing Finishing Strip Towards Rear/Top From Clip

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove clips.

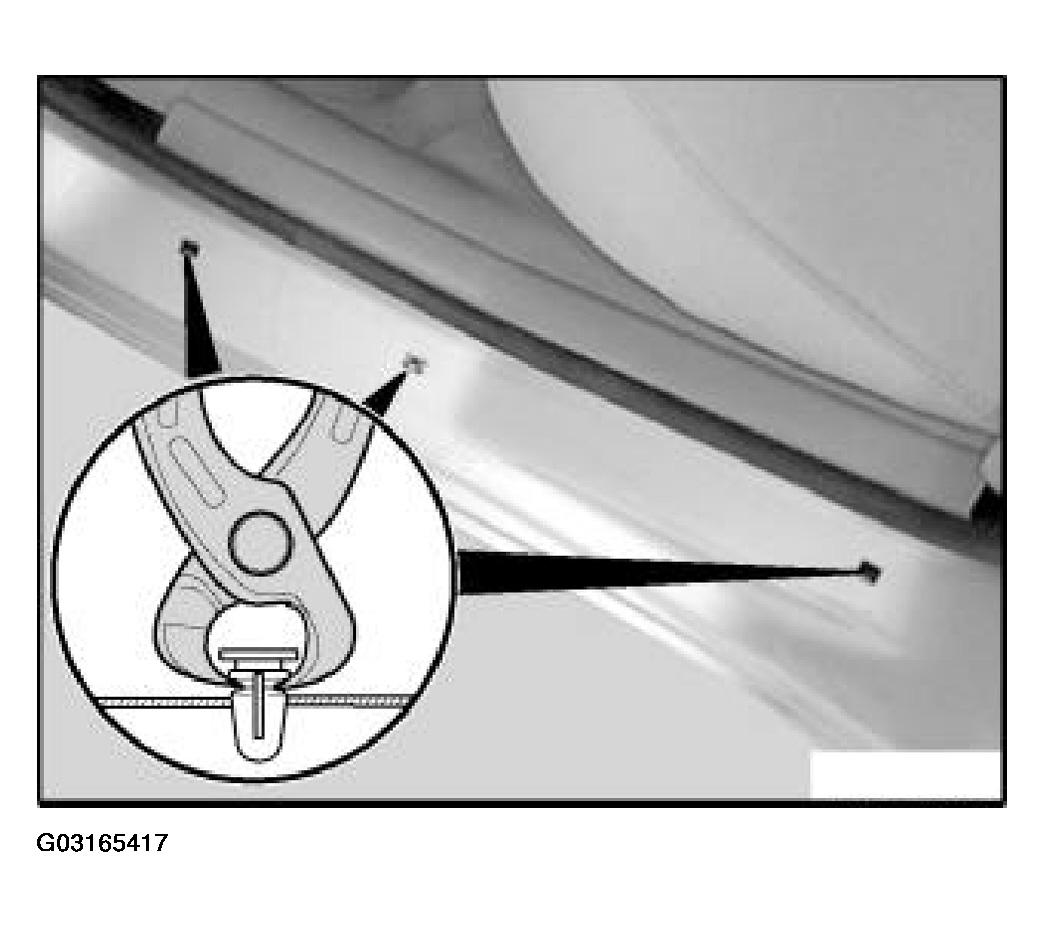

Remove clips from entrance with pliers (head of pliers surface-ground).

Fig 2: Removing Clips From Entrance

Courtesy of BMW OF NORTH AMERICA, INC.

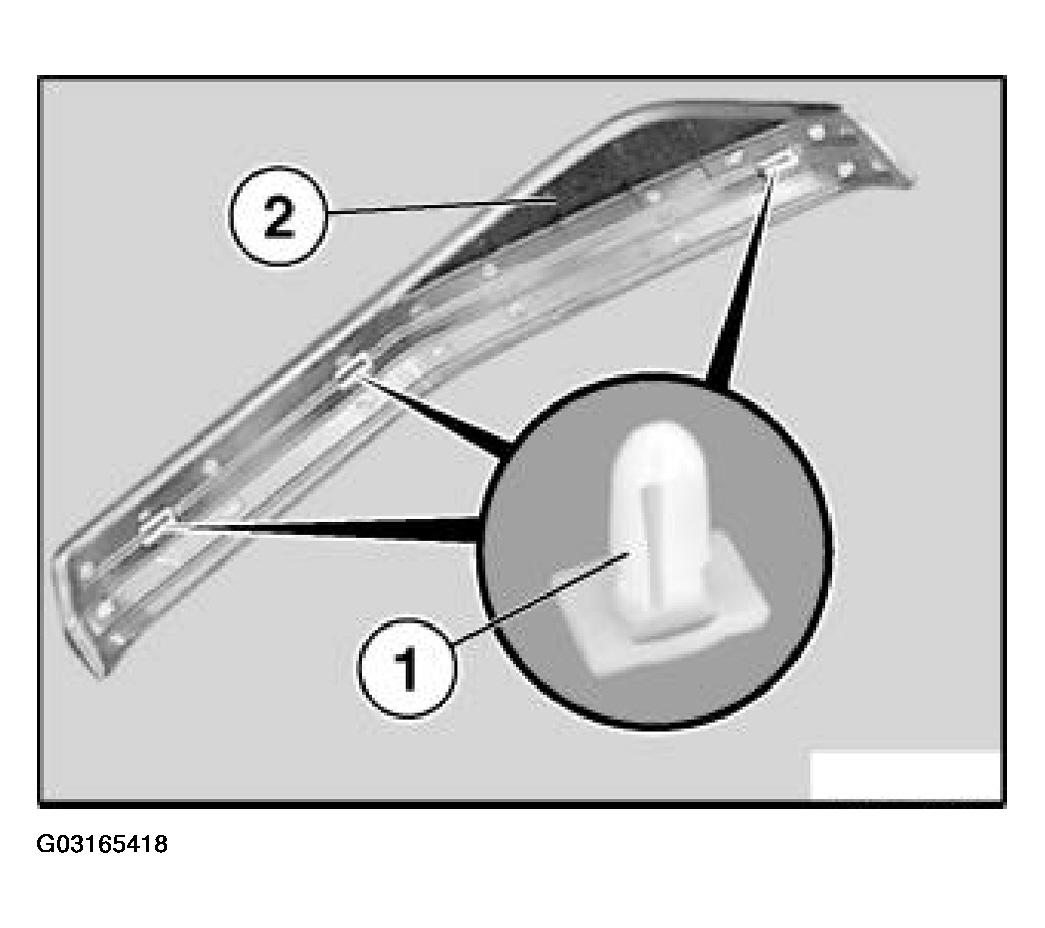

Slide on clips (1) and align.

If necessary, replace damaged clips.

Fig 3: Aligning Clips

Courtesy of BMW OF NORTH AMERICA, INC.
