51 37 000 Removing and installing complete power window lifter from rear left and right sides

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Release rear door window glass (do not remove),

refer to 51 34 171 REPLACING REAR LEFT OR RIGHT DOOR WINDOW .

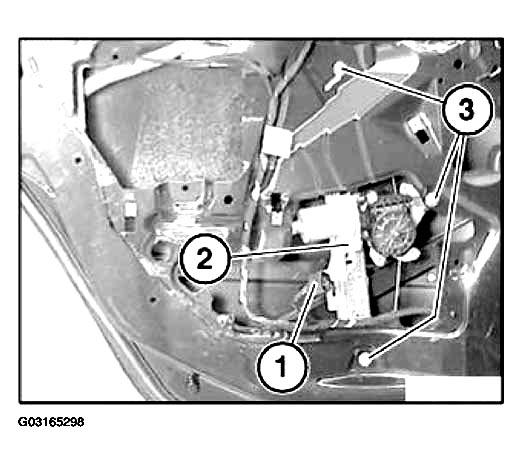

Plug connection (1) must be disconnected from window lifter (2).

Unscrew nuts (3).

Fig 1: Removing Window Lifter Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

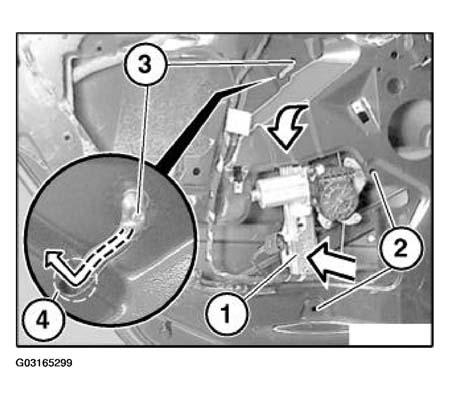

Lift out window lifter (1) with stay bolts (2).

Guide window lifter (1) with stay bolts (3) up to point (4) and remove.

Fig 2: Removing Window Lifter With Stay Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

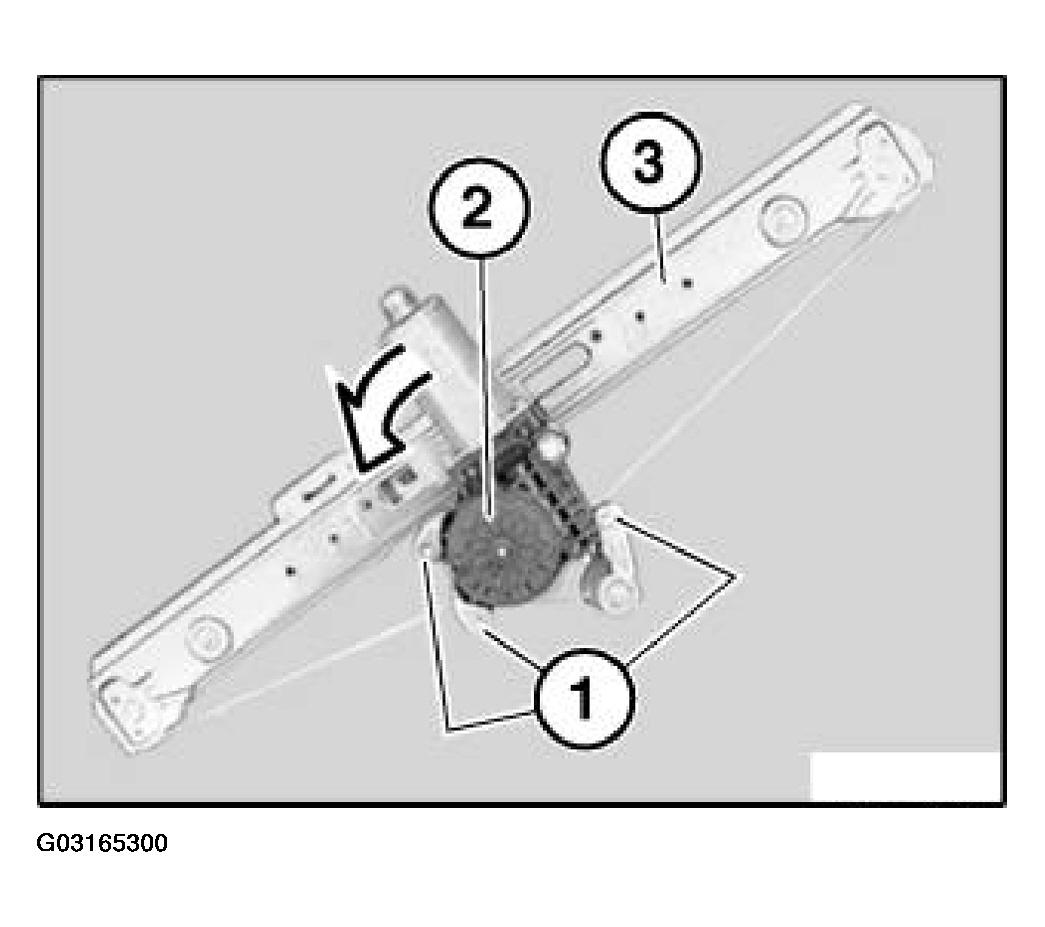

Release screws (1).

Turn flat motor (2) and detach from window lifter (3).

Fig 3: Removing Flat Motor From Window Lifter

Courtesy of BMW OF NORTH AMERICA, INC.
