51 15 360 Removing and installing rubbing strip on rear door on left or right

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

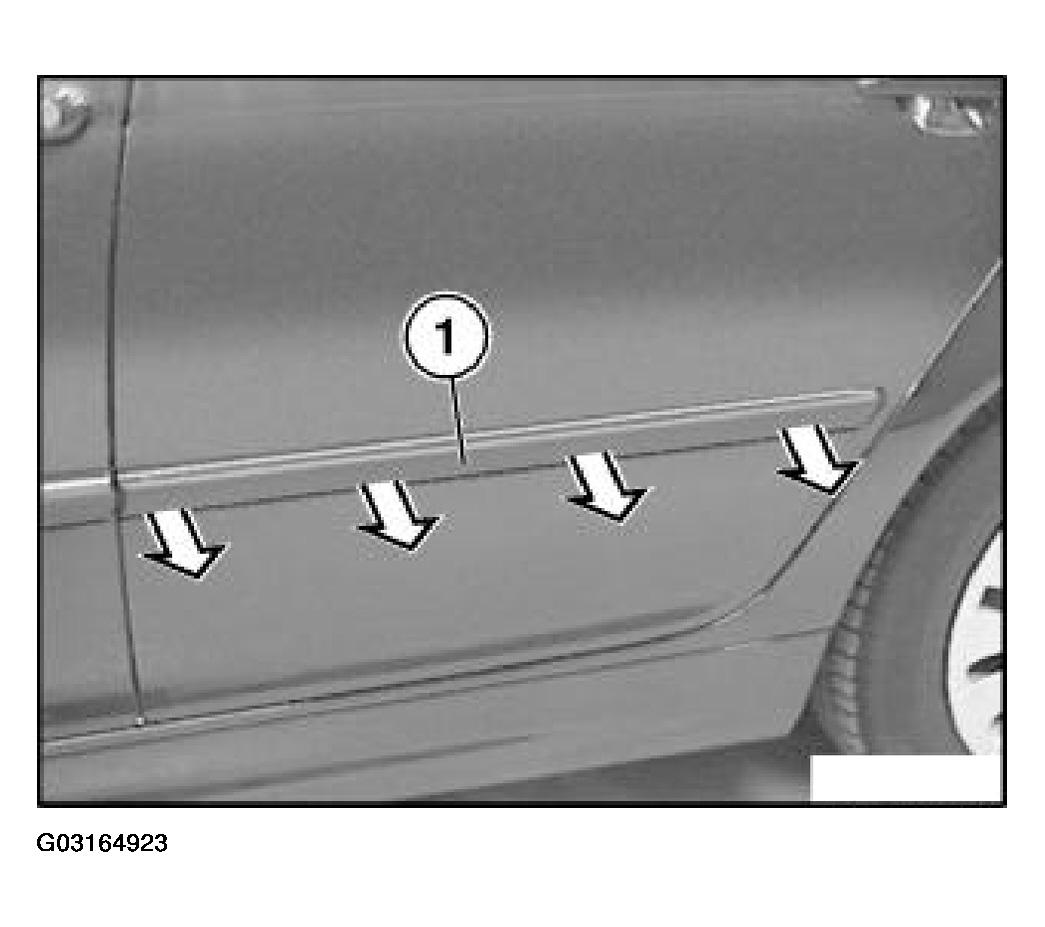

Unclip rubbing strip (1).

Fig 1: Uncliping Rubbing Strip

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove clips from rear door.

Installation:

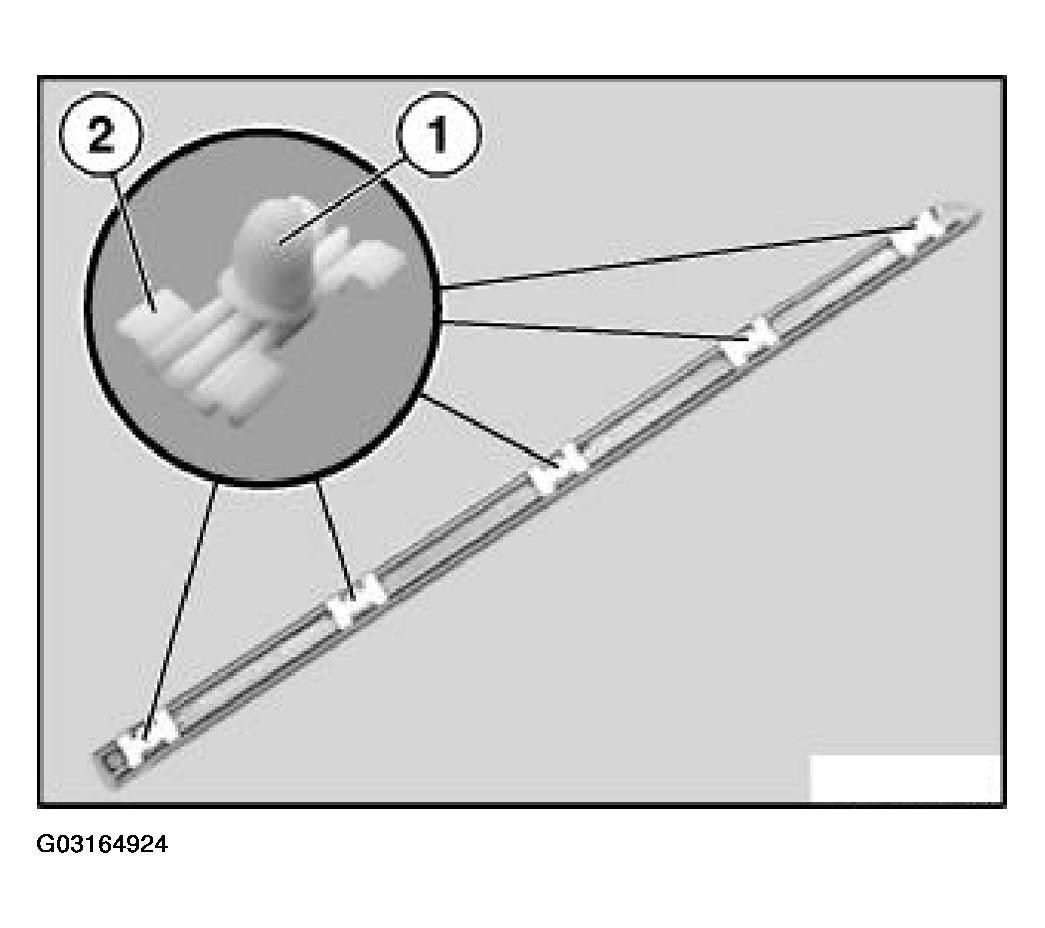

If necessary, replace faulty rubber grommets (1) and clips (2).
Attach clips to body molding in rubber grommet and align.
Prior to installation, coat rubber grommet (1) with soapy solution (washing-up liquid).

Clip rubbing strip into rear door.

Fig 2: Clipping Rubbing Strip Into Rear Door

Courtesy of BMW OF NORTH AMERICA, INC.
