51 15 330 Removing and installing or replacing body molding on left or right front door

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

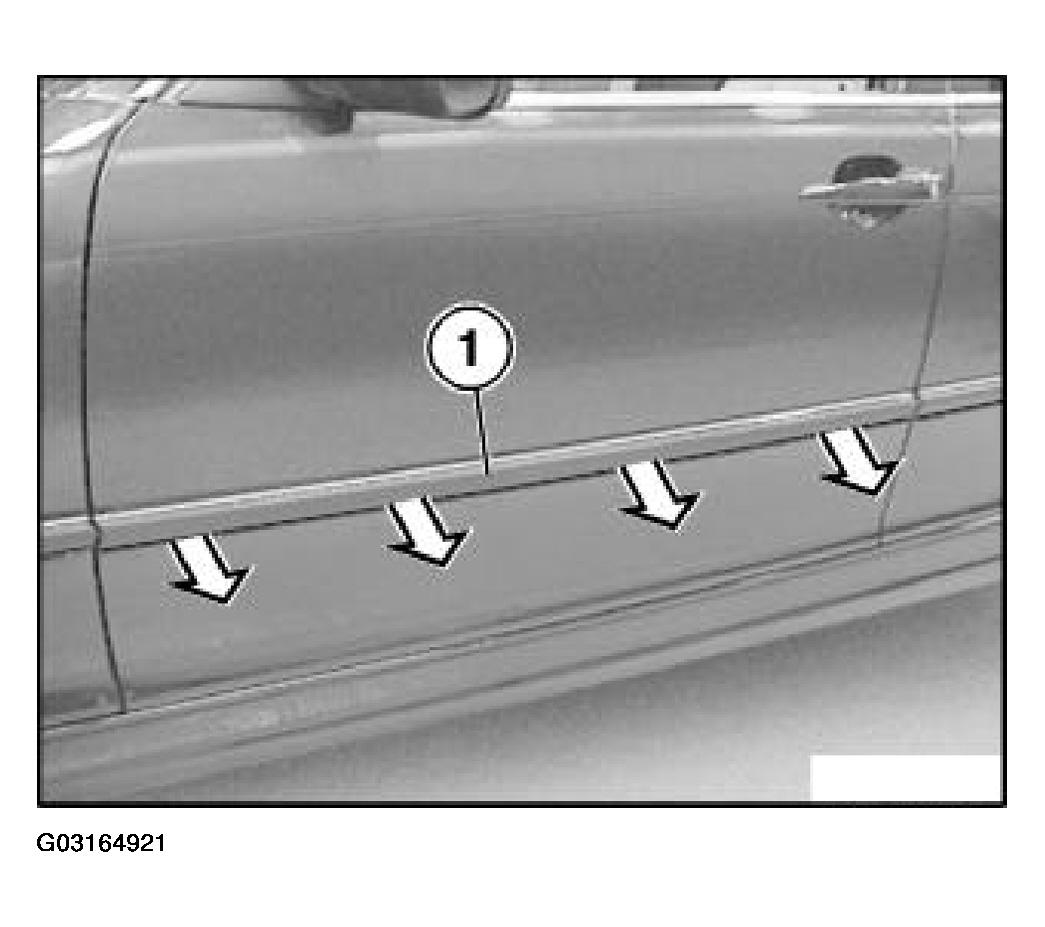

Unclip rubbing strip (1).

Fig 1: Uncliping Rubbing Strip

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, lift clips off doors.

Installation:

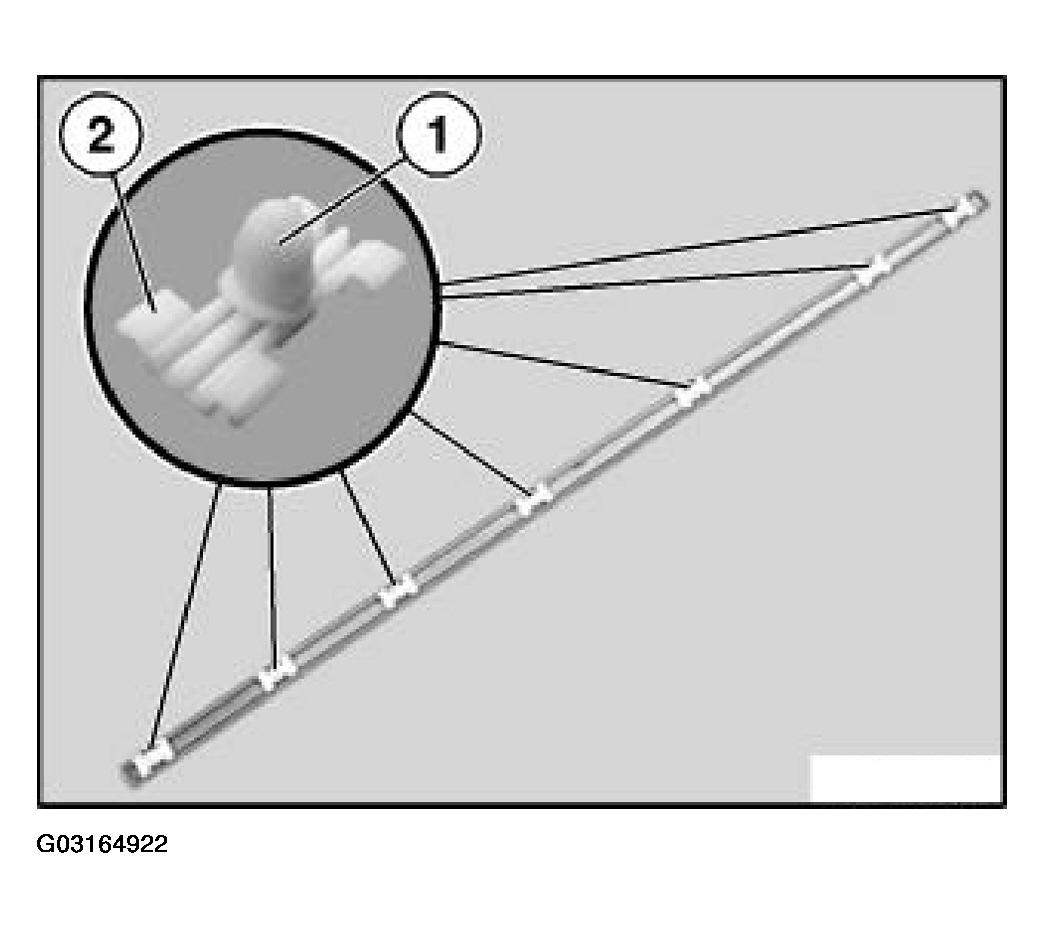

If necessary, replace faulty rubber grommets (1) and clips (2).

Fig 2: Replacing Faulty Rubber Grommets And Clips
Courtesy of BMW OF NORTH AMERICA, INC.
Attach clips to body molding in rubber grommet and align.
Prior to installation, coat rubber grommets (1) with soapy solution (washing-up liquid).

Clip rubbing strip into door.
