36 11 527 Removing and installing/replacing rear receiving antenna for RDC

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

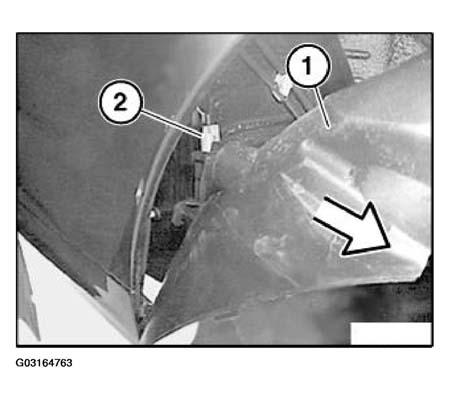

Release panel (1) and carefully pull towards front.

Fig 1: Removing Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (2) and disconnect.

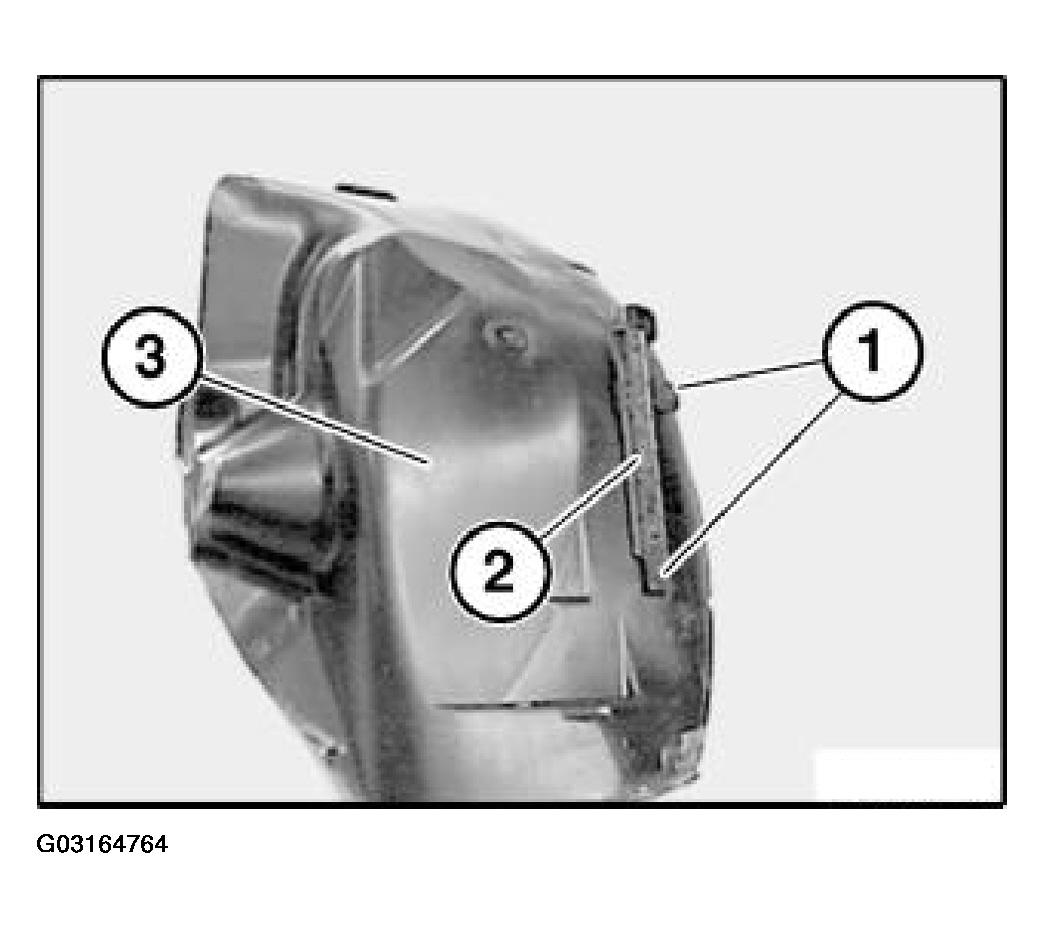

Remove screws (1) and receiving antenna (2) from panel (3).

Fig 2: Receiving Antenna From Panel

Courtesy of BMW OF NORTH AMERICA, INC.
