13 54 251 Replacing intake hose (between connecting piece and throttle assembly) (M54)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition.

Remove DISA adjustment unit, refer to 11 61 095 REMOVING AND INSTALLING/REPLACING DISA ADJUSTMENT UNIT .

Release screw.

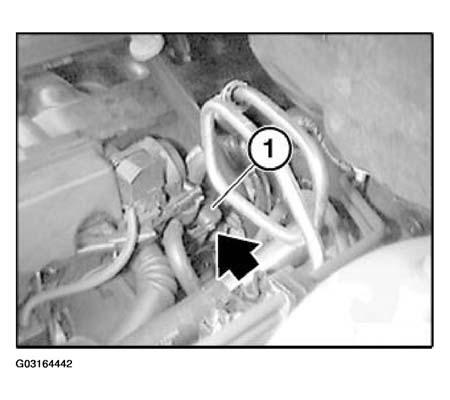

Remove suction jet pump (1) from intake air manifold.

NOTE: Shown on E53.

Fig 1: Removing Suction Jet Pump From Intake Air Manifold

Courtesy of BMW OF NORTH AMERICA, INC.

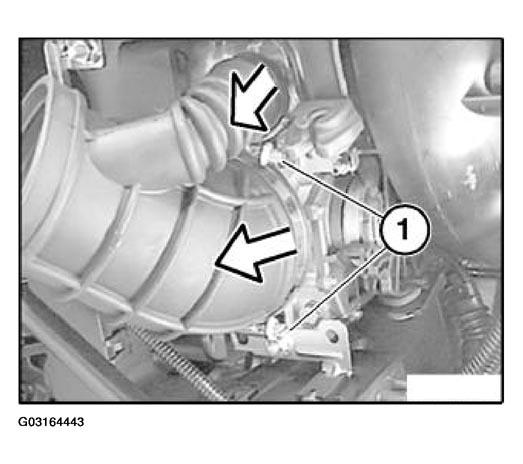

Release hose clamps (1).

Fig 2: Releasing Hose Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Detach intake hose from throttle assembly and idle speed control valve.
