13 54 250 Replacing intake hose (between air-mass flow sensor and connecting piece) (M54)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition.

Unlock plug (1) and detach from air-mass flow sensor.

Detach vacuum line (2) from intake hose. Release hose clamp (3).

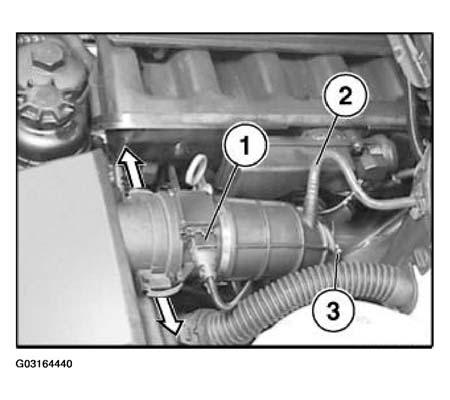

Fig 1: Unlocking Plug And Detach From Air-Mass Flow Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check sealing ring (1) between air-mass flow sensor and intake filter housing for damage, replace if necessary.

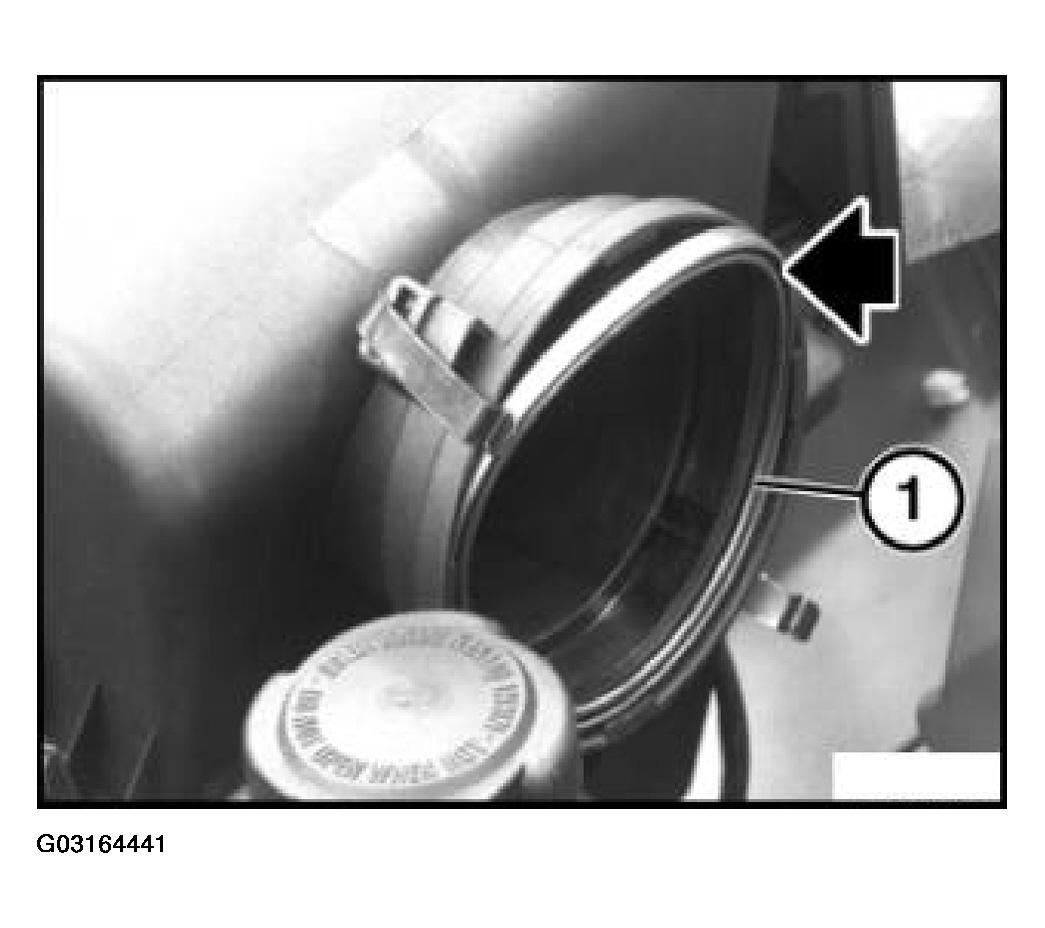

Fig 2: Checking Sealing Ring Between Air-Mass Flow Sensor And Intake Filter Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Coat sealing ring (1) with acid-free grease.

If intake hose is replaced:

Insert air-mass flow sensor in new intake hose.
