11 34 715 Replacing all valve springs (M52 / S52 / M52TU / M54 / M56)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: For special tools, refer to ENGINE - SPECIAL TOOLS .

11 0 342
11 0 345
11 1 045
11 1 065
11 1 441
11 3 030
11 3 250
(cylinder head removed)

Preliminary tasks are described in DISASSEMBLING AND ASSEMBLING CYLINDER HEAD .

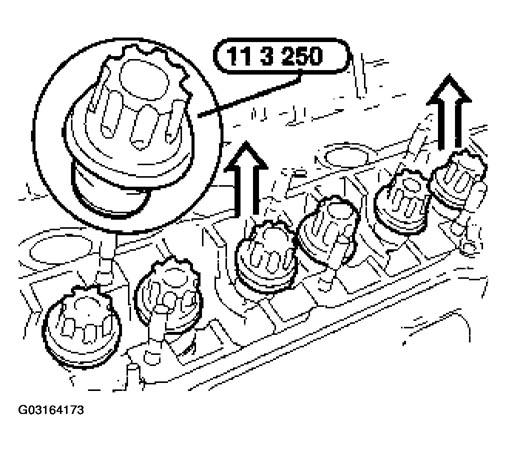

Brace bucket tappets with special tool 11 3 250.

Fig 1: Identifying Special Tool 11 3 250

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out bearing strip with bucket tappet.

Installation:

Only re-use used bucket tappets in the same tappet bore.

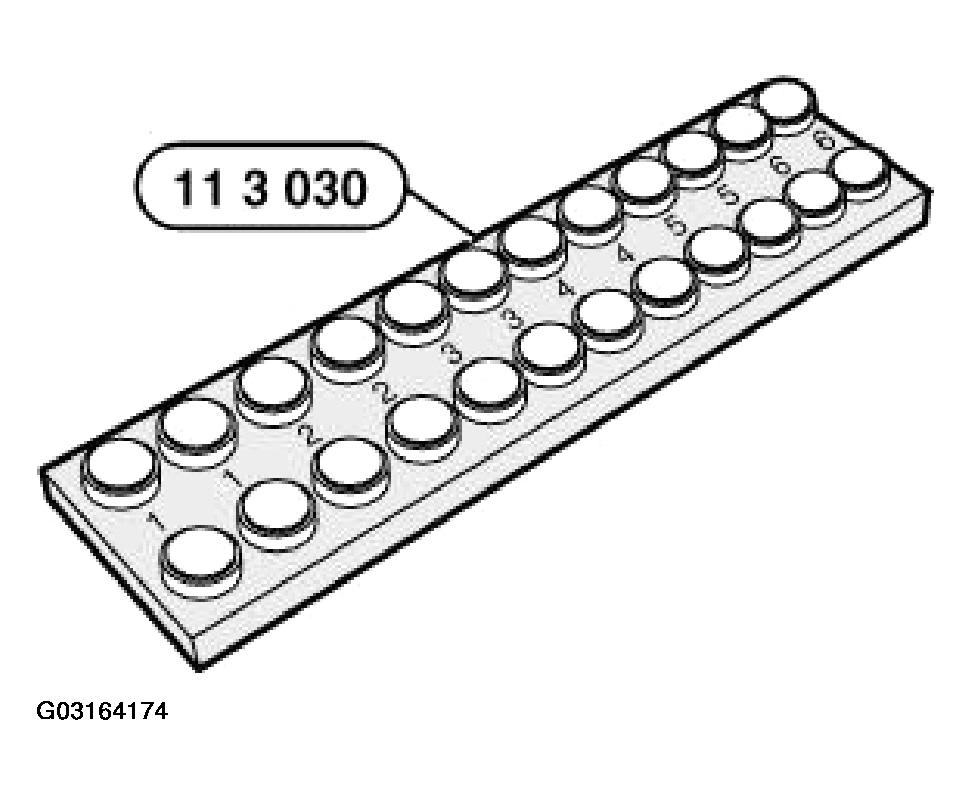

Arrange bucket tappets by cylinder and place on special tool 11 3 030 in correct order.

Fig 2: Identifying Special Tool 11 3 030

Courtesy of BMW OF NORTH AMERICA, INC.

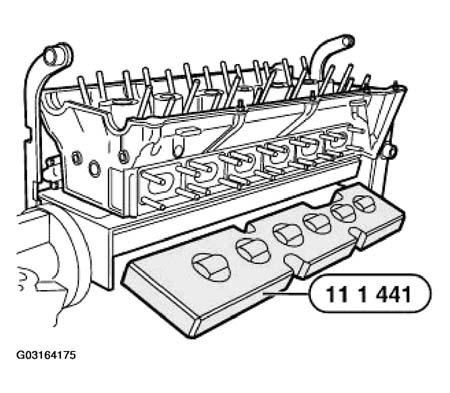

Insert special tool 11 1 441 from below in special tool 11 1 065 and secure with special tool 11 1 045.

Fig 3: Inserting Special Tool 11 1 441

Courtesy of BMW OF NORTH AMERICA, INC.

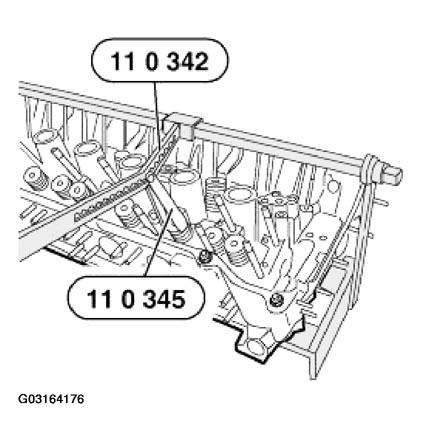

Align special tool 11 0 345 in direction of valve shaft and select appropriate groove in special tool 11 0 342.

Fig 4: Aligning Special Tools 11 0 345 And 11 0 342

Courtesy of BMW OF NORTH AMERICA, INC.

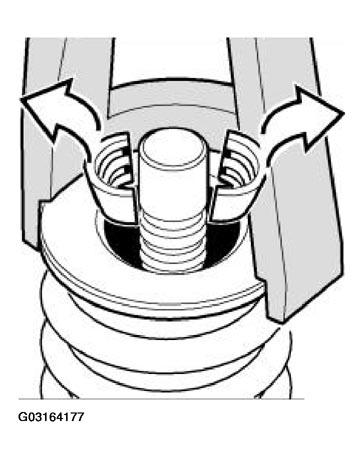

Press down valve spring on spring cap, top, and remove valve keys.

Remove valve spring and plate spring.

Fig 5: Removing Valve Spring And Plate Spring

Courtesy of BMW OF NORTH AMERICA, INC.

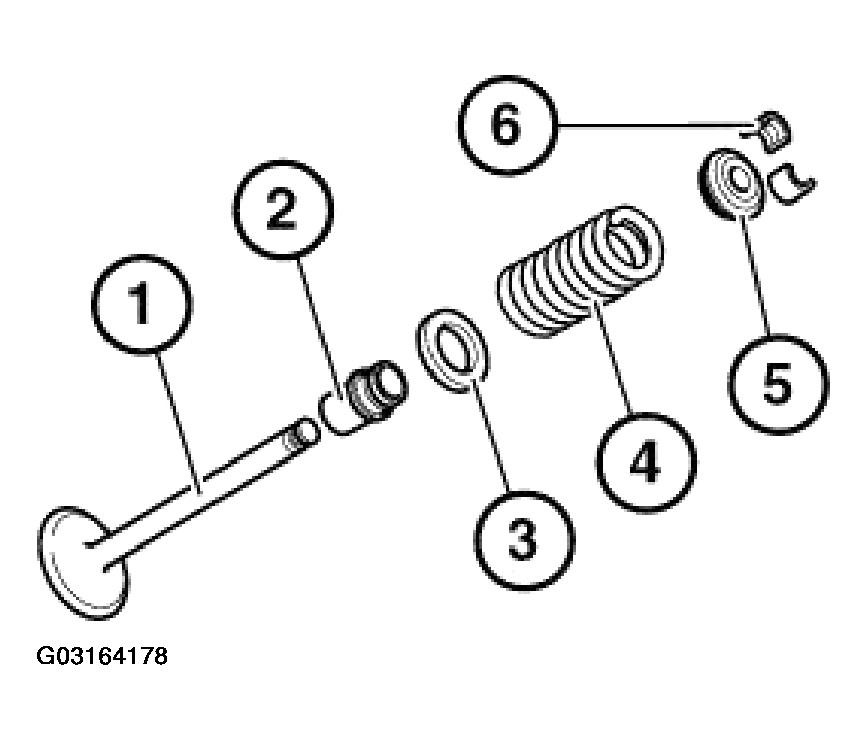

Arrangement:

Valve
Valve-stem seal
Lower plate spring
Valve spring
Top plate spring
Valve tapers

Fig 6: Identifying Valve, Valve-Stem Seal And Valve Spring
Courtesy of BMW OF NORTH AMERICA, INC.
