11 34 560 Replacing all valve stem seals (M52 / S52 / M52TU / M54 / M56)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: For special tools, refer to ENGINE - SPECIAL TOOLS .

11 1 200
11 1 480
11 1 960
(cylinder head removed)

Preliminary tasks are described in DISASSEMBLING AND ASSEMBLING CYLINDER HEAD . Remove all valve springs.

Remove valve stem seal with special tool 11 1 480.

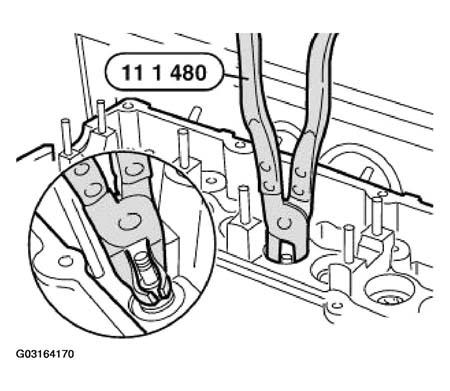

Fig 1: Removing Valve Stem Seal With Special Tool 11 1 480

Courtesy of BMW OF NORTH AMERICA, INC.

Lubricate valve stem with oil and insert valve. Fit special tool 11 1 960.

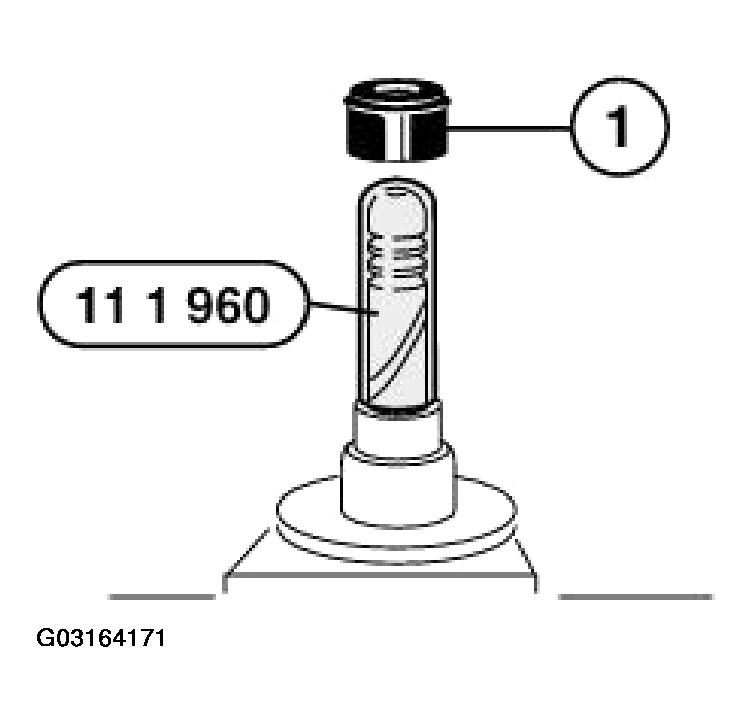

Fig 2: Fitting Special Tool 11 1 960

Courtesy of BMW OF NORTH AMERICA, INC.

Coat new valve stem seal (1) with oil and install.

Press valve stem seal firmly home by hand with special tool 11 1 200.

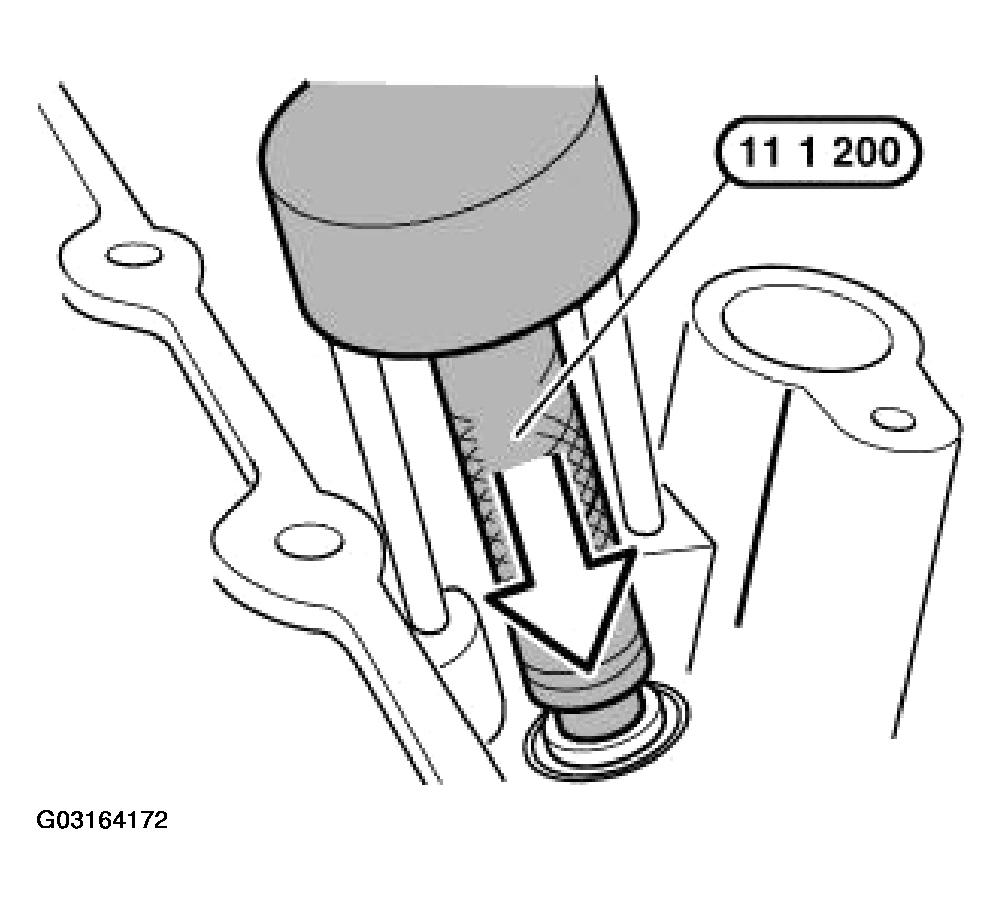

Fig 3: Pressing Valve Stem Seal Firmly Home

Courtesy of BMW OF NORTH AMERICA, INC.
