11 13 000 Removing and installing, sealing or replacing oil sump (M52TU / M54 / M56): Notes

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: For special tools, refer to ENGINE - SPECIAL TOOLS .

00 0 200
00 0 201
00 0 202
00 0 204
00 0 208

NOTE: To remove the oil sump, you must lower the front axle support.

There is no need to perform a front axle alignment check.

Assemble special tool 00 0 200 with special tools 00 0 201 / 00 0 202 / 00 0 204 / 00 0 208 and fit.

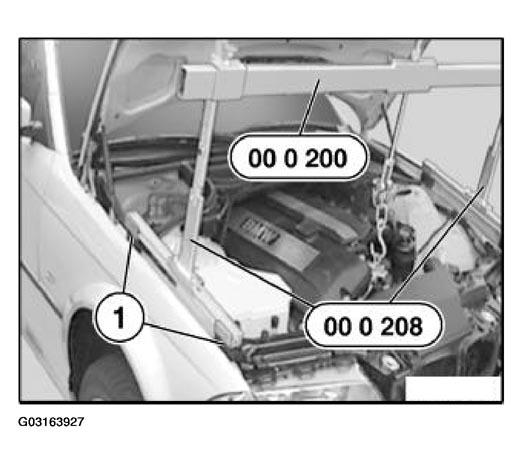

Fig 1: Identifying Special Tools 00 0 200 And 00 0 208

G03163927

Courtesy of BMW OF NORTH AMERICA, INC.

Secure special tool 00 0 200 to front suspension eye on engine.

NOTE: The supports (1) of special tool 00 0 208 must rest on the bolt connection of both side walls.

Tighten the screws (1 and 2).

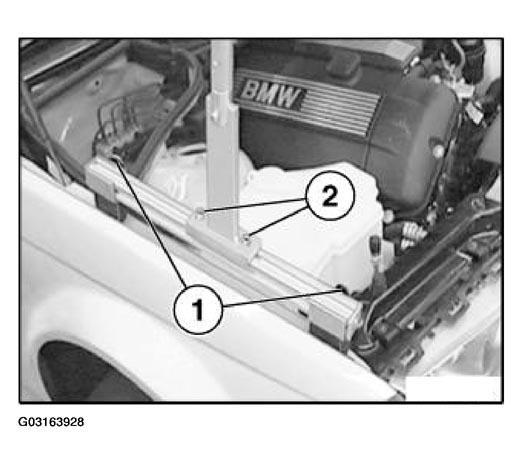

Fig 2: Tightening Screws

G03163928

Courtesy of BMW OF NORTH AMERICA, INC.

Raise engine with special tool 00 0 200 approx. 5 mm.

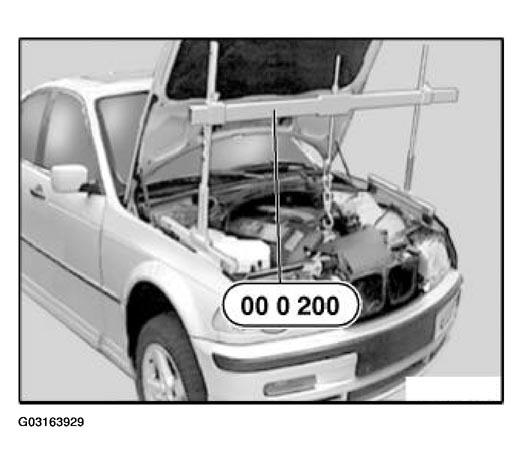

Fig 3: Raising Engine With Special Tool 00 0 200

G03163929

Courtesy of BMW OF NORTH AMERICA, INC.

Remove suction filter housing, refer to 13 71 000 REMOVE AND INSTALLING INTAKE FILTER HOUSING (M52TU, M54) .

Remove engine splash guard. See 51 11 000 REMOVING AND INSTALLING COMPLETE FRONT BUMPER (FROM 10/01)

Drain engine oil refer to 00 00 250 BMW ENGINE OIL SERVICE INCL. SUPPLEMENTARY SERVICE (M54 / M56) .

On vehicles with automatic transmission:

Disconnect oil lines from automatic transmission and from oil pan.

Release guide tube for dipstick.

NOTE: M52 TU and M54 only.

Detach return hose from cyclone oil separator on oil dipstick guide tube.

Remove oil dipstick guide tube upwards.

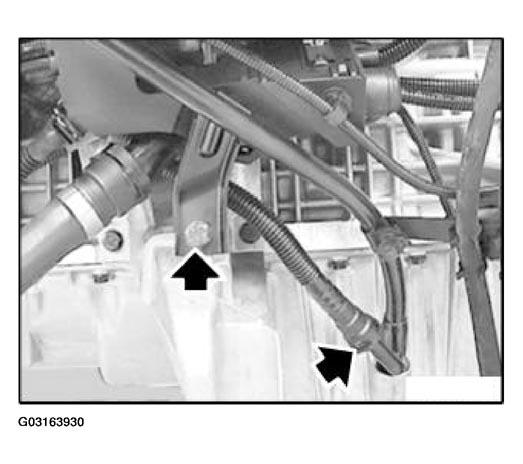

Fig 4: Removing Oil Dipstick Guide Tube

G03163930

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace O-ring.

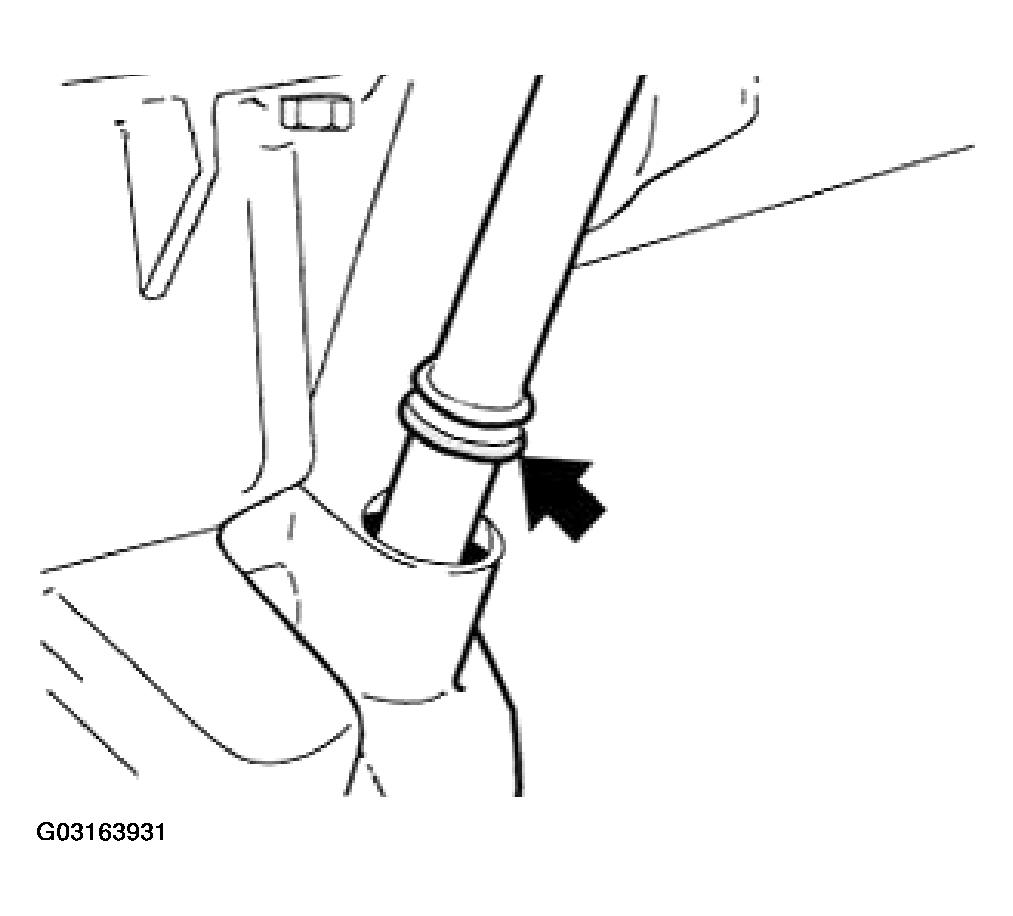

Fig 5: Replacing O-Ring

G03163931

Courtesy of BMW OF NORTH AMERICA, INC.

Remove front end reinforcement. See REINFORCEMENT CROSS BRACE

Detach steering spindle from steering gear.

Remove vane pump for power steering unit (lines remain connected). See POWER STEERING VANE PUMP (M52/M54)

Disconnect plug connection to oil level sensor.

Loosen top and unfasten bottom of left and right engine mounts.

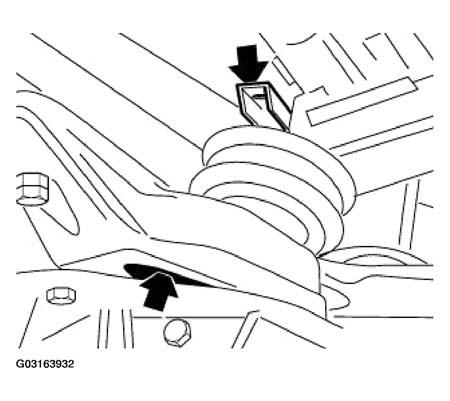

Fig 6: Loosening Top And Unfasten Bottom Of Left And Right Engine Mounts

G03163932

Courtesy of BMW OF NORTH AMERICA, INC.
