M52 / S52 only

Unfasten engine speed sensor.

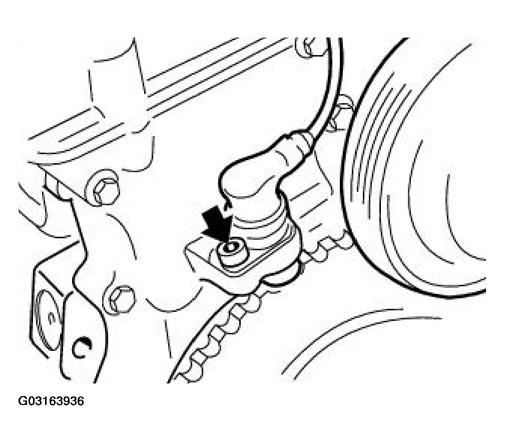

Fig 1: Unfastening Engine Speed Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Remove vibration damper. See 11 23 010 Removing and installing or replacing vibration damper (M52TU / M54 / M56)

Version where vibration damper and hub are two parts: Remove hub for vibration damper.

Remove oil sump. See 11 13 000 Removing and installing, sealing or replacing oil sump (M52TU / M54 / M56)

Drive out dowel pins from timing case cover towards rear.

(Mandrel diameter less than 5 mm)

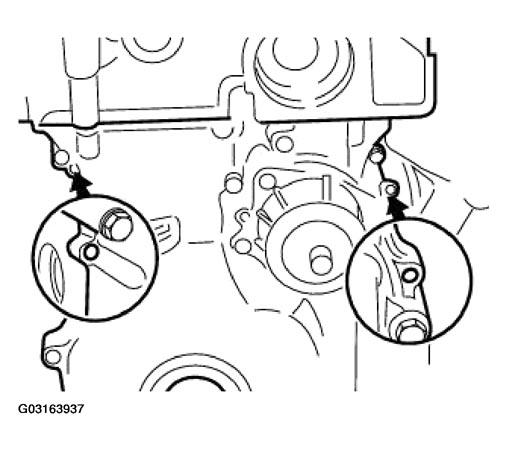

Fig 2: Identifying Dowel Pins

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew timing case cover to cylinder head bolts.

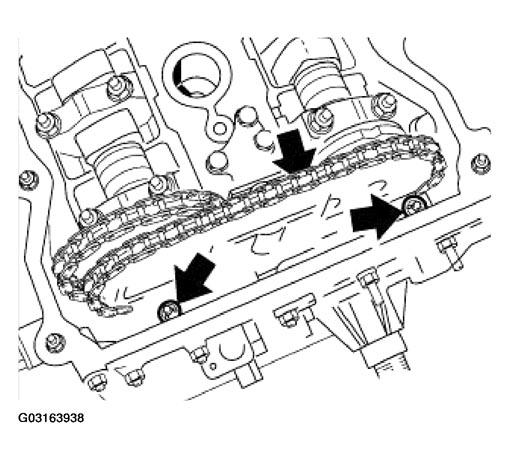

Fig 3: Unscrewing Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and remove timing case cover.

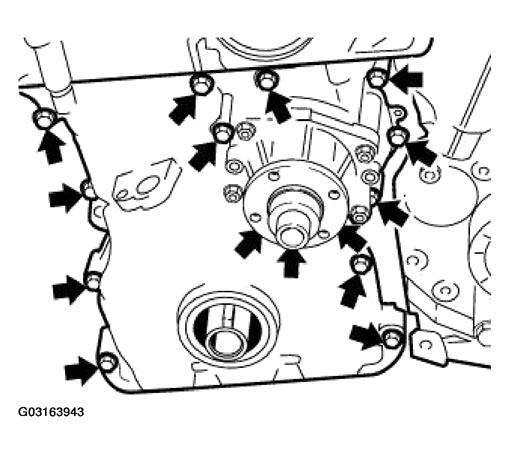

Fig 4: Removing Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean sealing surfaces.

Drive alignment pins into timing case cover until they protrude approx. 2 to 3 mm.

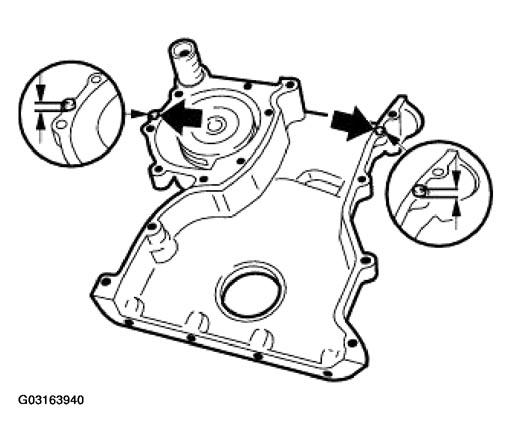

Fig 5: Identifying Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Secure new seals to timing case cover with a little grease.

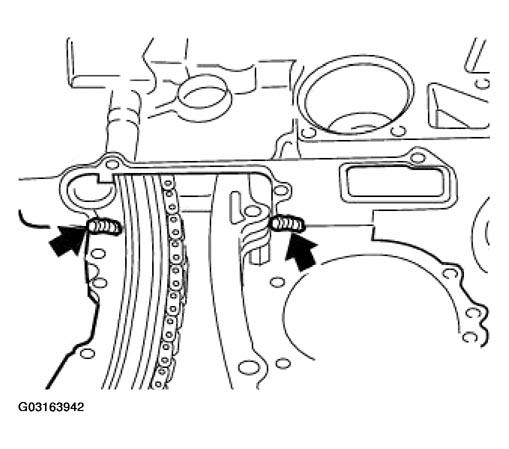

Fig 6: Securing New Seals To Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Sealing faces clean and free of seal debris.

Apply Drei Bond 1209 sealing compound at following points:

• A bead at the transitions to the cylinder head gasket on the left and right.
• Thinly and evenly to the entire sealing face of the timing case cover to the cylinder head gasket.

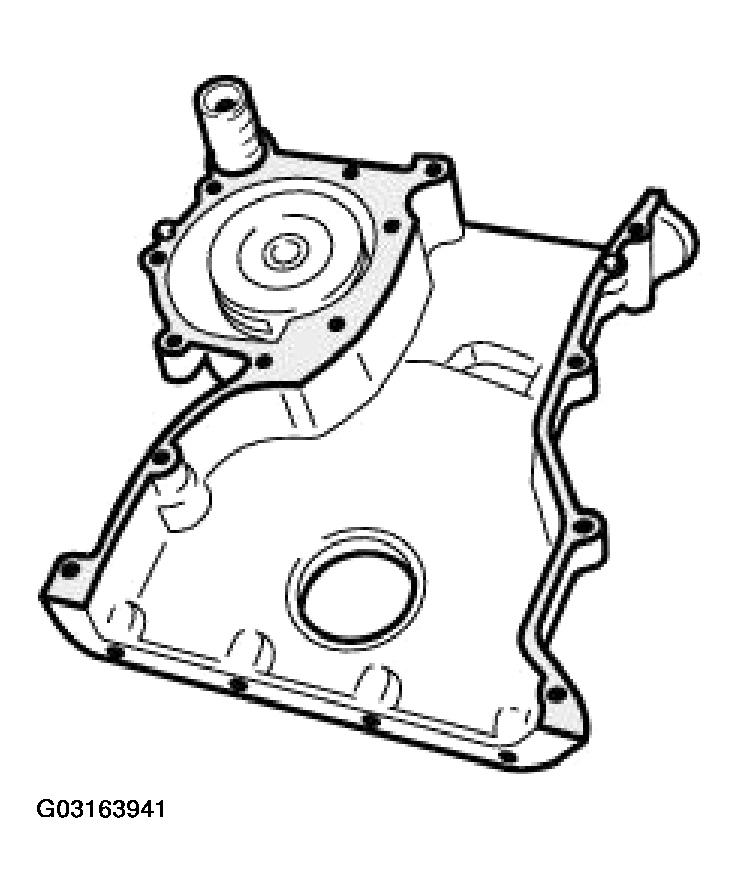

  Fig 7: Identifying Bead

  Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install timing case cover, insert all screws and initially tighten to approx. 5 Nm.

Fig 8: Inserting All Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Drive in dowel pins from front until flush.

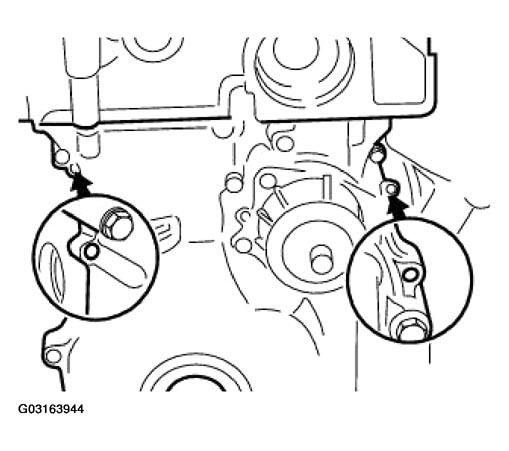

Fig 9: Identifying Dowel Pins

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fully tighten all screws in alternate sequence.

Fig 10: Tightening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Insert screws, tighten screw connection for timing case cover to cylinder head.

Fig 11: Tightening Screw Connection For Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Replace radial seal in lower timing case cover.

Assemble engine.
