11 12 729 Checking cylinder head for watertightness (M52TU / M54 / M56)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: For special tools, refer to ENGINE - SPECIAL TOOLS .

11 7 390
11 7 391
11 7 392
11 7 393
11 7 394
11 7 395
11 7 396
11 7 397
11 7 398
1. (Cylinder head dismantled)

Prepare special tool kit 11 7 390.

NOTE: Special tool kit 117390 consists of special tools 11 7 391 / 11 7 392 / 11 7 393 / 11 7 394 / 11 7 395 / 11 7 396 / 11 7 397 / 11 7 398.

Place special tools 11 7 391 /11 7 392 on cylinder head sealing surface and screw down with cylinder head bolts.

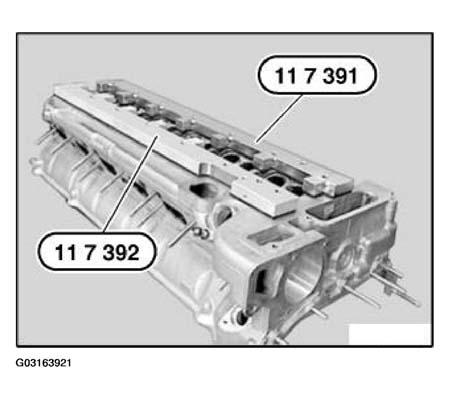

Fig 1: Identifying Special Tools 11 7 391 And 11 7 392

G03163921

Courtesy of BMW OF NORTH AMERICA, INC.

Turn back screw (1).

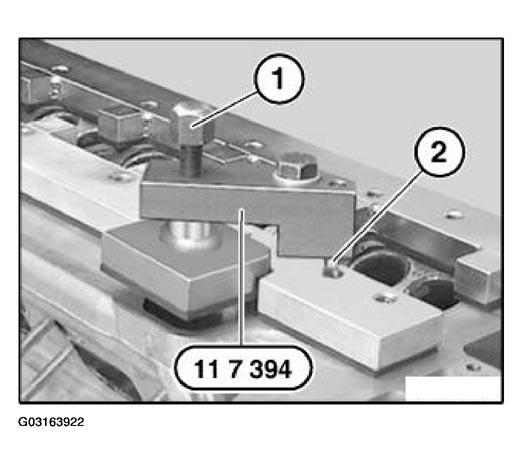

Fig 2: Turning Back Screw

G03163922

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: special tool 11 7 394 is secured with a pin (2).

Fit special tool 11 7 394.

Insert screw (1) by hand until special tool 11 7 393 rests on sealing surface.

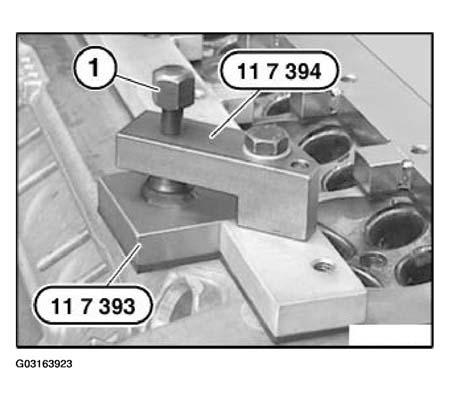

Fig 3: Inserting Screw By Hand Until Special Tool 11 7 393 Rests On Sealing Surface

G03163923

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screw (1) by approx. a half to one turn.

Check sealing rings (1) and coat with water as anti-friction coating. Insert special tool 11 7 395 and tighten down.

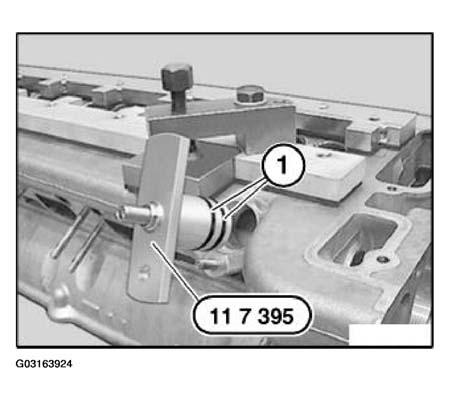

Fig 4: Checking Sealing Rings And Coat With Water

G03163924

Courtesy of BMW OF NORTH AMERICA, INC.

Seal coolant apertures with special tool kit 11 7 390.

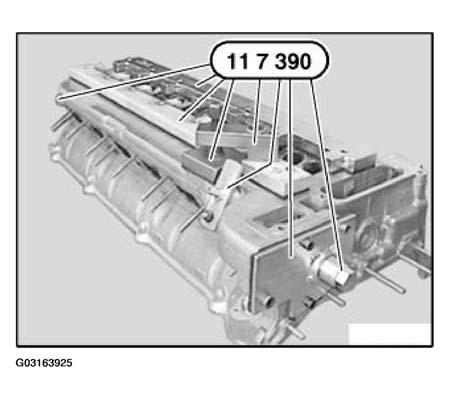

Fig 5: Identifying Special Tool Kit 11 7 390

G03163925

Courtesy of BMW OF NORTH AMERICA, INC.

Connect compressed air to special tool 11 7 395.

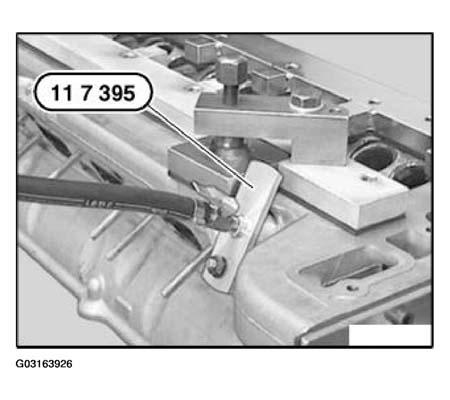

Fig 6: Connecting Compressed Air To Special Tool 11 7 395

G03163926

Courtesy of BMW OF NORTH AMERICA, INC.

Immerse cylinder head in a water bath. Inspection pressure 4.5 bar.

Check cylinder head for escaping air (cracks).

NOTE: If necessary, soften the bath water with a cleaning agent.
