11 12 595 Checking a valve guide for wear (M52 / S52 / M52TU / M54 / M56)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

(Valve removed)

To measure tilt clearance, install a new valve so that end of valve stem is flush with valve guide.

Attach dial gauge and measure tilt clearance.

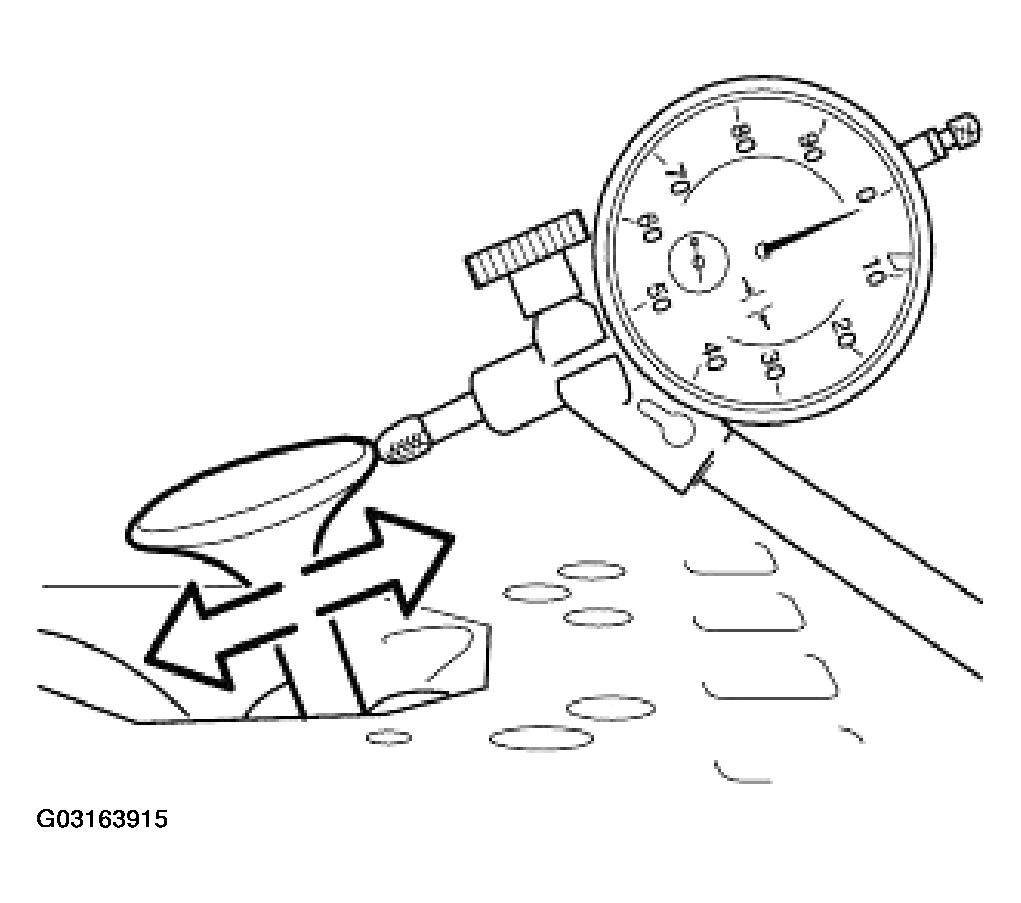

Fig 1: Attaching Dial Gauge And Measure Tilt Clearance

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Max. permissible tilt clearance is 0.5 mm.

NOTE: If tilt clearance is excessive, valve guide is reamed out and a repair valve with a larger shaft diameter is installed.

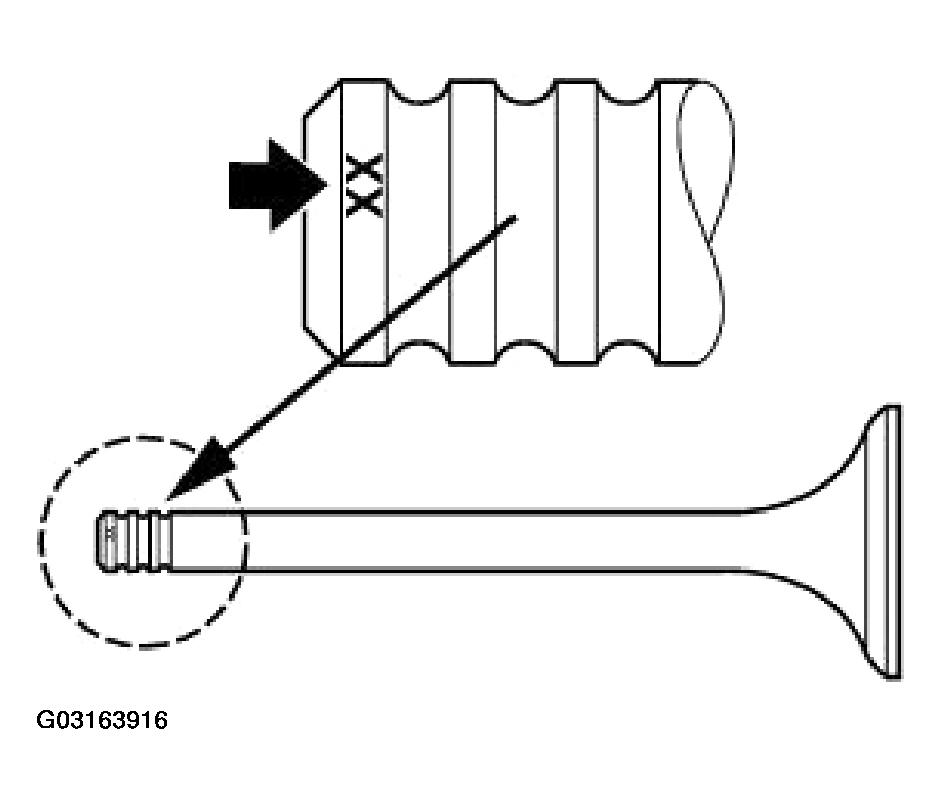

Fig 2: Identifying Tilt Clearance

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, ream valve guide, refer to 11 12 600 REAMING A VALVE GUIDE (M52 / S52 / M52TU / M54 / M56) .
