11 12 527 Remachining a valve seat (M52 / S52 / M52TU / M54 / M56)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: For special tools, refer to ENGINE - SPECIAL TOOLS .

00 3 520
00 3 580

(Cylinder head dismantled)

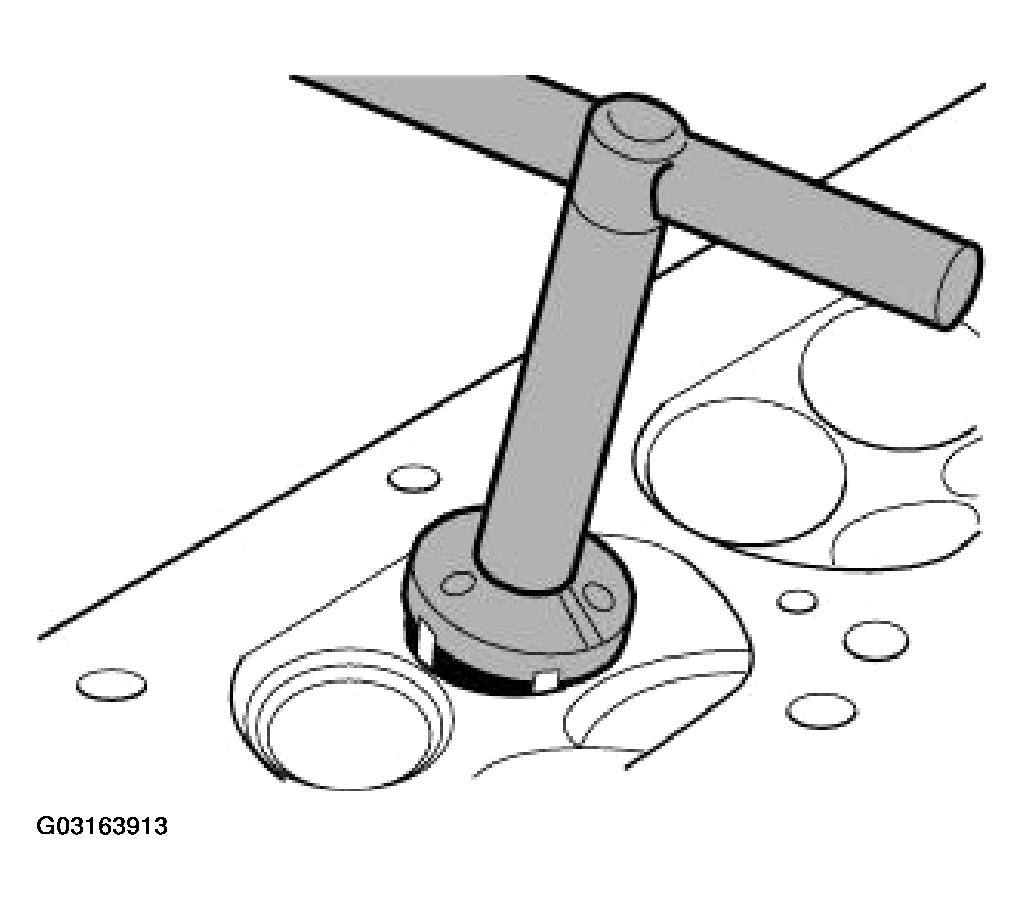

Machine valve seat surface with special tool 00 3 520 or with special tool 00 3 580 in accordance with manufacturer's instructions.

Fig 1: Identifying Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: After machining the valve seat surface, remachine the outside and inside diameters with a correction milling tool to the pre-specified diameter to produce valve seat width (5).

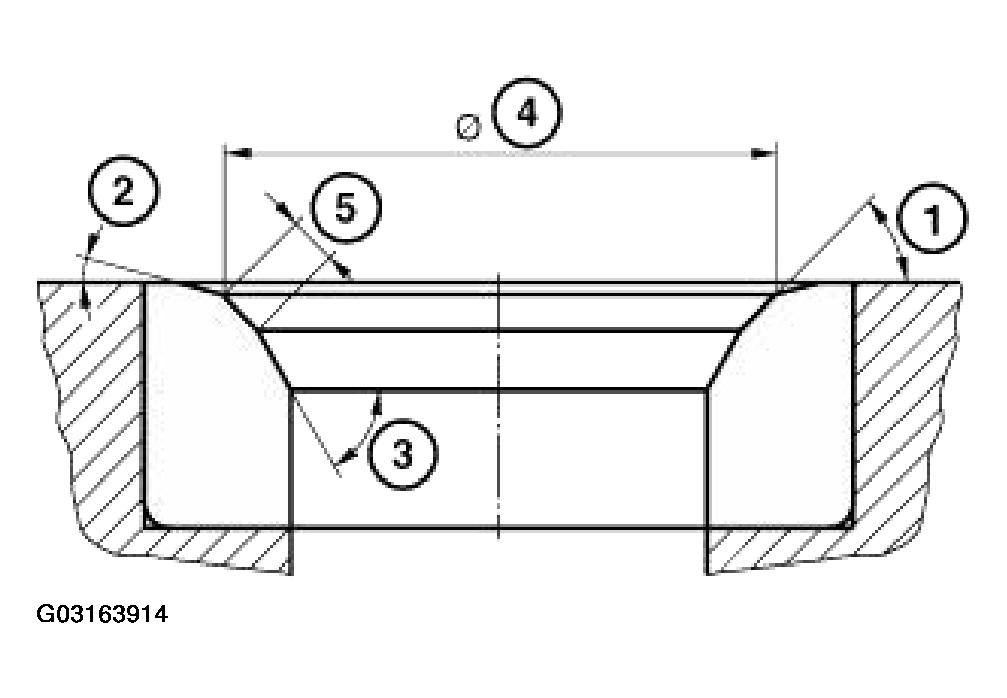

Valve-seat angle
Correction angle, outside

Fig 2: Identifying Valve-Seat Angle

Courtesy of BMW OF NORTH AMERICA, INC.
