11 12 100 Removing and installing/replacing cylinder head (M52TU / M54 / M56): Removal

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Removal of cylinder head is described separately from installation.

Remove double VANOS adjustment unit, refer to 11 36 010 REMOVING AND INSTALLING OR REPLACING DOUBLE VANOS ADJUSTMENT UNIT (M52TU / M54 / M56) .

Remove camshafts with bearing strips, refer to 11 31 001 REPLACING CAMSHAFT (M52TU / M54 / M56) .

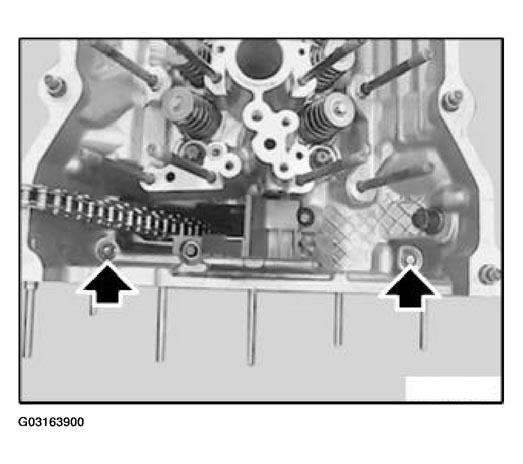

Release screw connection between timing case cover and cylinder head.

Fig 1: Releasing Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.

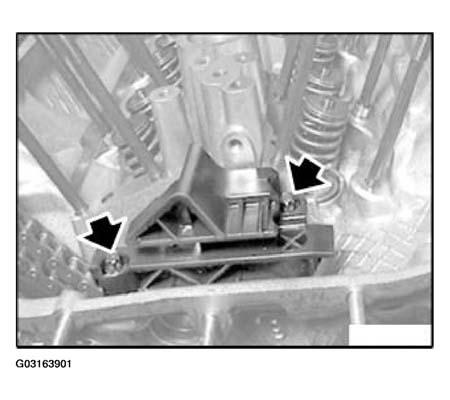

Release screws, remove chain guide.

Fig 2: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

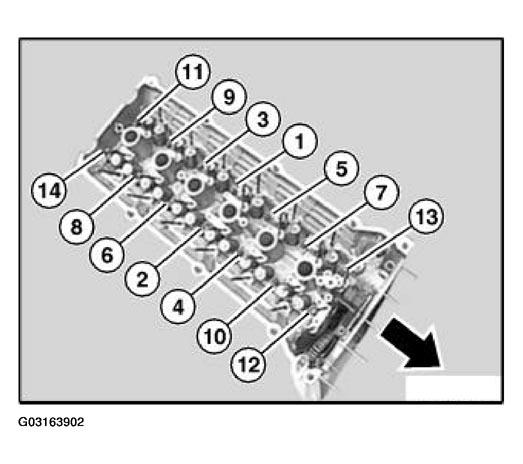

Release cylinder head bolts from outside to inside in sequence 14 to 1.

Fig 3: Releasing Cylinder Head Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Lift off cylinder head.
