11 31 001 Replacing camshaft (M52TU / M54 / M56): Removal

Removal of camshafts is described separately from installation. The assembly sequence for removal and installation is different.

Remove VANOS adjustment unit.

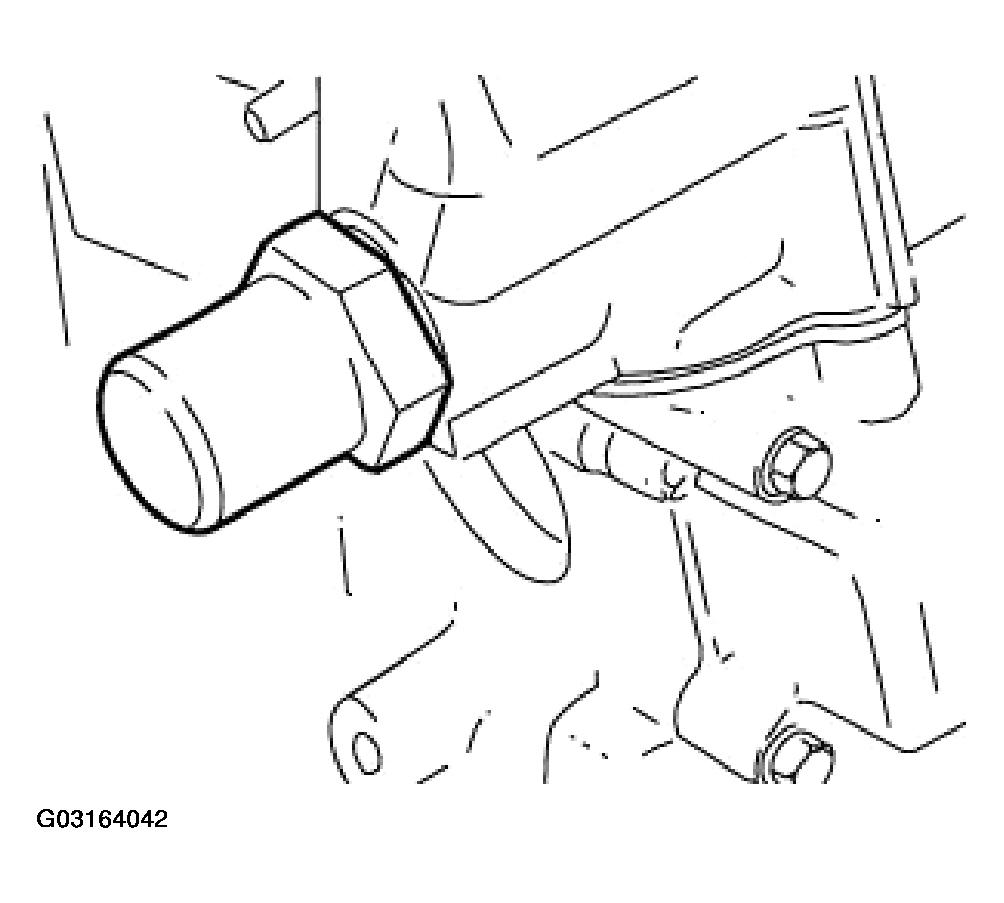

Unfasten cylinder for chain tensioning piston.

Fig 1: Unfastening Cylinder For Chain Tensioning Piston

Courtesy of BMW OF NORTH AMERICA, INC.

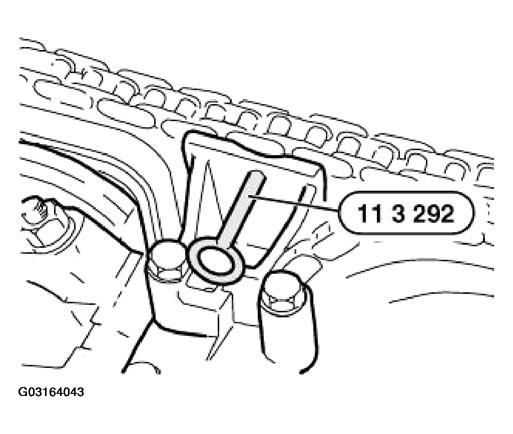

Press down secondary chain tensioner at top and lock with special tool 11 3 292.

Fig 2: Pressing Down Secondary Chain Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

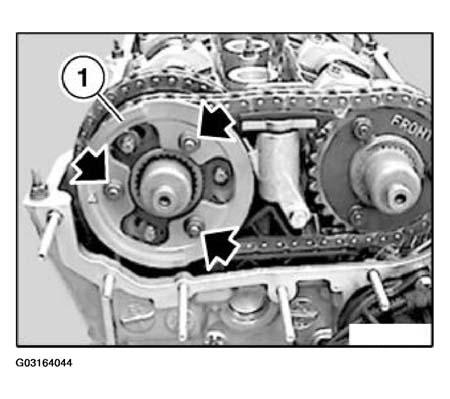

Release nuts, remove sensor gear (1).

Fig 3: Releasing Nuts Removing Sensor Gear

Courtesy of BMW OF NORTH AMERICA, INC.

Remove plate spring (2).

Fig 4: Removing Plate Spring

Courtesy of BMW OF NORTH AMERICA, INC.

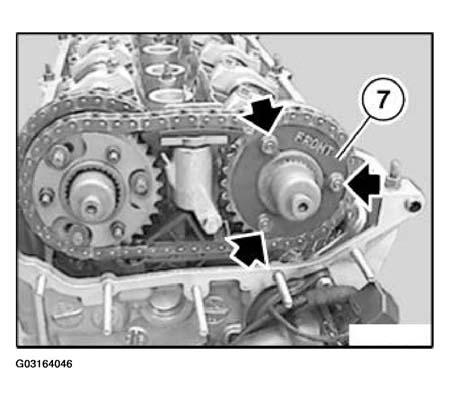

Release nuts on inlet side and remove corrugated washer (7).

Fig 5: Releasing Nuts On Inlet Side

Courtesy of BMW OF NORTH AMERICA, INC.

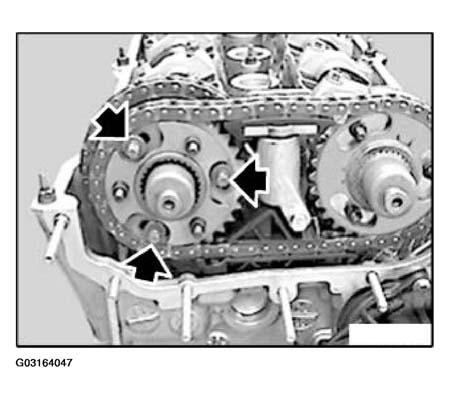

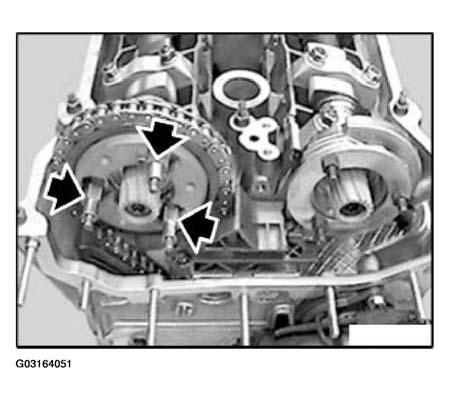

Unfasten screws.

Fig 6: Unfastening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

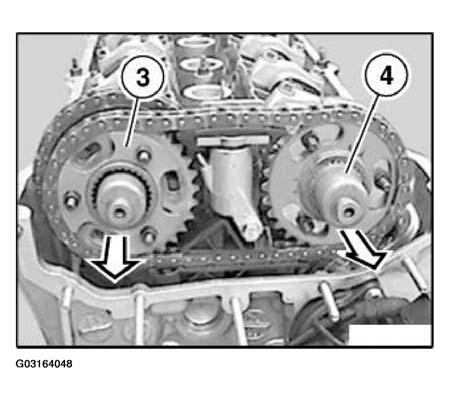

Lift off exhaust and inlet chain wheels together with chain, friction washer (3) and toothed shaft (4).

Fig 7: Identifying Friction Washer And Toothed Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

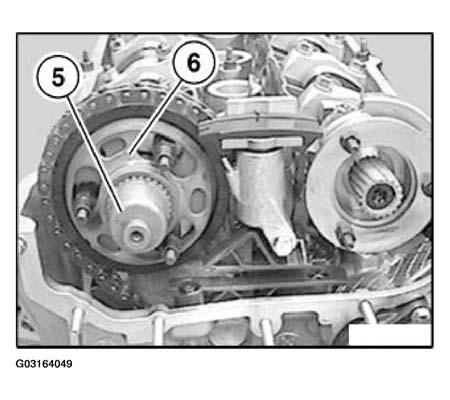

Remove toothed shaft (5) with toothed sleeve (6).

Fig 8: Removing Toothed Shaft With Toothed Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

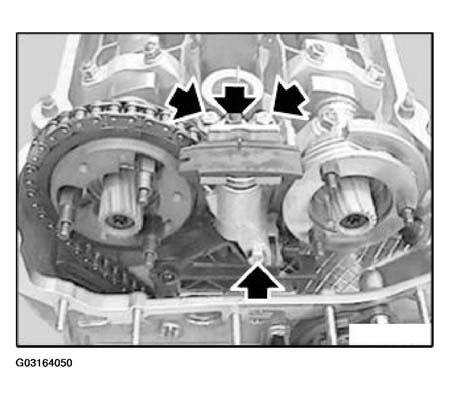

Unfasten screws. Remove secondary chain tensioner.

Fig 9: Unfastening Screws Removing Secondary Chain Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw-in pin.

Fig 10: Releasing Screw-In Pin

Courtesy of BMW OF NORTH AMERICA, INC.

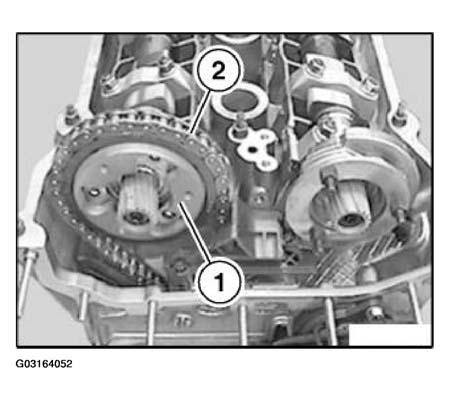

Feed chain wheel (1) towards front out of timing chain (2).

Fig 11: Feeding Chain Wheel

Courtesy of BMW OF NORTH AMERICA, INC.

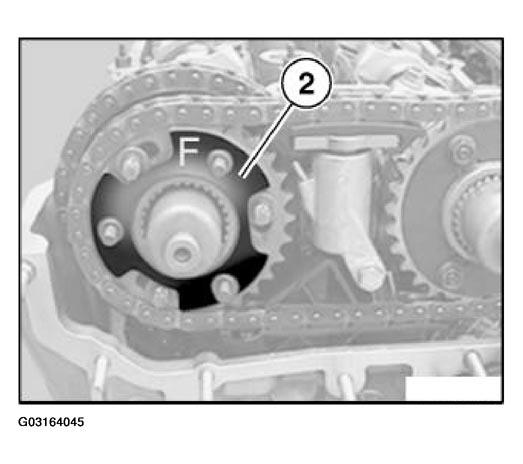

Fig 12: Identifying Timing Chain

Courtesy of BMW OF NORTH AMERICA, INC.

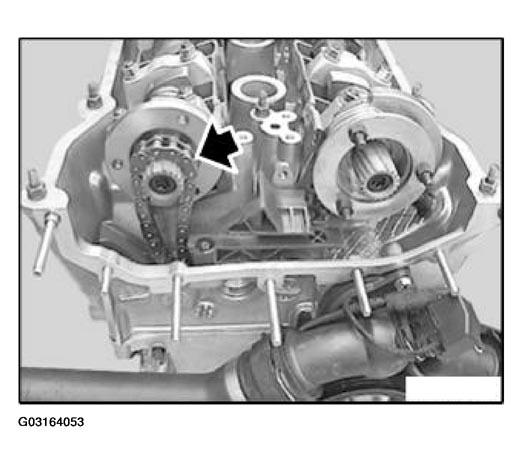

If necessary, release screw-in pin on inlet side.

Remove thrust washer.

Fig 13: Removing Thrust Washer

Courtesy of BMW OF NORTH AMERICA, INC.

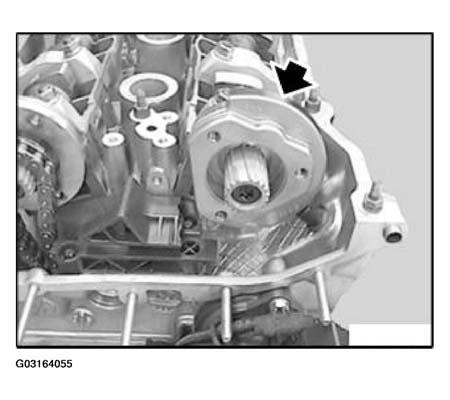

Remove sensor gear.

Fig 14: Removing Sensor Gear

Courtesy of BMW OF NORTH AMERICA, INC.

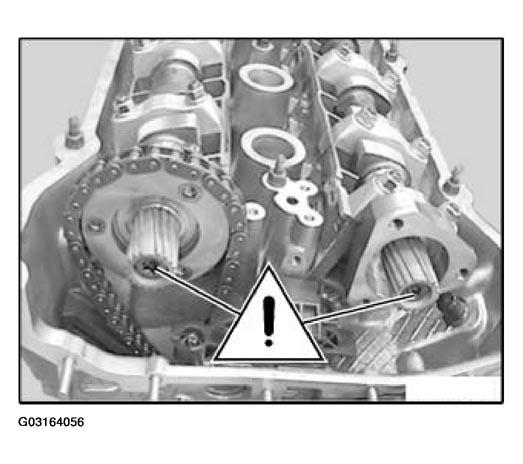

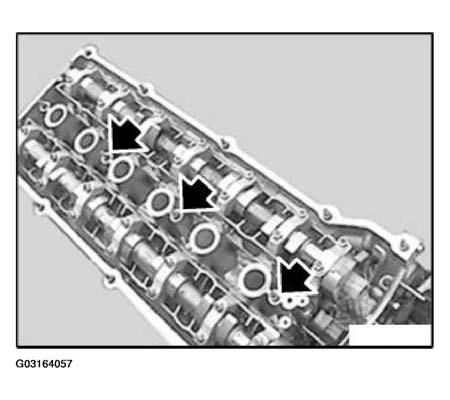

Fig 15: Identifying Cam Shaft Screws

Courtesy of BMW OF NORTH AMERICA, INC.

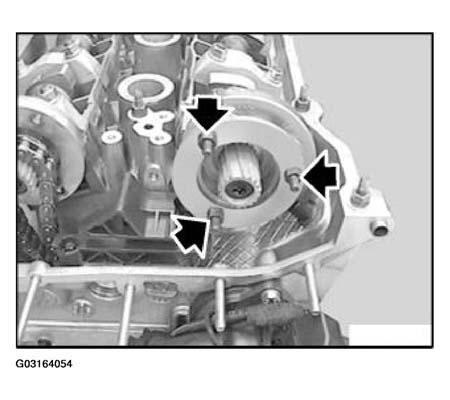

Unscrew studs.

Fig 16: Unscrewing Studs

Courtesy of BMW OF NORTH AMERICA, INC.

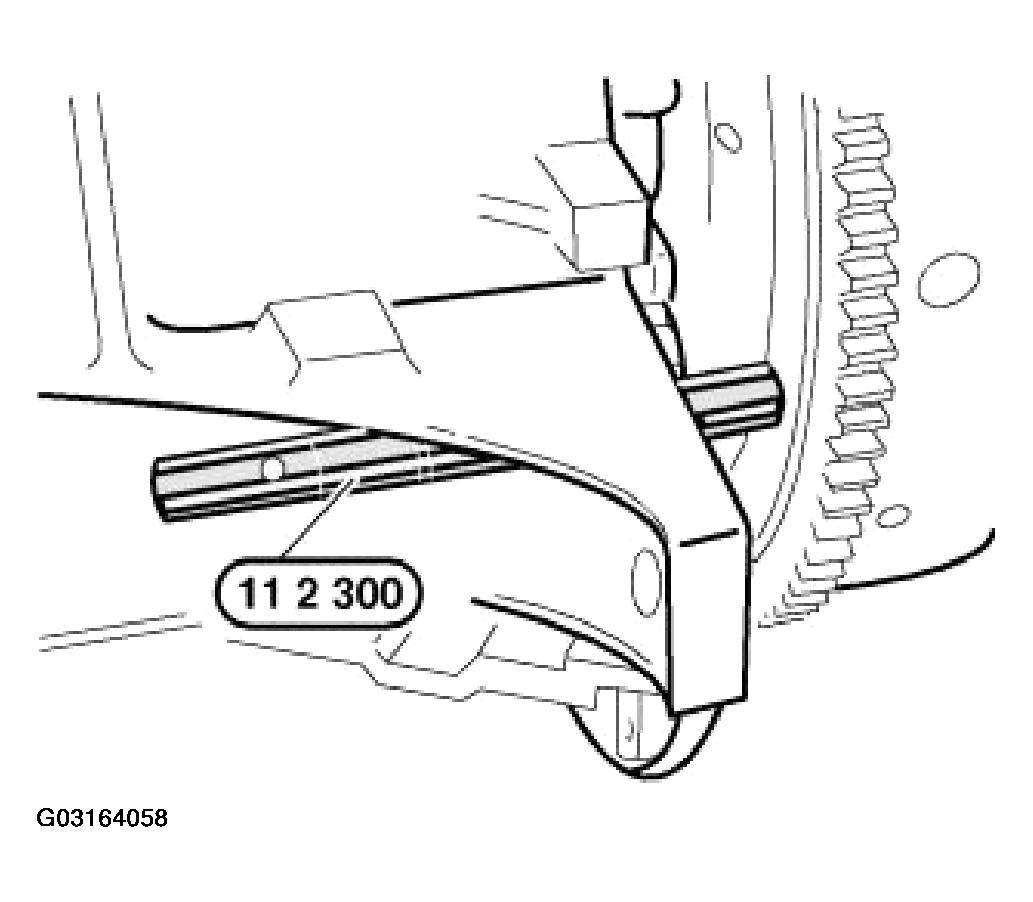

Pull special tool 11 2 300 back until flywheel is no longer secured in position.

Fig 17: Pulling Special Tool 11 2 300

Courtesy of BMW OF NORTH AMERICA, INC.

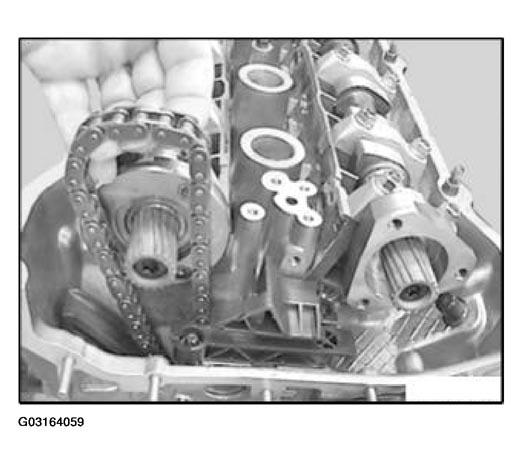

Lift timing chain and hold under tension.

Fig 18: Lifting Timing Chain And Hold Under Tension

Courtesy of BMW OF NORTH AMERICA, INC.

Rotate engine against direction of engine rotation approx. 30° using the central bolt.

Fig 19: Identifying Bearing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Fit special tool 11 3 260 to cylinder head and screw into spark plug threads in cylinders 1 and 4.

Fig 20: Identifying Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

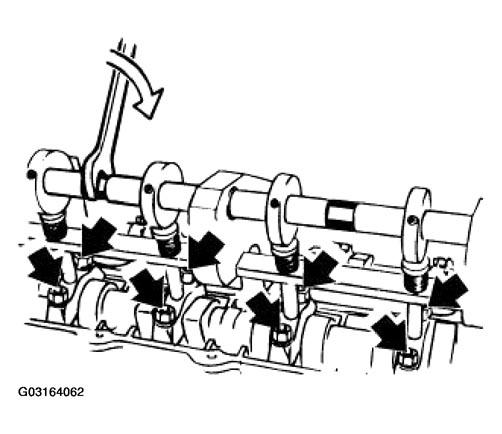

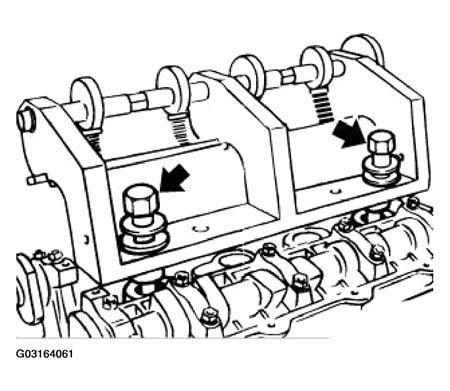

Turn the eccentric shaft to tension the bearing caps.

Fig 21: Turning The Eccentric Shaft To Tension The Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

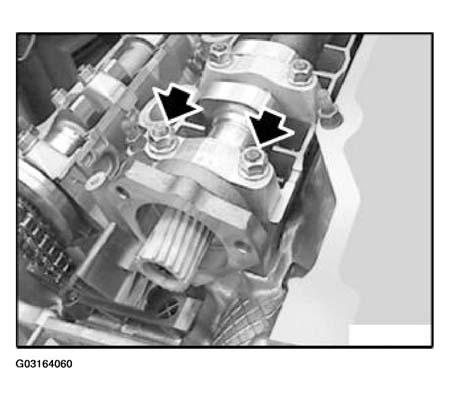

Unfasten nuts on bearing cover.

Relieve tension on eccentric shaft and remove special tool 11 3 260.

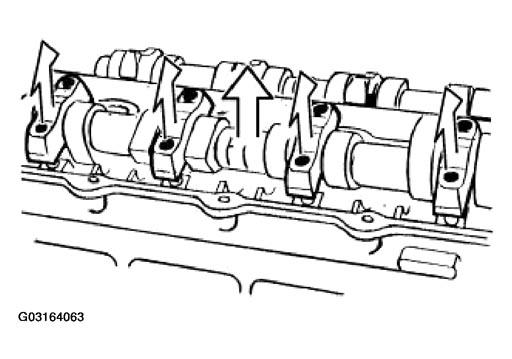

Remove bearing covers and place to one side in orderly fashion. Remove camshaft.

Fig 22: Removing Bearing Covers

Courtesy of BMW OF NORTH AMERICA, INC.

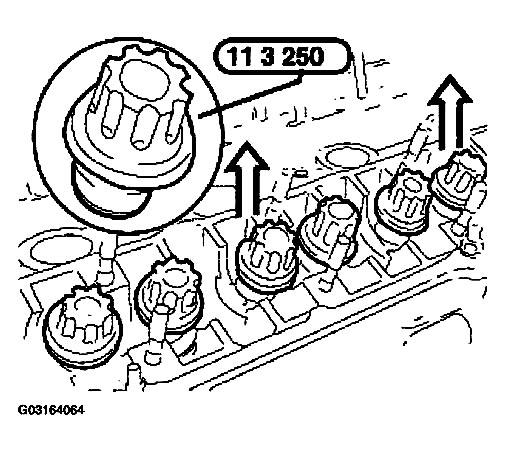

Locate bucket tappets in bearing strip with special tool 11 3 250.

Lift out complete bearing strip with bucket tappet.

Fig 23: Identifying Bearing Strip With Bucket Tappet

Courtesy of BMW OF NORTH AMERICA, INC.

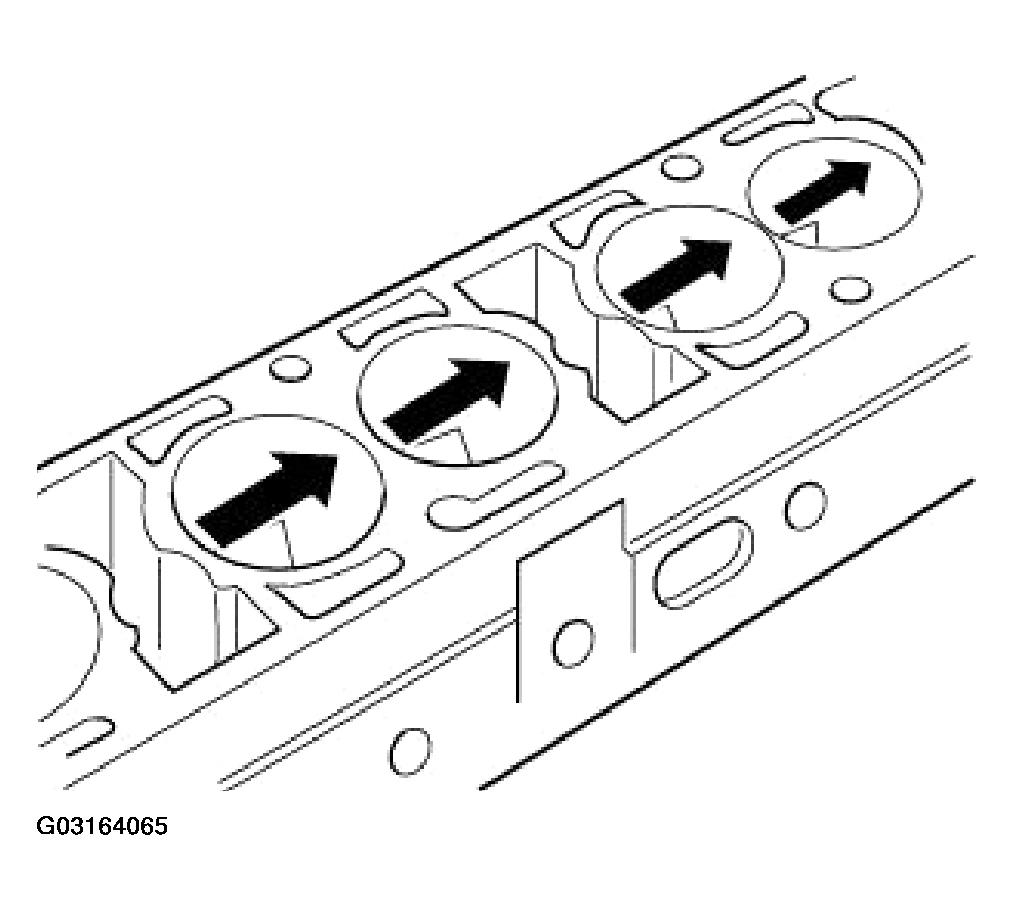

Check bearing points on bucket tappets for signs of wear (scoring).

Fig 24: Checking Bearing Points On Bucket Tappets

Courtesy of BMW OF NORTH AMERICA, INC.

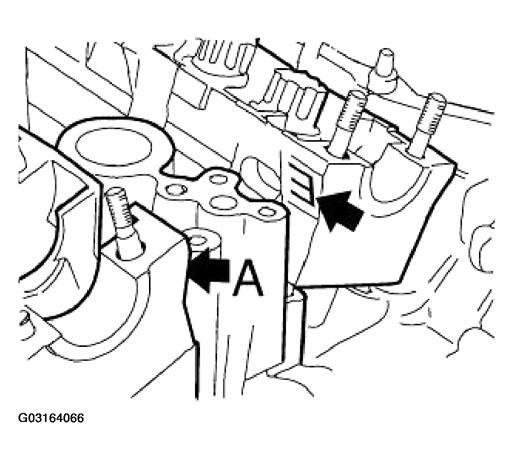

Bearing strips are marked "A" for exhaust side and "E" for inlet side.

Fig 25: Bearing Strips Are Marked "A" For Exhaust Side And "E" For Inlet Side

Courtesy of BMW OF NORTH AMERICA, INC.

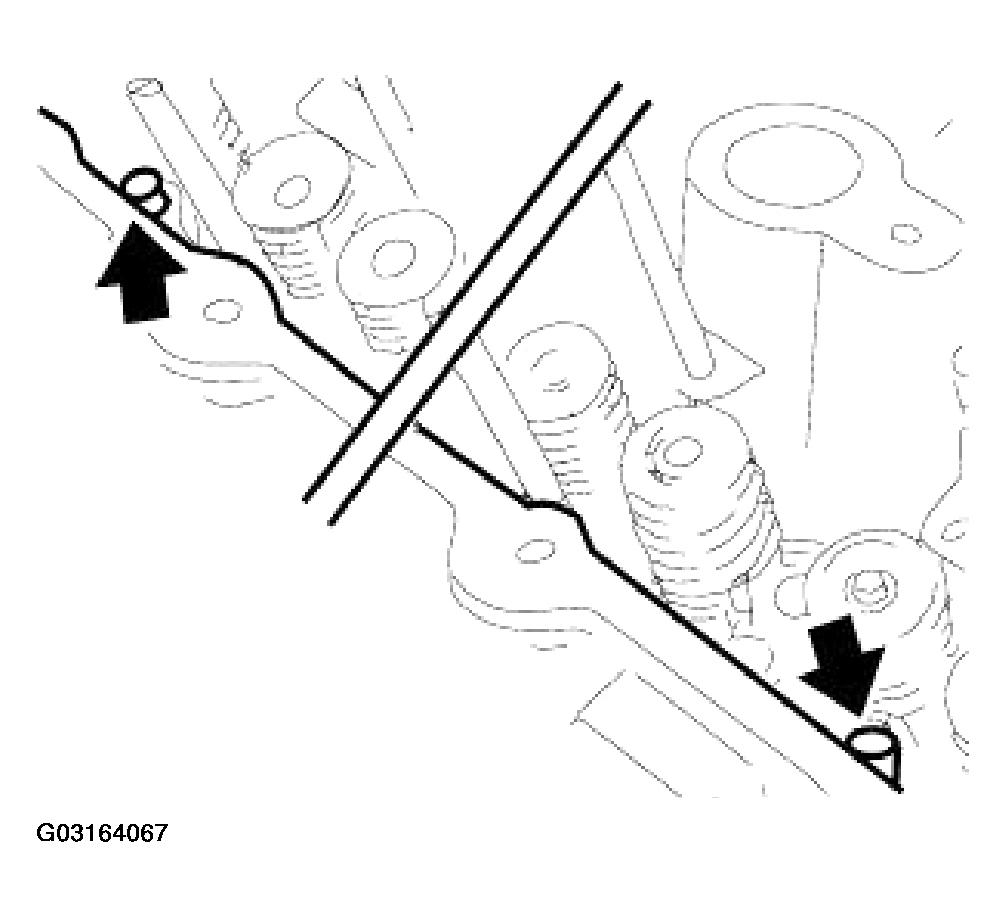

Note centering dowels on retaining pins at bearing points 2 and 7.

Install bearing strips.

Fig 26: Installing Bearing Strips

Courtesy of BMW OF NORTH AMERICA, INC.
