66 20 540 Removing And Installing/Replacing A Rear Ultrasonic Transducer (Park Distance Control)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove body molding for rear bumper, refer to 51 12 432 REPLACING CENTRAL BODY MOLDING ON REAR BUMPER

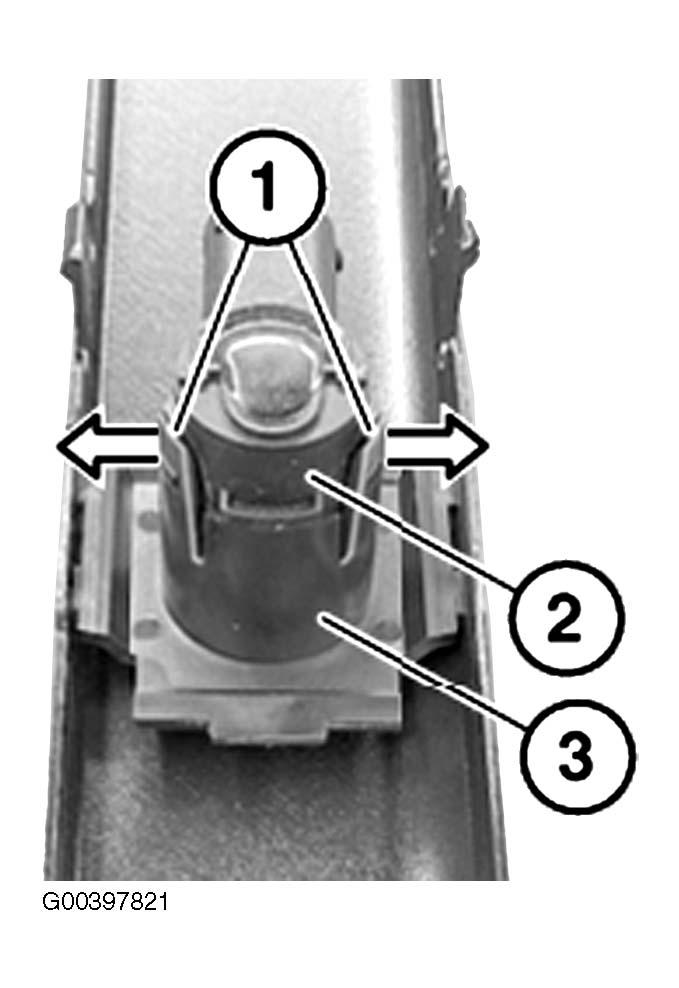

Unlock catches (1) and pull ultrasonic transducer (2) out of fixture (3).

Fig 1: Removing Ultrasonic Transducer

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining hooks (1) of ultrasonic transducer (2) must engage audibly in mountings (3).

Fig 2: Installing Ultrasonic Transducer

Courtesy of BMW OF NORTH AMERICA, INC.
