66 31 001 Adjusting Acc Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

36 1 100
36 1 130

Lever out cap (1). Carry out adjustment of ACC sensor (2) with special tool 36 1 130 by means of adjusting screws (3).

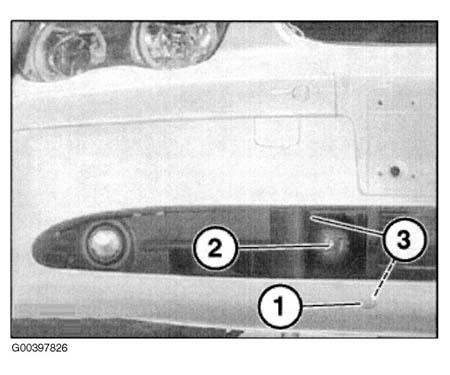

Fig 1: Adjusting ACC Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Special tool required: Active Cruise Control ACC adjusting device, complete. Order number: 81 10 0 021 292 Consisting of:

Mirror, complete
Wheel laser
Slotted diaphragm
Control bracket (for initial installation of rail)
Rail
Setup and operating instructions (not shown)

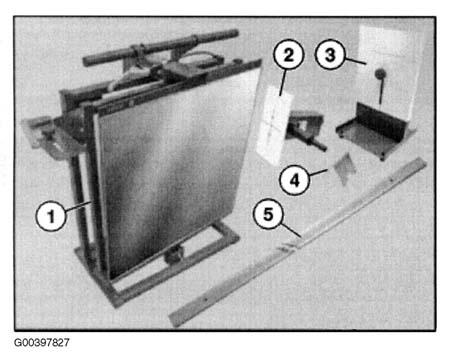

Fig 2: Locating Special Tool Components

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: A holder which is not included in the scope of delivery is required to support the wheel laser. Use either the quick-action clamp from the existing KDS or ACC wheel holder (36 1 100).

NOTE: Follow instructions for ACC adjusting device.
