Causes Of Excessive Attenuation: Stretching

WARNING: This page does not describe the selected car, but rather 59 other vehicles, including the 2009 BMW M5, 2009 BMW 650i, 2009 BMW 550i, 2008 BMW M5, and 2008 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

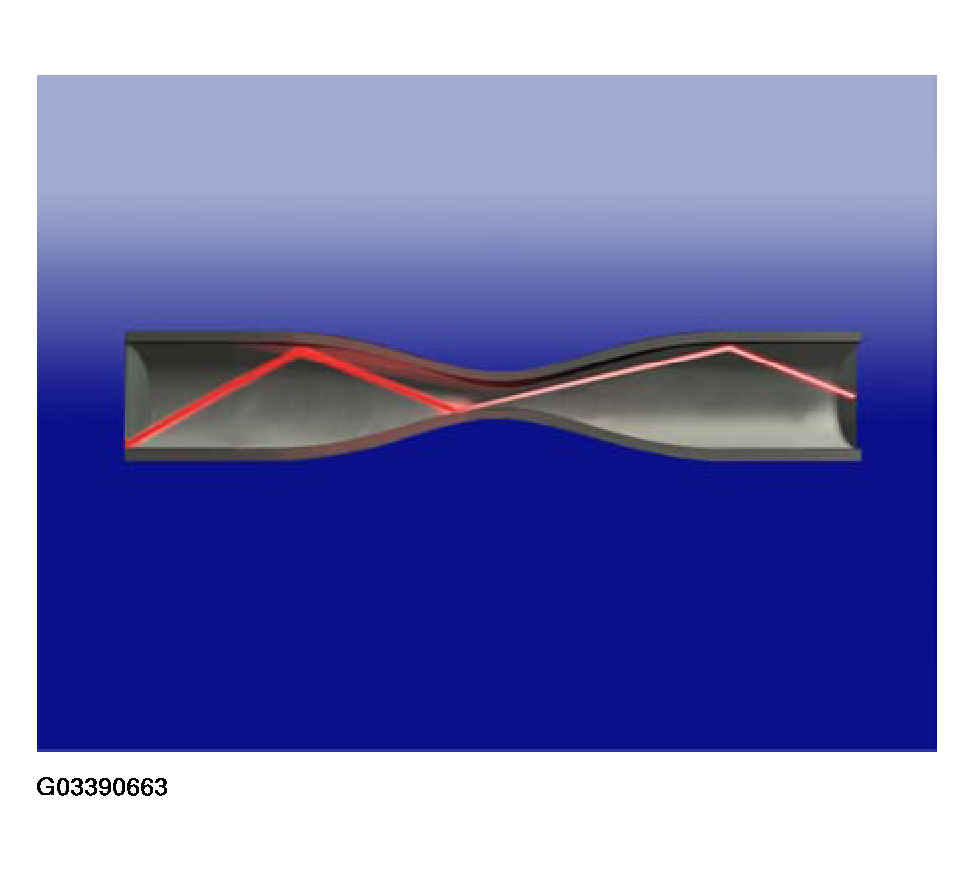

Fig 1: Identifying Types Of Cable Failure (Stretching)
G03390663Courtesy of BMW OF NORTH AMERICA, INC.

Overstretching of the fiber optic cables, caused by pulling for example, can destroy them.

Stretching reduces the cross-sectional area of the fiber core. Restricted passage of light is the end result.
