Dirty or scratched Fiber Optic Cable Ends

WARNING: This page does not describe the selected car, but rather 59 other vehicles, including the 2009 BMW M5, 2009 BMW 650i, 2009 BMW 550i, 2008 BMW M5, and 2008 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

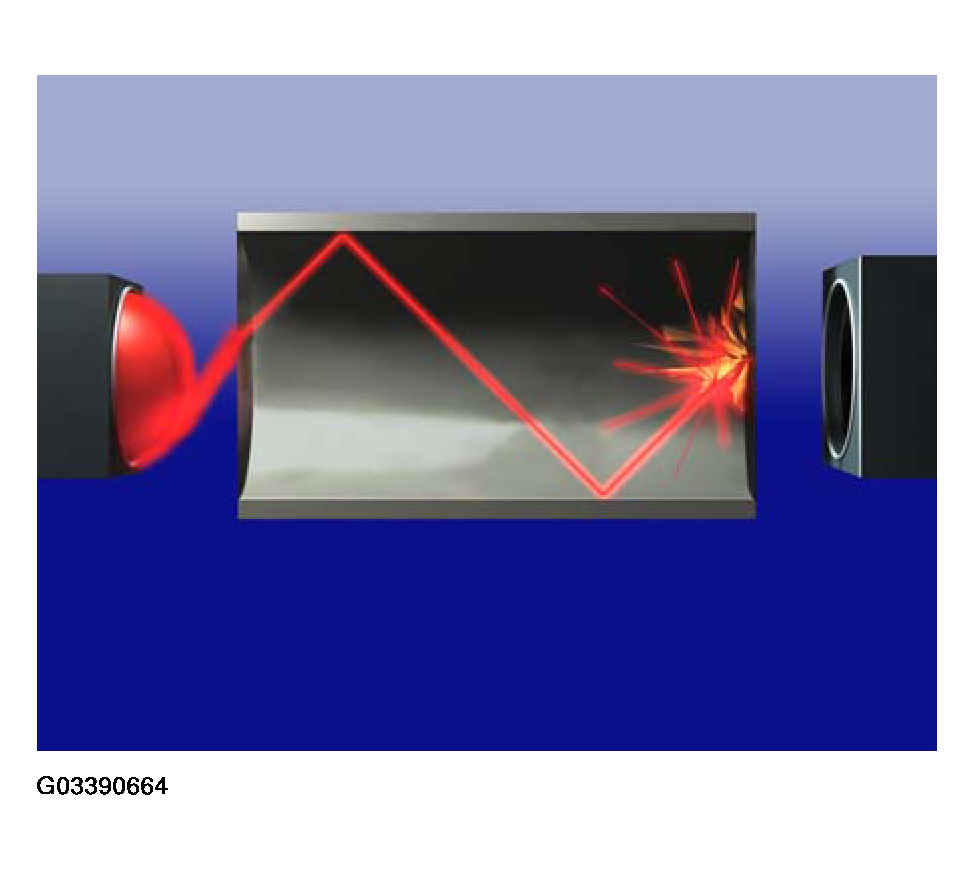

Fig 1: Identifying Types Of Cable Failure (Dirty Or Scratched Fiber Optic Cable Ends)

Courtesy of BMW OF NORTH AMERICA, INC.

Another potential source of problems is dirty or scratched cable ends. Although the ends of the cables are protected against accidental contact, damage can still occur by incorrect handling.

Dirt on the end of an optical fiber will prevent light from exiting/entering. The dirt absorbs the light and increases attenuation.
