Compression Points

WARNING: This page does not describe the selected car, but rather 59 other vehicles, including the 2009 BMW M5, 2009 BMW 650i, 2009 BMW 550i, 2008 BMW M5, and 2008 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

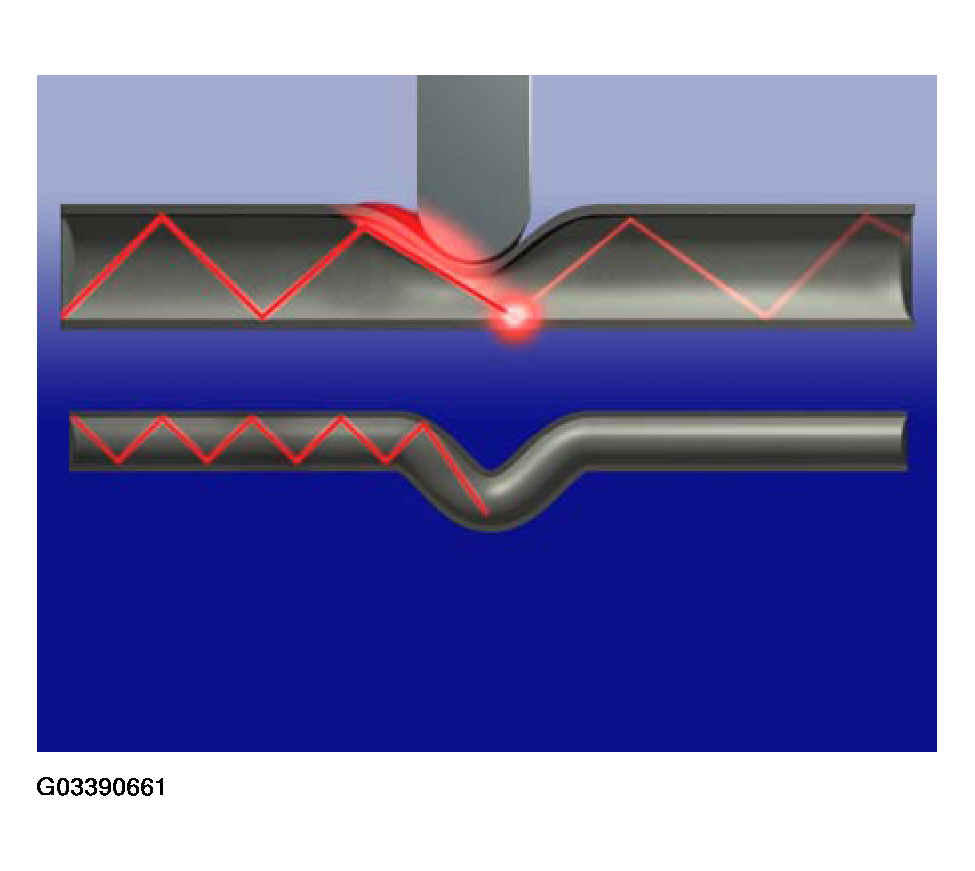

Fig 1: Identifying Types Of Cable Failure (Compression Points)

Courtesy of BMW OF NORTH AMERICA, INC.

Compression points must also be avoided because they can permanently deform the light conducting cross section of the optical fiber. This would cause a loss of light.
