Abrasion Points

WARNING: This page does not describe the selected car, but rather 59 other vehicles, including the 2009 BMW M5, 2009 BMW 650i, 2009 BMW 550i, 2008 BMW M5, and 2008 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

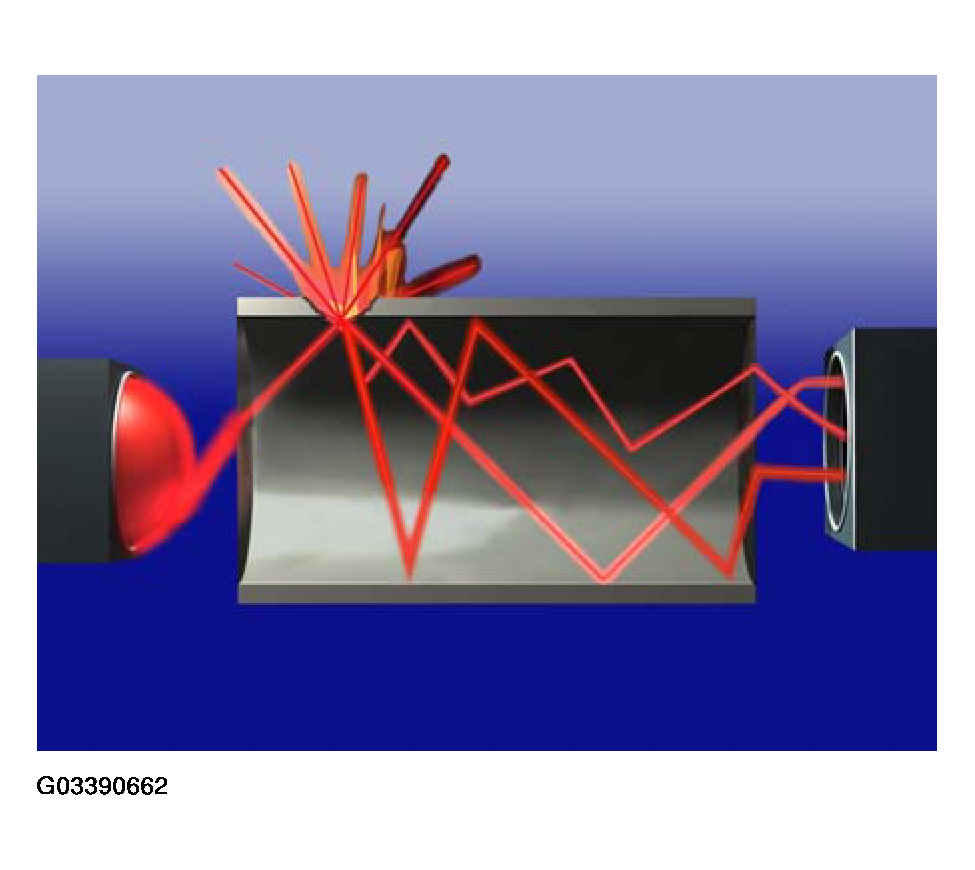

Fig 1: Identifying Types Of Cable Failure (Abrasion Points)
G03390662Courtesy of BMW OF NORTH AMERICA, INC.

In comparison with copper wires, abrasion of fiber optic cables does not cause a short circuit.

Instead, loss of external light occurs. The system then suffers interference or fails completely.
