35 21 000 Removing and installing/replacing brake pedal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove storage compartment. Refer to 51 16 392 REMOVING AND INSTALLING/REPLACING STORAGE COMPARTMENT IN INSTRUMENT PANEL TRIM (DRIVER'S SIDE) .

The brake light switch must be modified when the brake pedal is replaced. Refer to 61 31 310 REPLACING BRAKE-LIGHT SWITCH .

Disconnect return spring.

Remove locking clip (1) and pull out pin (2).

Installation:

Make sure locking clip (1) is correctly seated.

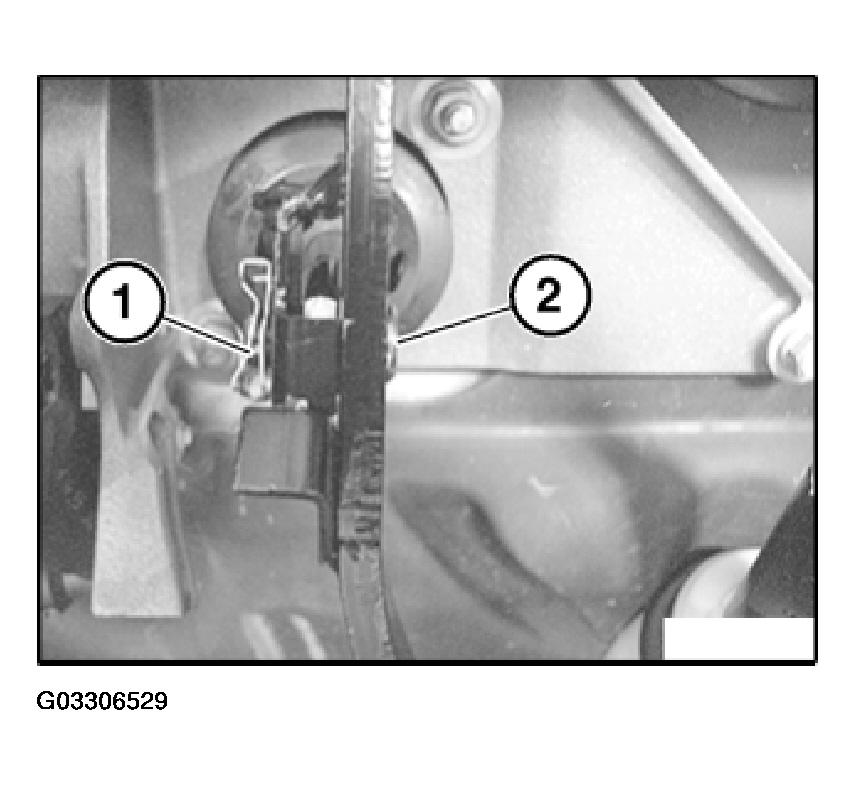

Fig 1: View Of Locking Clip And Pin

G03306529

Courtesy of BMW OF NORTH AMERICA, INC.

Remove locking clip (1).

Pull bearing bush (2) out of brake pedal.

Remove brake pedal in direction of arrow downwards from bearing block.

Installation:

Make sure locking clip (1) is correctly seated.

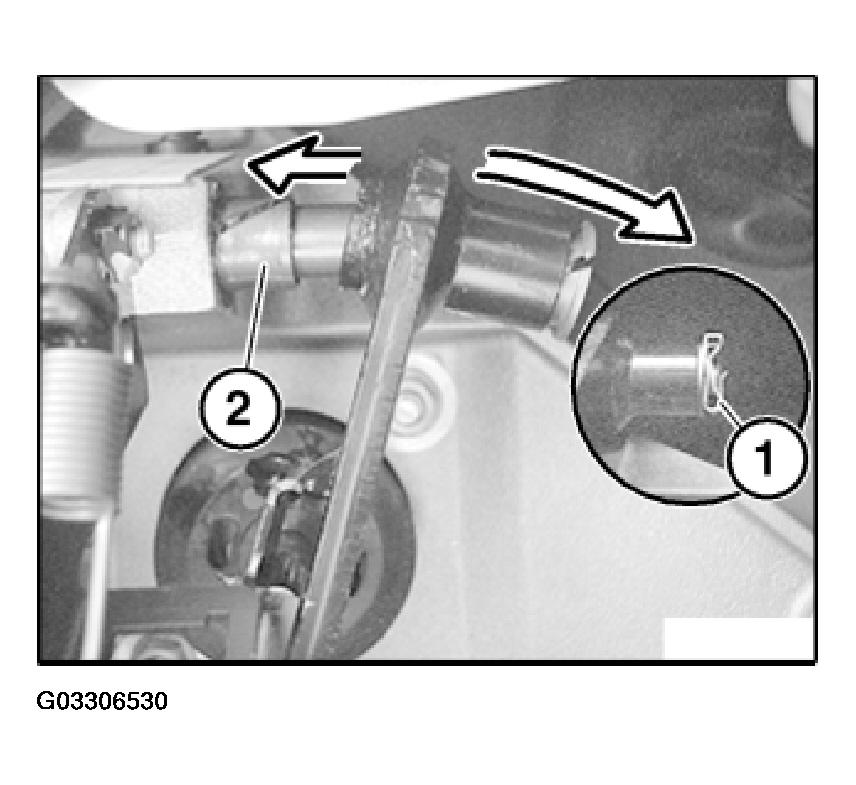

Fig 2: Identifying Locking Pin For Bearing Bush

G03306530

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check bearing bushes (1) and replace if necessary.

Lightly grease bearing bush (1).

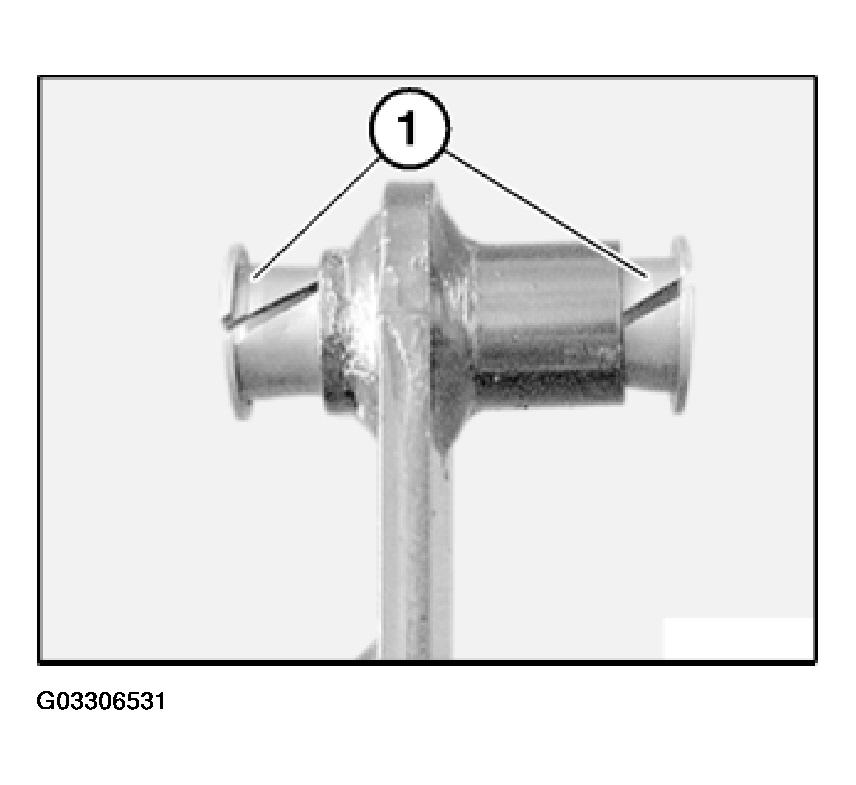

Fig 3: View Of Bearing Bush

G03306531

Courtesy of BMW OF NORTH AMERICA, INC.
