41 11 300 Replacing Entrance With Door Post, Left And Right (Partial Replacement, B-Pillar): Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Observe procedure for REPAIR STAGE 3 .
Read relevant service information under BODY .
Spot-weld bonding is used on this vehicle. Observe specific procedure. See SPOT-WELD BONDING STEEL COMPONENTS and OPENING ADHESIVE BONDS .
Use only an approved SPOT-WELDING APPARATUS for repairs!
Place vehicle on straightening bench.
The following new body parts are required (see BMW Electronic Parts Catalogue):

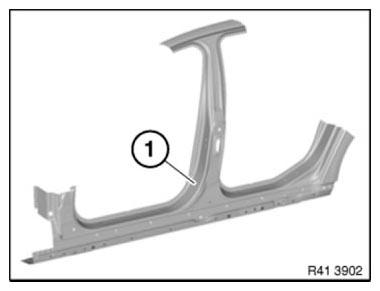

- (1) B-pillar with entrance
- (2) ADHESIVE K1 (not shown)
- (3) Blind rivets N1 (3 pieces)
