41 11 095 Replacing Left Engine Support In Front Of Wheel Arch

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Follow procedure for REPAIR STAGE 3 .

Read relevant service information under BODY .

Use only APPROVED SPOT-WELDING APPARATUS for repairs.

Place vehicle on straightening bench.

Necessary preliminary work:

REMOVE CARRIER SUPPORT

The following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):

(1) Engine support, front

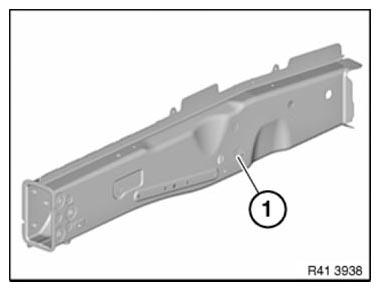

Fig 1: Identifying Engine Support
Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut in accordance with Dimension a and cut.

Dimension a=40 mm before wheel arch edge.

Remove section of engine support.

Installation note:

Mark severance cut on new part in accordance with vehicle and cut.

Adjust new part to fit with alignment bracket or universal mount.

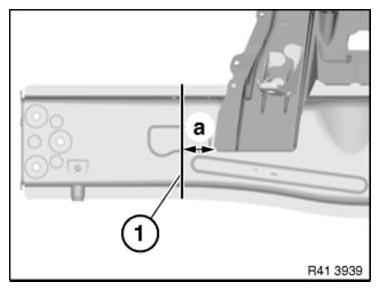

Fig 2: Identifying Section Of Engine Support
Courtesy of BMW OF NORTH AMERICA, INC.

Weld in REINFORCEMENT PLATE at severance cut.
