41 35 101 Replacing Rear Left Side Panel: Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
STRIP DOWN vehicle.
Observe REPAIR STAGE 2 procedure!
Read relevant service information under BODY .
The following new body parts are required (refer to BMW Electronic Parts Catalogue):

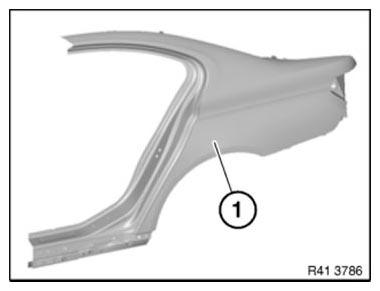

- (1) Side frame, rear
- Reinforcement plate, side sill
- Reinforcement plate, C-pillar
- Mounting nuts
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K5b | 1 |
| Adhesive K5a | 1 |
| Blind rivets N3 | 14 |
| Punch rivets N4 | 23 |
| Punch rivets N5 | 4 |
| EMC screws | 3 |
| Cleaning agent R1 | 1 |
| Cavity sealing wax remover | 1 |
| Sealant D1 |
