51 24 325 Removing And Installing Or Replacing Left Tension Spring For Rear Lid

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT WHEEL ARCH PANEL on left

WARNING: Support tailgate in fully opened position with suitable apparatus. Danger of injury!

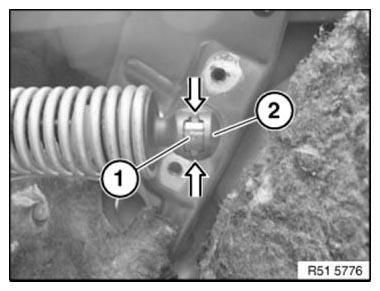

Press retainer (1) together.

Ball socket (2) jumps out of ball stud.

WARNING: The tailgate will drop down if it is not supported.

Fig 1: Pressing Left Tension Spring Retainer

G08471578

Courtesy of BMW OF NORTH AMERICA, INC.

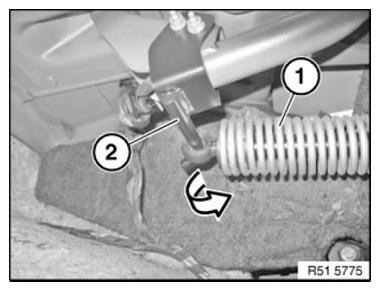

Unhook tension spring with damper (1) from tailgate hinge (2).

Fig 2: Removing Tension Spring With Damper From Tailgate Hinge

G08471579

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If the removed tension spring (1) is going to be installed again, the tension spring (1) may need to be bent into its original condition by hand.

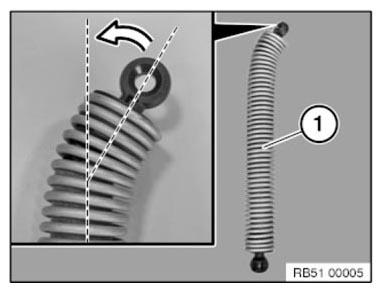

Fig 3: Identifying Tension Spring Bent And Original Condition

G08471580

Courtesy of BMW OF NORTH AMERICA, INC.

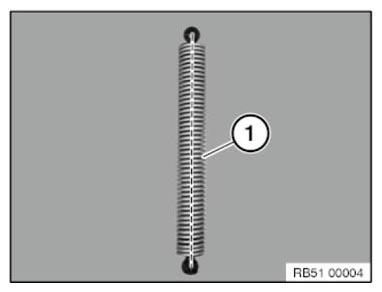

Picture shows tension spring (1) in original condition.

Fig 4: Identifying Tension Spring In Original Condition

G08471581

Courtesy of BMW OF NORTH AMERICA, INC.
