41 61 060 Removing And Installing Or Replacing Left Hinge For Engine Compartment Lid (Vehicles From 09/2011)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Support engine compartment lid in fully opened position with suitable apparatus. Risk of injury.

IMPORTANT: Observe separate procedure for vehicles with ACTIVE PEDESTRIAN PROTECTION .

Necessary preliminary work:

Remove GAS PROP for engine compartment lid

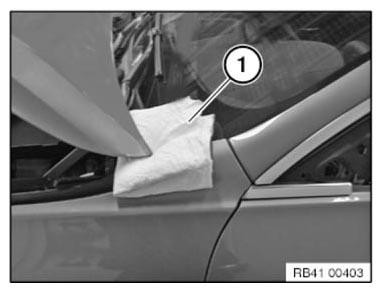

Position suitable cloth under engine compartment lid without gaps.

Fig 1: Identifying Cloth Position In Engine Compartment Lid

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: After screws have been slackened no lateral forces must be exerted on the engine compartment lid!
Secure engine compartment lid with a second person.

Release screws (1).

Tightening torque: see 1AZ in 41 61 ENGINE COMPARTMENT LID

Fig 2: Identifying Engine Compartment Hinge Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove hinge.

Tightening torque: see 3AZ in 41 61 ENGINE COMPARTMENT LID

Installation note:

ADJUST hinge together with engine compartment lid.

Fig 3: Identifying Hinge And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
