41..... Filling Bulkhead Cross Member With Foam
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
For acoustic insulation reasons insulating foam is applied to the finish-painted bodyshell in the bulkhead cross member area.
A 2-component PU cavity foam is used.
Sourcing reference for cavity foam, refer to BMW Parts Department.
Observe SAFETY AND APPLICATION INSTRUCTIONS .

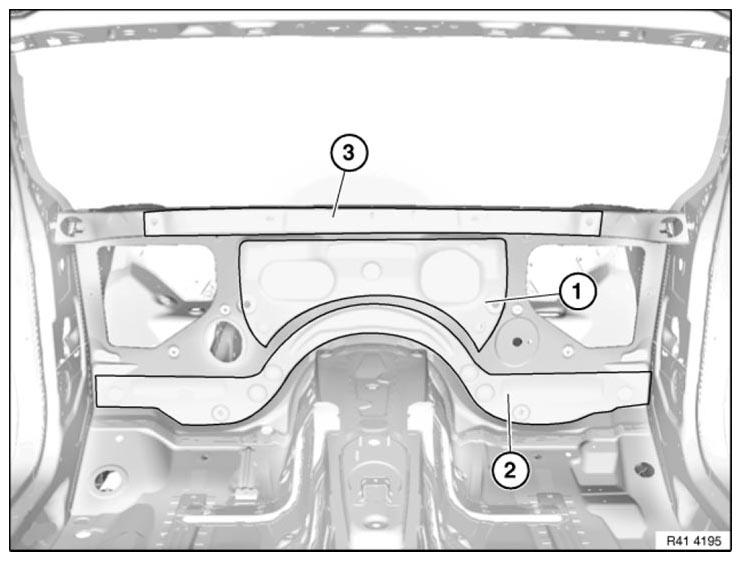

Remove seal plugs of cavities 1 to 3 and fill cavities with foam.
In so doing, insert spray pipe into bores and slowly pull out during the spraying operation.
To perform the operation, it may be necessary to lengthen the spray pipe.
IMPORTANT:
Empty the can within 8 minutes.
Follow manufacturer's safety instructions.
