34 52 535 Replacing a rear pulse sensor

Necessary preliminary tasks

Release cable from retaining clip on rear axle support (1).

Disengage cable from holder (1) at shock absorber.

Release screw (2) and remove pulse sensor (3).

Installation:

Tightening torque 34 51 4AZ .

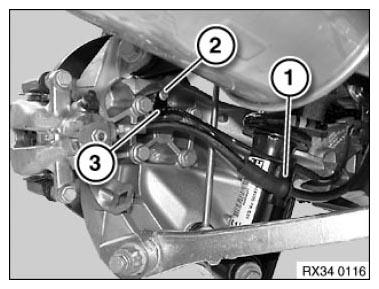

Fig 1: Identifying Pulse Sensor With Screw And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Clean bore hole for pulse sensor and grease with Staburags NBU 12/K lubricating grease.

Unclip cable from retainers (1).

Disconnect plug connection (2).

Installation:

Make sure plug connection engages correctly.

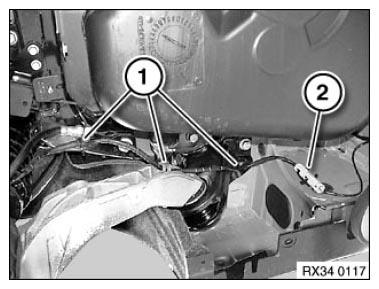

Fig 2: Identifying Plug Connection And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.
