Removal & Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Remove lower section of steering spindle. Remove sleeve from vehicle interior outwards. See Fig 1 .

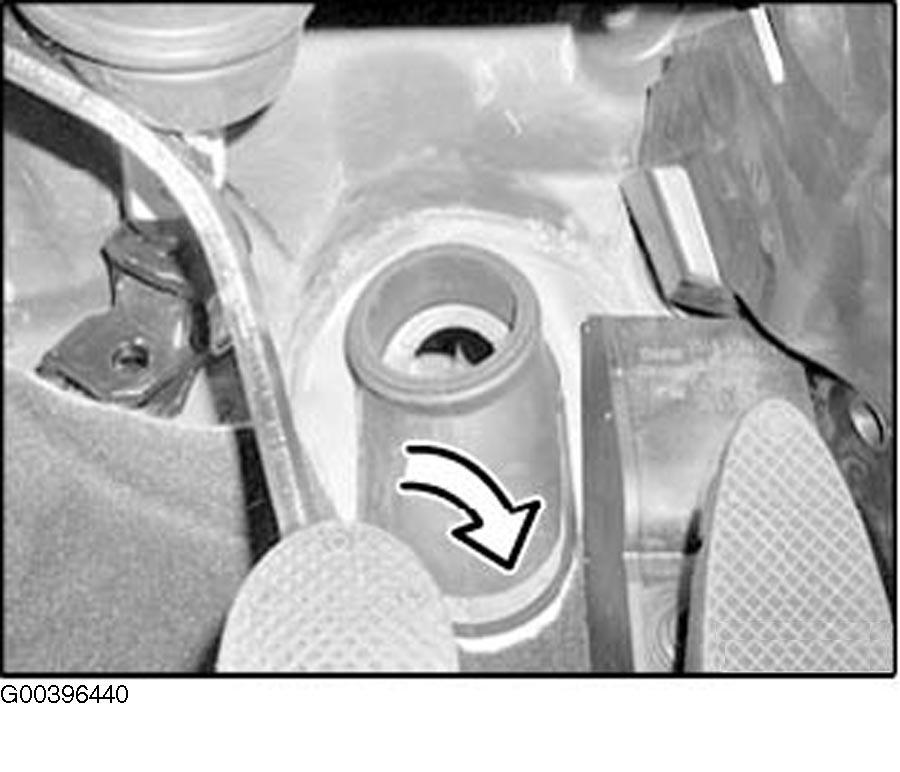

Fig 1: Removing Sleeve
G00396440Courtesy of BMW OF NORTH AMERICA, INC.

Install sleeve from engine compartment side and make sure sleeve (1) is correctly seated in bulkhead. See Fig 2 .

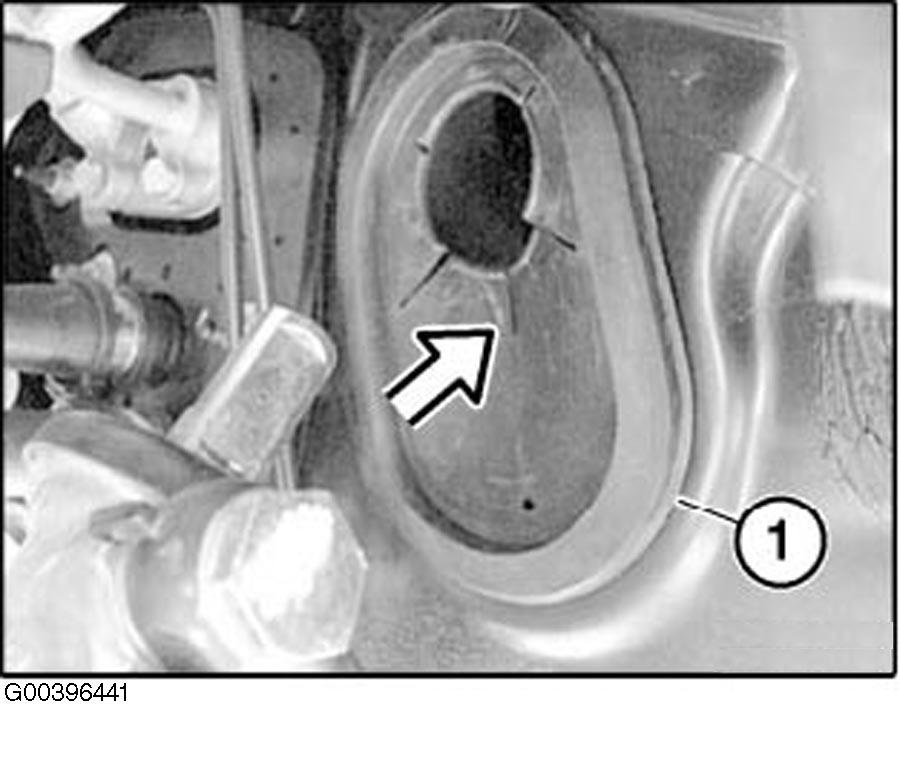

Fig 2: Ensuring Sleeve Is Seated
G00396441Courtesy of BMW OF NORTH AMERICA, INC.
