34 52 535 Replacing A Rear Pulse Sensor

Necessary preliminary tasks:

Release cable from retaining clip on rear axle carrier (1).

Disengage cable from holder (1) at shock absorber.

Release screw (2) and remove pulse generator (3).

Installation:

Tightening torque 34 51 4AZ

Clean bore hole for pulse generator and grease with Staburags NBU 12/K lubricating grease.

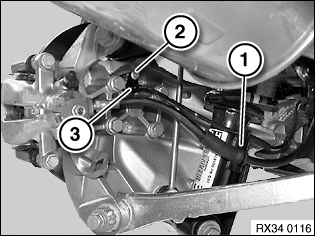

Fig 1: Locating Bore Hole

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip cable from retainers (1).

Disconnect plug connection (2).

Installation:

Make sure plug connection engages correctly.

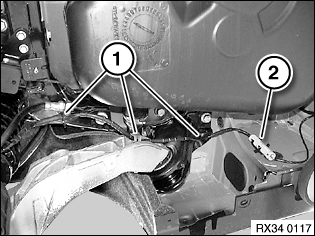

Fig 2: Identifying Retaining Clips And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
