31 33 095 Measuring Ride-Level Height Of Vehicle
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Numbers and letters in text refer to numbers and letters in figures.
- Ensure vehicle is on ground and in normal loaded position with 150 lbs. (68 kg) in each front seat. Place seats in central position. Load 31 lbs. (14 kg) in the luggage area and ensure a full tank of fuel.

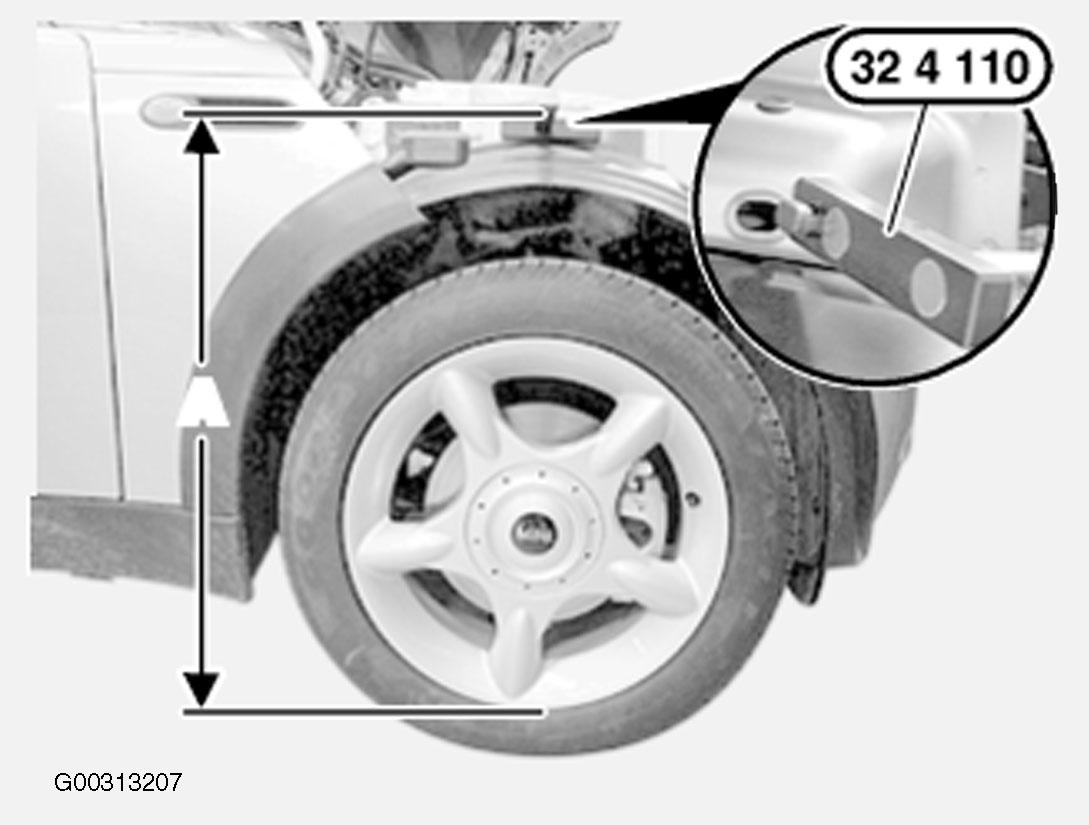

- Determine actual ride-level height (A) by measuring from lower edge of Special Tool (32 4 110) to rim flange at wheel center. See Fig 1. If determined value deviates from specified target value: see RIDE HEIGHT SPECIFICATIONS .
RIDE HEIGHT SPECIFICATIONS
| Application | ||
|---|---|---|
| Tolerance ride height in normal position max +/- 10 mm in design position max +/- 2 mm |
||
| Difference ride height between left/right in - normal position 10 mm in design position 2 mm |
||
| Front Axle - Ride Height R50 Series | ||
| 15" Rim | 665 | |
| 16" Rim | 678 | |
| 17" Rim | 693 | |
| 18" Rim | 705 | |
| Front Axle - Ride Height R50 Sport Suspension and R50/R53 Sports Suspension Plus | ||
| 15" Rim | 658 | |
| 16" Rim | 671 | |
| 17" Rim | 686 | |
| 18" Rim | 698 | |
| John Cooper Works Sport Suspension | ||
| 15" Rim | 649 | |
| 16" Rim | 662 | |
| 17" Rim | 677 | |
| 18" Rim | 690 | |
