31 35 005 Removing And Installing/Replacing Push Rod (Stabilizer Link) For Left/Right Stabilizer

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove wheel. Refer to WHEEL AND TIRES - REPAIR INSTRUCTIONS - COOPER .

Release nut (1), gripping with Allen key or open-end wrench.

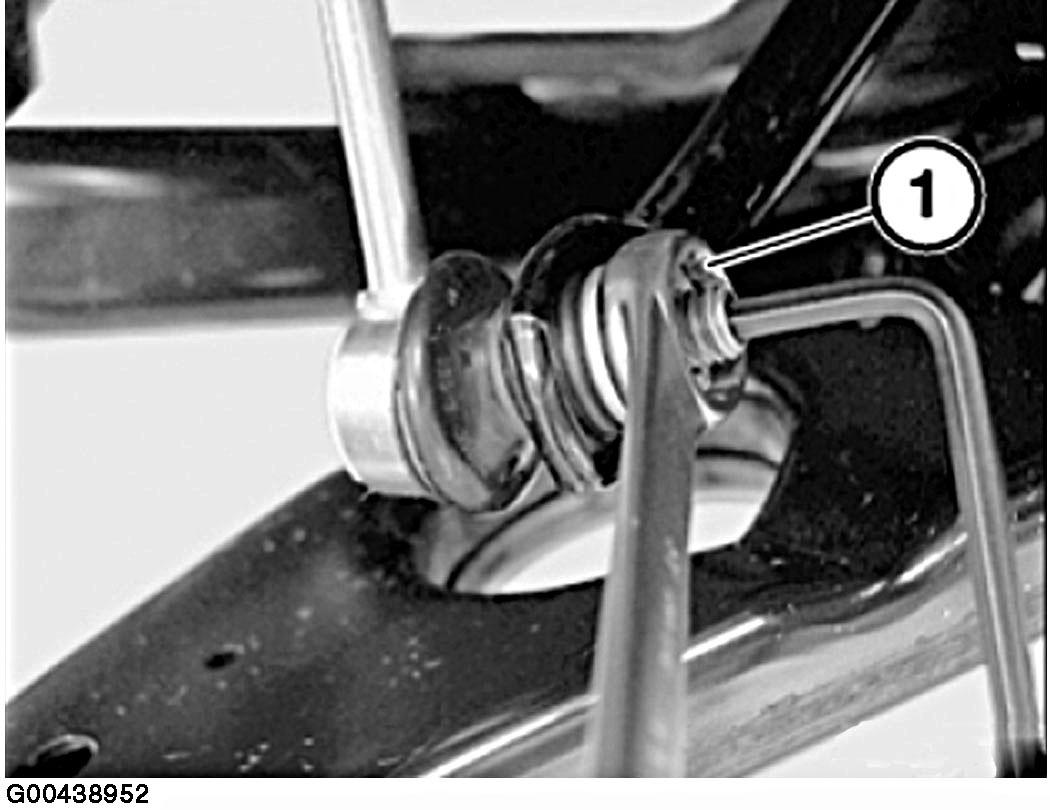

Fig 1: Releasing Nut

G00438952

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace self-locking nut. Tightening torque 56 Nm.

Cars up to 03/2002

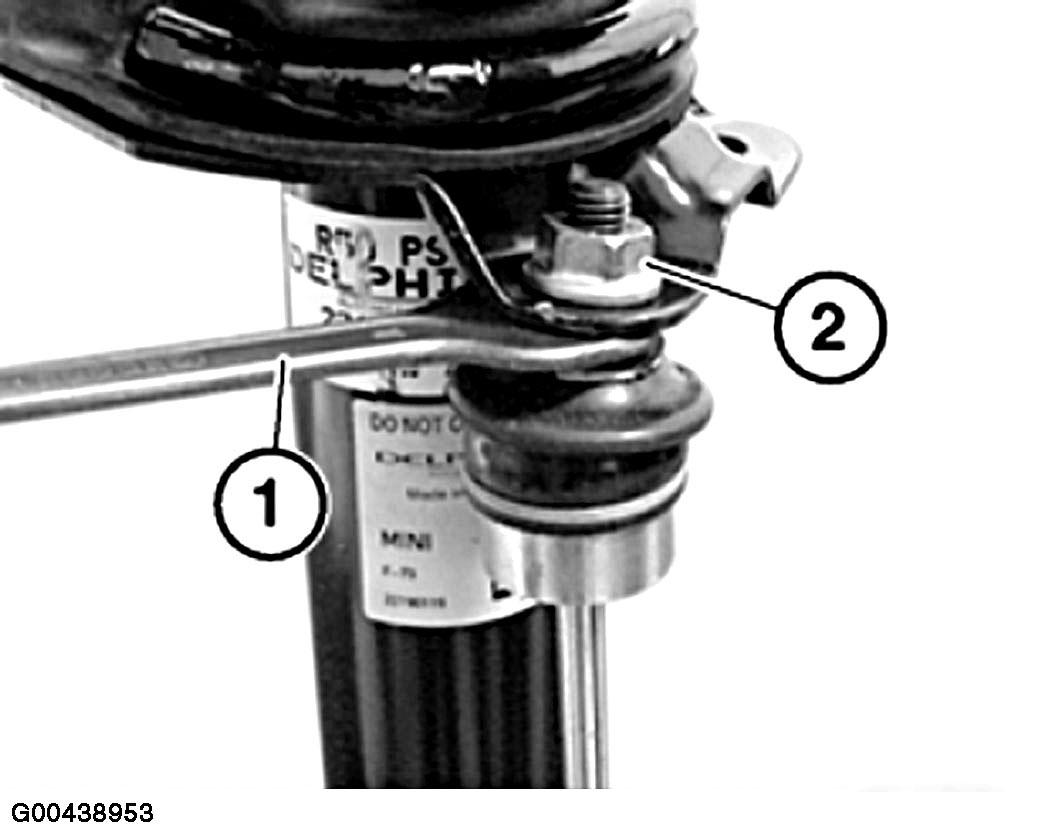

Fig 2: Locating Nut

G00438953

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (2), gripping with Allen key or open-end wrench (1).

Installation:

Replace self-locking nut. Tightening torque 56 Nm.

Cars from 03/2002

Release nut (2), gripping with Allen key or open-end wrench (1).

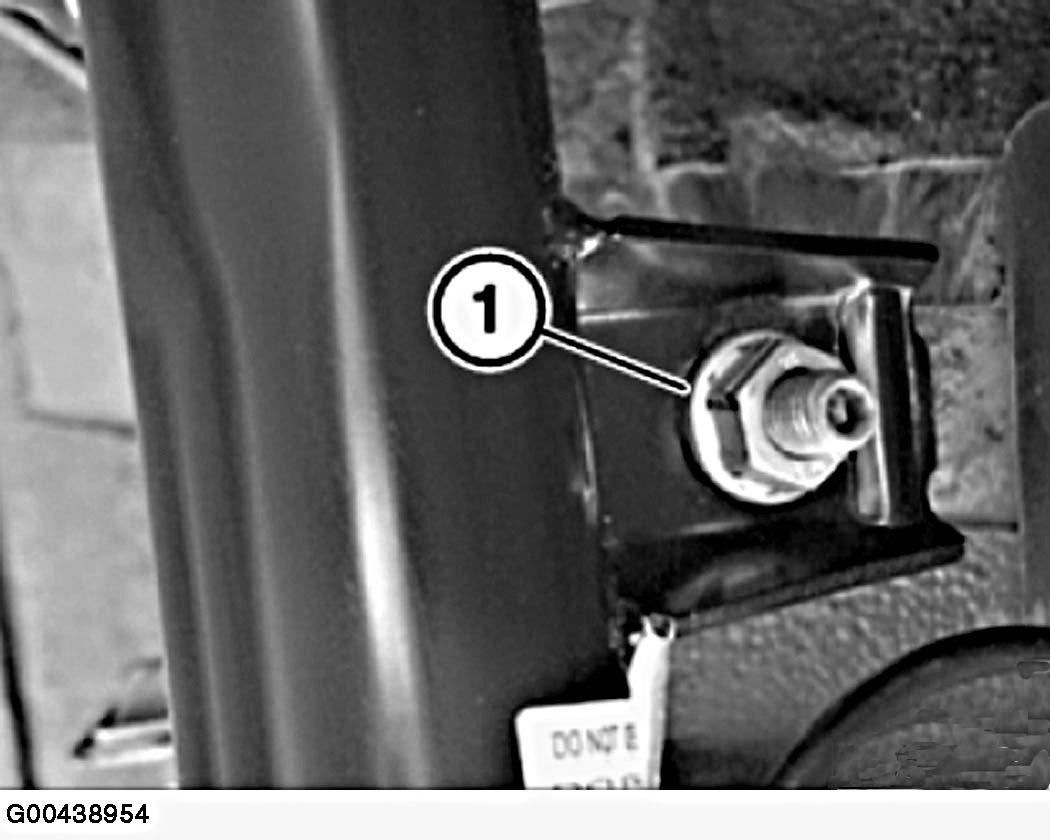

Fig 3: Releasing Nut

G00438954

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace self-locking nut. Tightening torque 56 Nm.
