41 11 091 Replacing Left Engine Support In Front Of Bulkhead: Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Observe procedure of REPAIR STAGE 3 .
Read relevant service information under BODY .
Steel-aluminium composite construction is used on the vehicle.
Observe specific PROCEDURE .
Use only approved SPOT-WELDING APPARATUS for repairs.
Place vehicle on straightening bench.

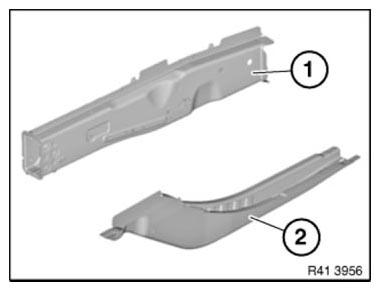

The following new body parts are required (see ELECTRONIC PARTS CATALOGUE ):
- (1) Engine support
- (2) Engine support, rear
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K1 | 1 |
| Blind rivets N2 | 19 |
| Cleaning agent R1 | 1 |
| Cavity sealing wax remover | 1 |
| Sealant D1 |
