41 00... Carrying Over Hole Pattern

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

When replacing a body component, it is necessary to carry over the hole pattern from the existing body to the new component.

The following pictures are a schematic representation of carrying over the hole pattern on the example of the front wheel arch.

Necessary preliminary tasks:

Adjust new part to fit with straightening attachment.

Insert paper stencil (1) between new component (2) and engine carrier and secure with adhesive tape (3).

Carry over contour (4) of new component to stencil.

Remove new component.

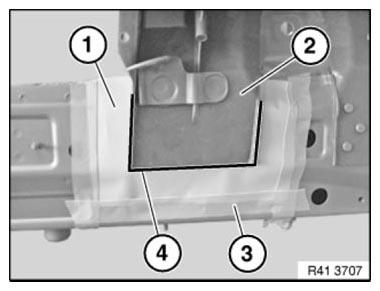

Fig 1: Identifying Paper Stencil, Component, Adhesive Tape And Contour
G08471071Courtesy of BMW OF NORTH AMERICA, INC.
  1. = contour of new component.

Carry over positions of holes (2) to stencil by pressing down with thumbs.

Remove stencil.

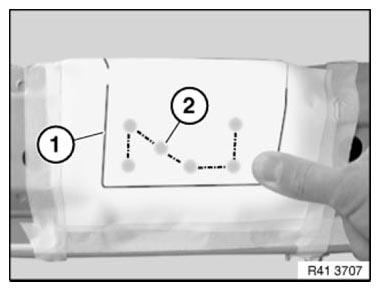

Fig 2: Identifying Contour Of Component And Positions Of Holes
G08471072Courtesy of BMW OF NORTH AMERICA, INC.

Lay stencil (1) on a flat surface.

Mark center points of holes with crosses (2).

Then pierce paper through center points (3) of holes with a pointed object.

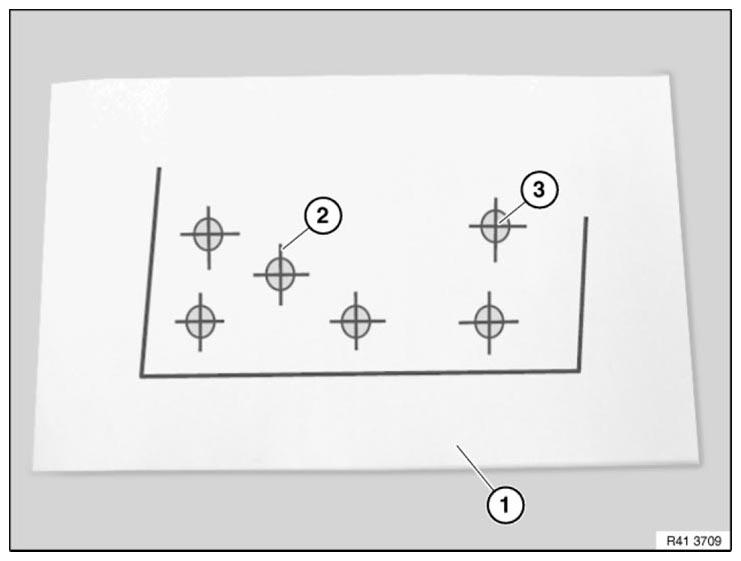

Fig 3: Identifying Stencil, Holes Crosses And Center Points
G08471073Courtesy of BMW OF NORTH AMERICA, INC.

Align stencil (1) according to contours (2) to inside of new component and secure with adhesive tape (3).

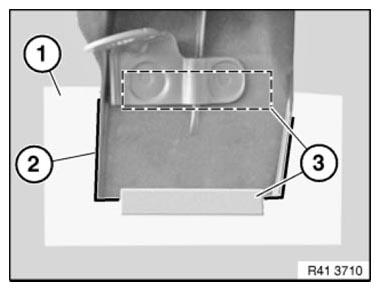

Fig 4: Identifying Stencil, Contours And Adhesive Tape
G08471074Courtesy of BMW OF NORTH AMERICA, INC.

Turn over new component.

IMPORTANT: Crosses must not be visible in this view!

Set punch marks at pierced center points (1).

Grip directly under punch marks for marking with punch.

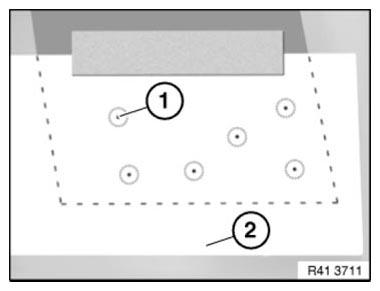

Fig 5: Identifying Center Points And Stencil
G08471075Courtesy of BMW OF NORTH AMERICA, INC.

Remove stencil (2).

Drill holes to approx. +3 - 4 mm dia. at punch marks (1).

Position new component (1) with straightening attachment on vehicle.

Drill out holes (2) to 6.7 mm dia.

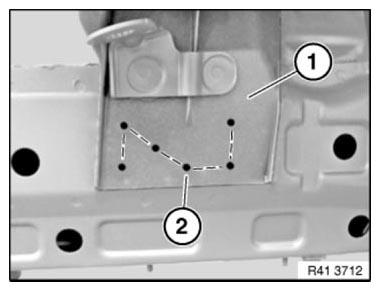

Fig 6: Identifying Punch Marks And Holes
G08471076Courtesy of BMW OF NORTH AMERICA, INC.
