Removal & Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Draw hydraulic fluid out of tank. Do not reuse. After completing tasks, bleed power steering system. See BLEEDING . Release screw (1) and disconnect line. Replace seal. Seal off line and catch escaping hydraulic fluid in a suitable container.

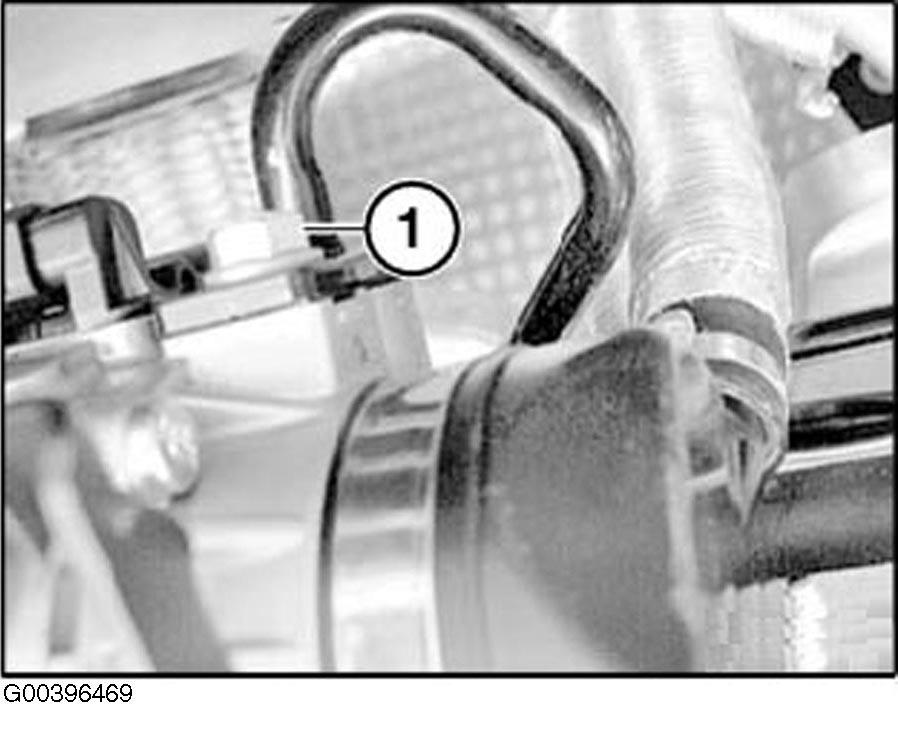

Fig 1: Releasing Screw & Disconnecting Line

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

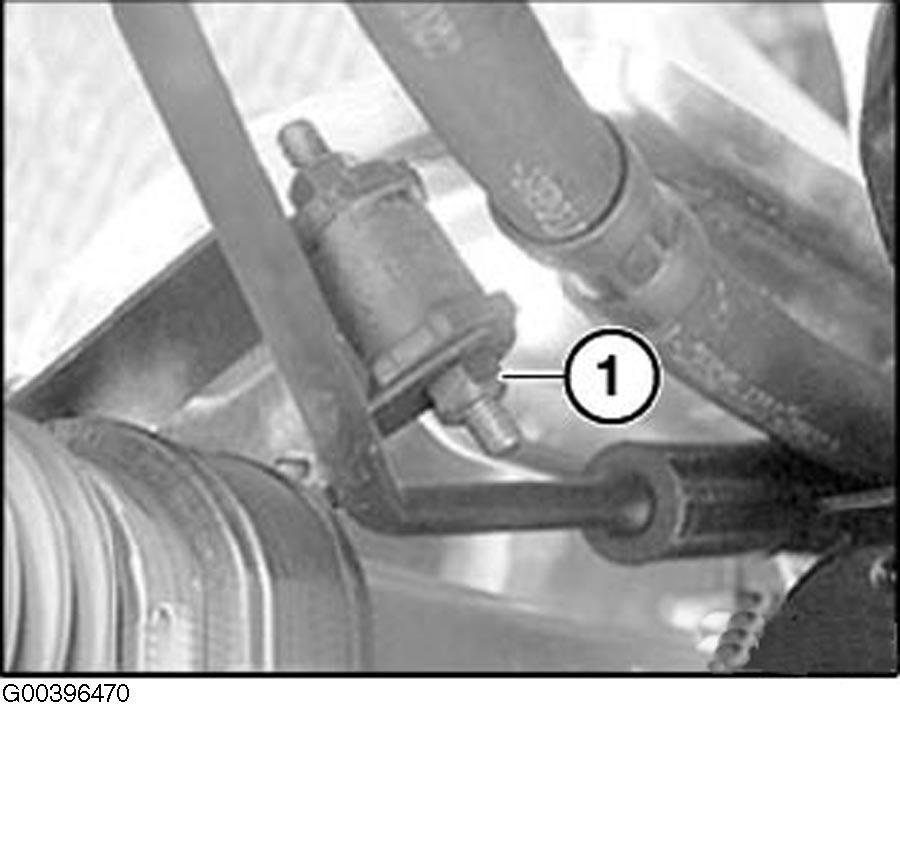

Fig 2: Slackening Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release return line (1) so that pressure line (2) can be released and removed. See Fig 3 . Replace sealing rings.

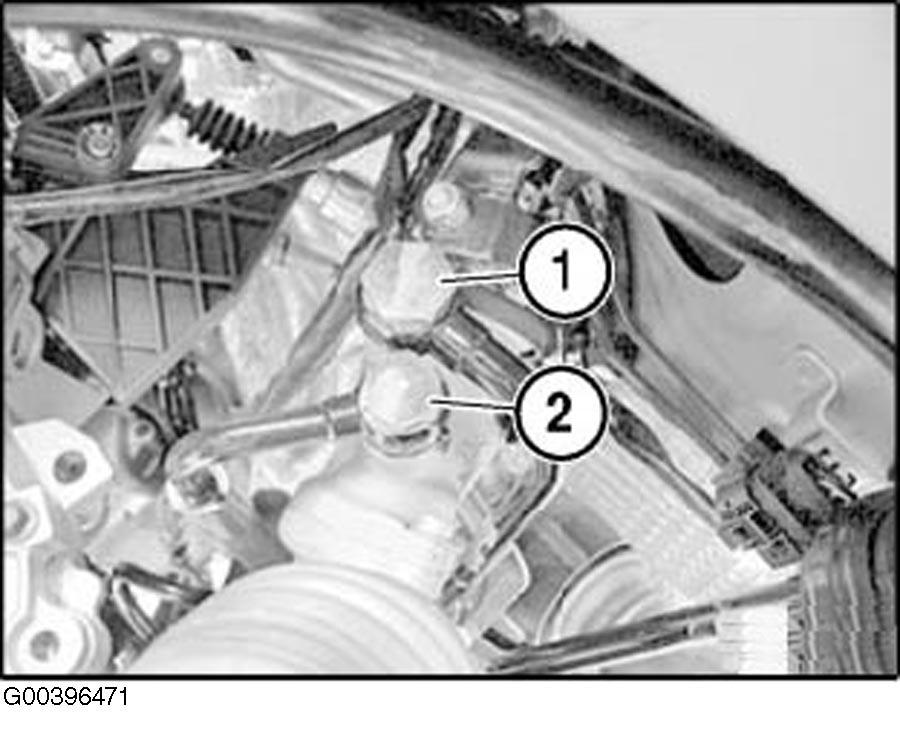

Fig 3: Identifying Return & Pressure Lines

Courtesy of BMW OF NORTH AMERICA, INC.
