63 12 895 Replacing Electronics Box/Control Unit For Left Adaptive Headlight

WARNING: Version with xenon headlights: Danger to life due to high voltage! Therefore, before removing, disconnect all components from the power supply (lighting system and ignition off).

Work on the entire xenon lighting system (ignition unit, control unit and lamp) may only be carried out by specialist personnel.

IMPORTANT: Read and comply with Notes On Protection Against Electrostatic Damage (ESD Protection). .

Necessary preliminary tasks:

Remove HEADLIGHT

Release screws (1) and remove protective cap (2) from headlight (3).

Electronics box/control unit is locked in protective cap (2).

Tightening torque 63 12 4AZ .

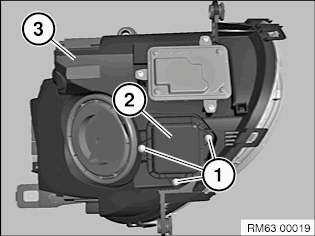

Fig 1: Identifying Headlight, Screws, And Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure electronics box/control unit (1) is correctly seated in protective cap.

Pin housing (2) and gasket (3) must not be damaged.

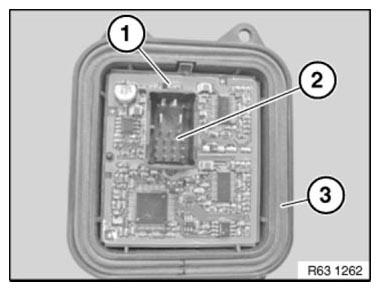

Fig 2: Identifying Electronics Box/Control Unit, Pin Housing, And Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Carry out VEHICLE PROGRAMMING/ENCODING
