Wiring Diagrams

WARNING: This page is about a different car, the 2004 BMW 545i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

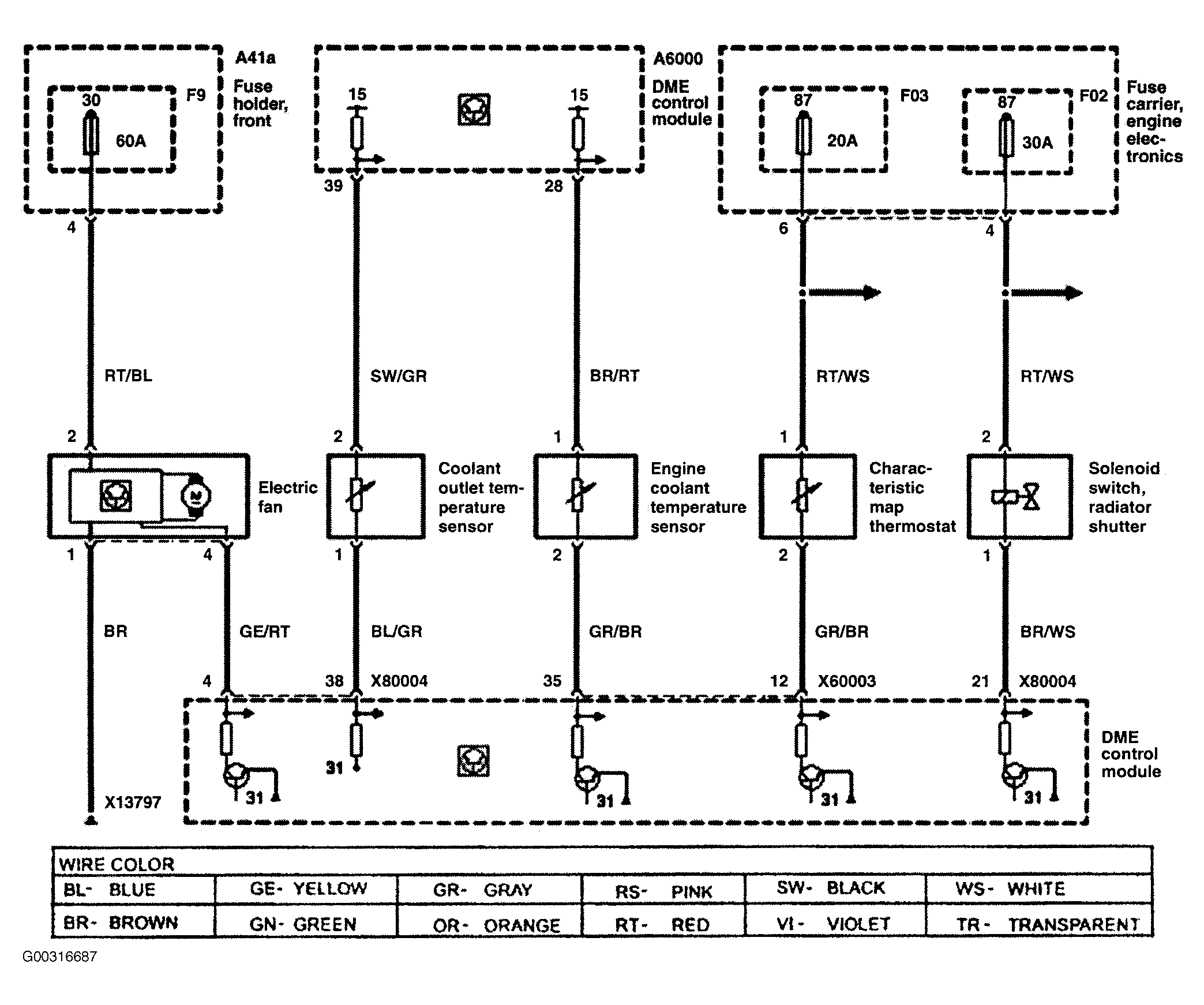

Fig 1: Cooling Fan Wiring Diagram

Courtesy of BMW OF NORTH AMERICA, INC.
